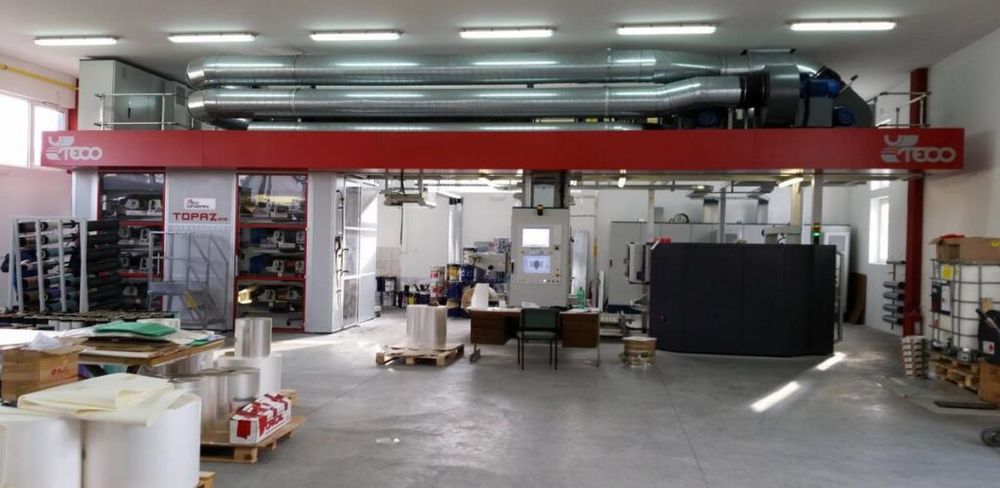

Uteco Topaz 8 600 mm

Number of printing units: 8
Maximum web width: 650 mm
Maximum printing width: 600 mm
Minimum printing repeat: 290 mm
Maximum printing repeat: 800 mm
Maximum speed: 300 m/min
Drying system: Gas
Unwinding: Double
Maximum reel diameter – unwinding: 800 mm
Rewinding: Automatic
Maximum reel diameter – rewinding: 800 mm
Plate Thickness: Sticky back included, 1.14 mm
Gear Pitch: 5 / 10 mm, Servo
Rewinder & Unwinder Type:

Rewinder: Automatic
Unwinder: Manual

Availability of Web Guides: BTS
Corona Treater: None
Doctor Blades Quantity: 8 + 1L + 1R
Ink Pumps Quantity: Type Quantity 16, type SMC mechanic
Video System: Grafikontrol – Grafiksan 2100
Type of Length Register: Grafikontrol – Click and drag
Type of Side Register: Grafikontrol – Click and drag
Availability of Chiller: Yes – Industrial Frigo GTA 30/12/Z/X
Electric Power / Specifications: Supply voltage at client 400 V ±5%
Additional Possibilities and Spare Parts: In attachment by name
Availability of Technical Documentation: Complete technical documentation
Condition of the Machine: In production (working)

Anilox rollers (sleeves):
Anilox Zeher – total 11 pieces:
1×400/3.5; 2×400/3.6; 1×400/3.8; 1×100/14.1; 1×160/14.0;
HIT gravure; 1×200/8.6; 2×160/10.0; 1×180/12.0; 1×340/4.4

Printing cylinders (sleeves):
Rossini sleeves – total 144 pieces:
8×300, 8×320, 8×330, 8×340, 8×350, 8×360, 8×380, 8×400,
8×420, 8×460, 8×500, 8×510, 8×530, 8×560, 8×570, 8×590, 8×660, 8×780 mm
