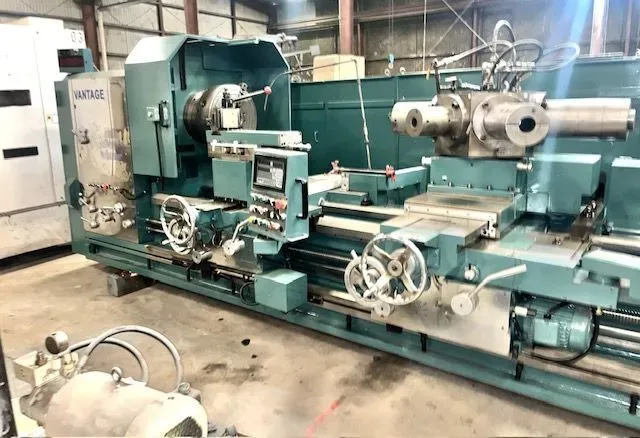

Vantage Engine Lathe 700 RPM PB-50-5A

Swing over bed: 50"
Swing over cross slide: 37"
Distance between centers: 152"
Spindle bore: 9.05"
Spindle speed: 0–700 RPM
Main motor: 50 HP
Spindle nose: A2-15
Weight capacity between centers: 9,600 lbs
6-way rapid traverse and feeds
6-station hydraulic hex turret
Hydraulic bi-directional turret indexing
Heavy-duty square cross slide ways
Maximum boring diameter through turret: 6"
Hex turret size: 20" side-to-side
Hex turret thickness: 10"
Boring bar holders: 2 × 6"
Boring bar holders: 2 × 4"
Boring bar holders: 2 × 2"
Hydraulic cable track
Bed width: 28"
Bed height: 26"
Machine weight: 37,900 lbs
4-range variable spindle speed
Power air gear shifting
Headstock oil lubrication with electric pump
Hardened and ground bed ways
Hardened and ground cross slide ways
Automatic way lubrication
Adjustable timer lubrication pump
8" × 8" indexing tool compound
Rear spindle adapter plate
Automatic lubrication system
Front and rear chuck guards
Constant surface feed on both carriages
Thread chasing dial
Low-voltage control
Coolant system on both carriages
Halogen work light
Tool box
