1/1

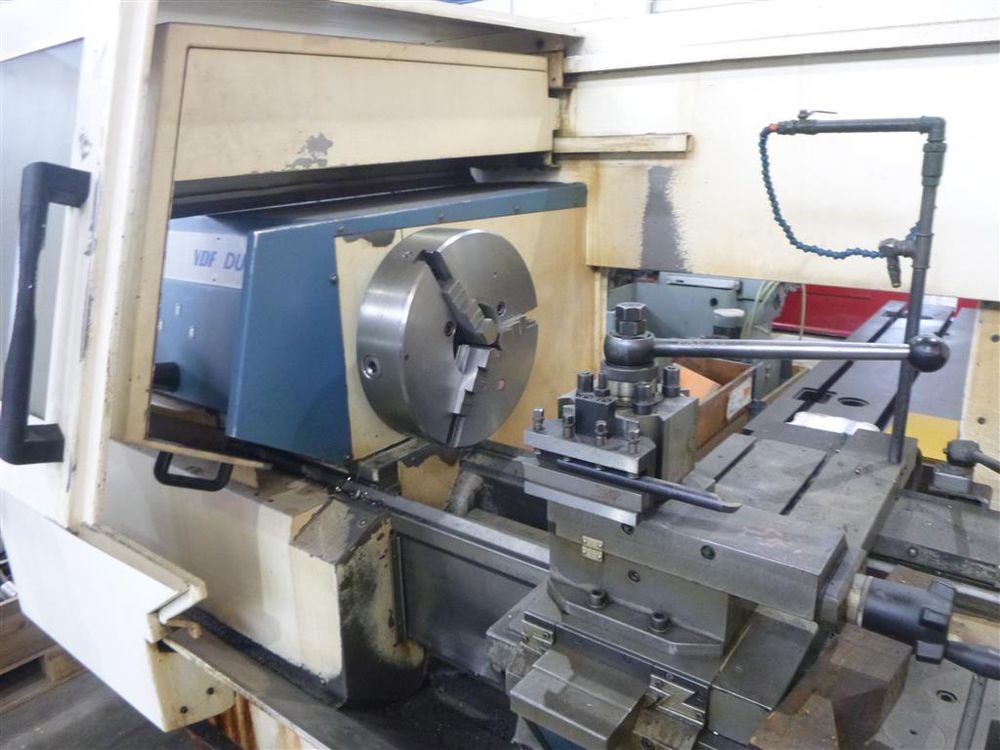

VDF Boehringer Engine Lathe 2,500 U/min DUS 560
Ref :
2740022-3-AW
Condition :
Used
Manufacturer :
VDF Boehringer
Type :
Engine Lathe
Spindle Speed :
2,500 U/min
Model :
DUS 560
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Turning Diameter Over Bed: 570 mm
Turning Diameter Over Support: 365 mm
Turning Length: 1,250 mm
Center Height Measured in Bed: 280 mm
Centre Distance: 1,500 mm
Revolution per Minute: 3 - 2,500 U/min
Tailstock Taper MT: MT 5
Spindle Bore of Work Spindle: 62 mm
Quill Stroke: 190 mm
Longitudinal Feeds: 0.001-10 mm/rev adjustable
Cross Feed: 0.001-5 mm/rev adjustable
Rapid Feed X Axis: up to 5,000 mm/min
Total Power Requirement: 40 KVA
Machine Weight: 5,600 kg
Machine Dimensions LxWxH: 4,000 x 2,000 x 1,900 mm
