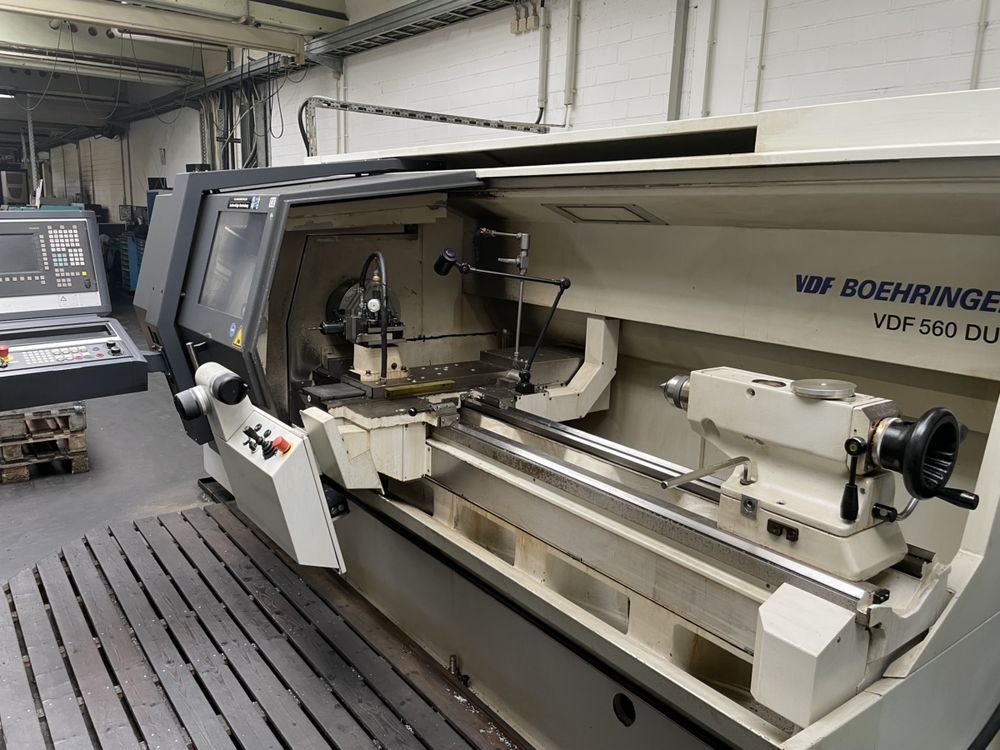

VDF Boehringer Sinumerik 840D SL 2500 rpm DUS 560 TI / 1500 2 Axis
Ref :
2783674-3-AW
Condition :
Used
Manufacturer :
VDF Boehringer
Controller :
Sinumerik 840D SL
Spindle Speed :
2500 rpm
Model :
DUS 560 TI / 1500
Nb Of Axis :
2 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Sinumerik 840D SL
Turning diameter: 570 mm
Turning length: 1500 mm
Swing diameter over face slide: 365 mm
Bed width: 360 mm
Spindle bore: 62 mm
Spindle speed range: 6 – 2500 rpm
Transmission ratio: 2
Rapid travel longitudinal / cross: 10 / 5 m/min
Max workpiece weight without tailstock: 400 kg
Max workpiece weight between centres: 1000 kg
Additional steady rest capacity: 300 kg each
Tailstock quill diameter: 100 mm
Tailstock quill stroke: 190 mm
Spindle motor power (60/100% duty): 25 / 20 kW
Max spindle torque: 1800 / 1400 Nm
Machine weight: 5.2 t
Machine dimensions: 4.33 × 2.15 × 2.00 m
Approx. 3,300 spindle hours
Chip conveyor
Steady rest
Documentation and accessories
