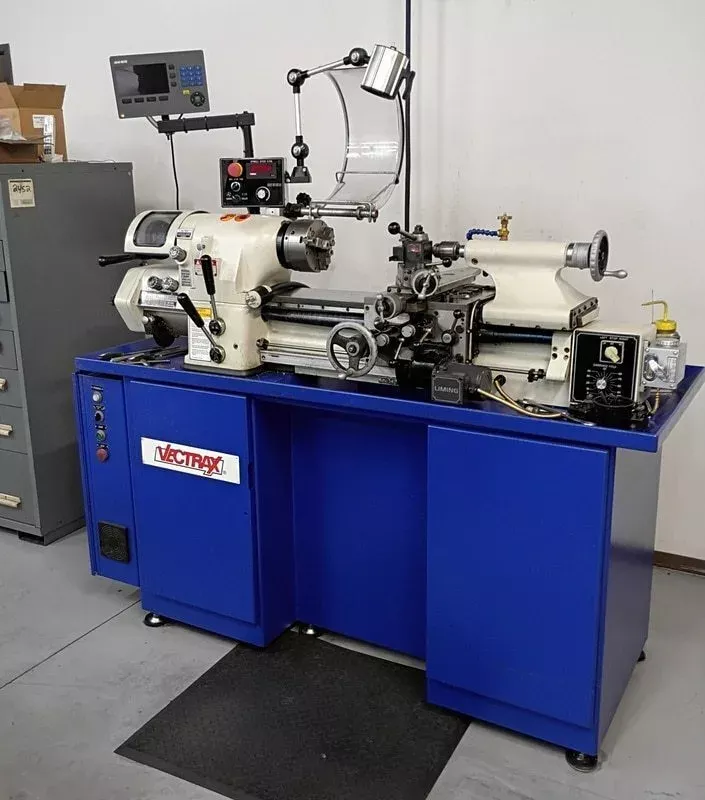

Vectrax Toolroom 4000 RPM (infinitely variable) CTL-618EVS

Swing over bed: 11 in
Swing over cross slide: 6 in

Distance between centers: 18 in
Bed width: 6.75 in

Cross slide travel: 6 in
Top slide travel: 3 in

Spindle bore: 1.5 in
Spindle speed: 0–4,000 RPM (infinitely variable)

Threading range (inch): 36 (11–108) TPI
Threading range (metric): 36 (0.275–2.7 mm pitch)
Threading pitch: 8 TPI

Quill travel: 3.75 in
Quill diameter: 1.358 in
Quill taper: MT#2

Lead screw diameter: 1 in

Main motor: 3 HP
Coolant pump motor: 0.25 HP

Control/features: Acu-Rite DR0203 3-axis DRO, inch & metric threading, chip and coolant shield, work light

Chuck: 6 in 3-jaw chuck
Collet system: 5C collet closer
Tool post: Aloris tool post
Tailstock: included

Dimensions: 65 in × 28 in × 68 in
Weight: 2,300 lb
