Vemag ROBOT 500

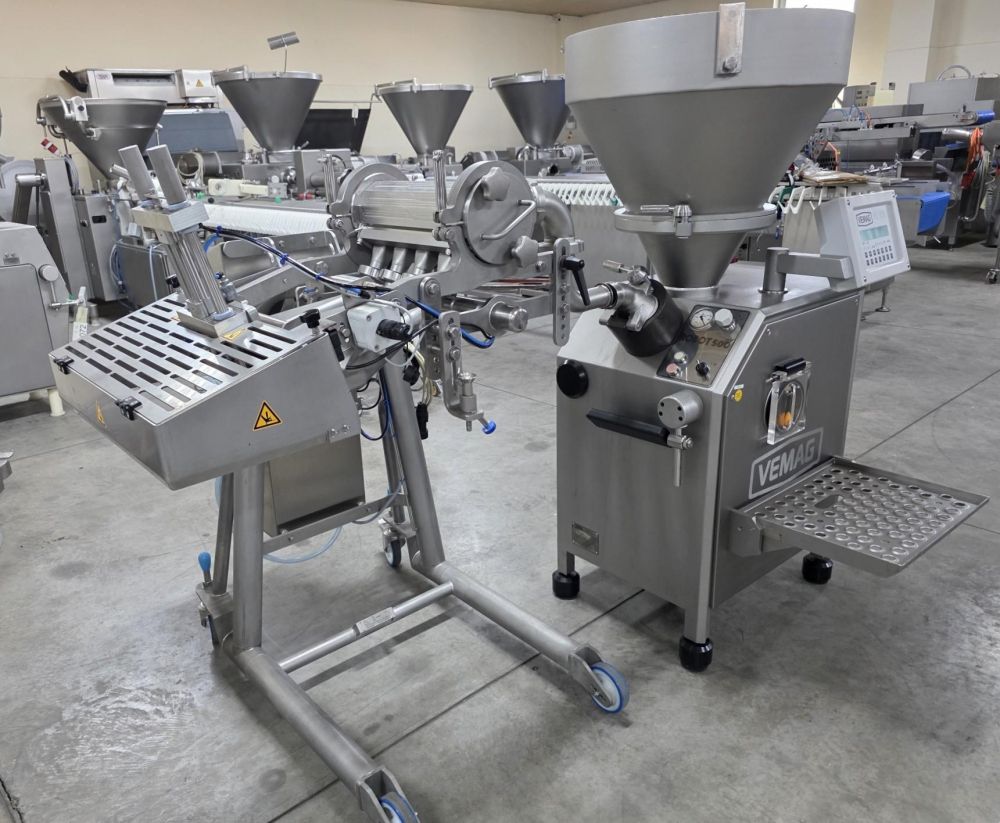

VEMAG ROBOT 500, Divider TAP SA 4
Forming line and product divider

Тhe line include:
VEMAG ROBOT 500 type 128
Continuous vacuum filler for straight filling and portioning
Machine features:
Filing hopper, 110 l capacity, with step, removable infeed scroll, spade stopper
Integrated vacuum pump with a suction capacity of 16 cbm/h
Standard double screw
Integrated double screw housing
Integrated portiomat
Infinitely controllable filling rate up to max. 2,500 kg/h, depending on type of double
screw
Connected load, total: 4.9 KW, 13 A
Weight: approx. 400 kg

Filling flow divider
Type: TAP SA 4
Filling flow divider - for a quadruple-strand system, with frame, safety covers.
Standard dimension between outlets is 35 mm or 45 mm.
Max. outlet opening is 30x50 mm or 40x60 mm.

Pneumatic cutoff device
The pneumatic cutoff device is attached directly to the filling flow divider with nozzles
Equipped with blade with two pneumatic cylinders for vertical cutting
