1/1

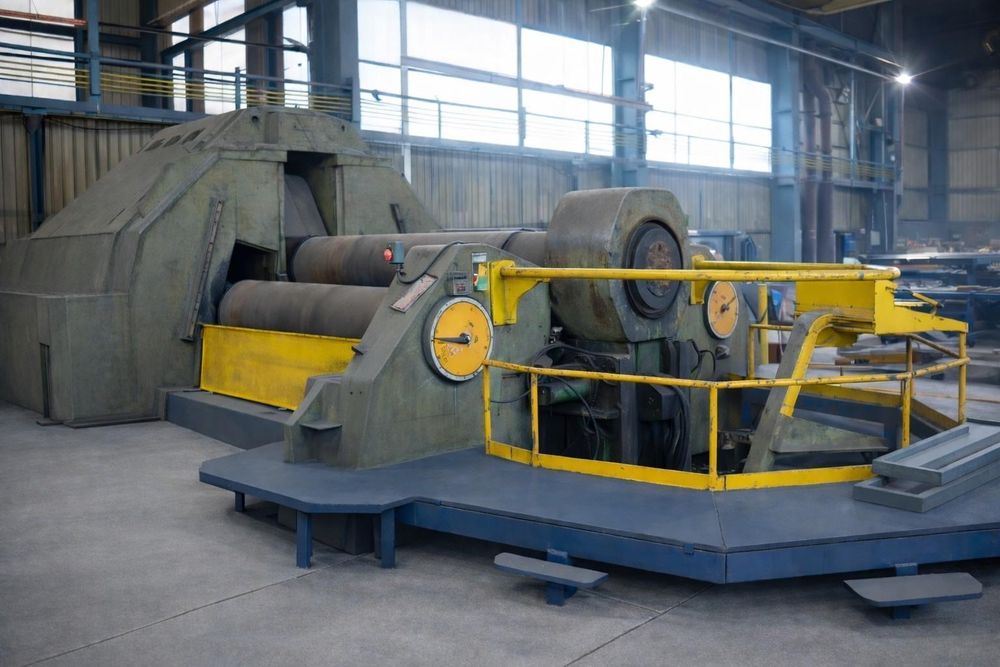

VERRINA 3100 x 125 mm
Ref :
2779261-3-CP
Condition :
Used
Manufacturer :
-
Model :
VERRINA 3100 x 125 mm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Number of Rolls: 4
Roll Capacity Cold: 3100 x 125 mm
Roll Capacity Warm: 3100 x 180 mm
Type: Hydraulic
Upper Roll Diameter: 850 mm
Lower Roll Diameter: 850 mm
Side Roll Diameter: 720 mm
Driven Rolls: 3
Total Power: 230 HP
Clamping Force: 1000 ton
Maximum Opening Between Rolls: 205 mm
Length: 9000 mm
Depth: 4300 mm
Height: 3050 mm
Weight: 190 ton
Top and Side Rolls Hydraulically Driven
110 HP on Top Roll
Extra Top Roll Included Diameter 660 mm
Hardened Rolls Treated with 50-NI-CR-No 7
Conical Bending
Electro Mechanical Control
Foundation Required: 10500 x 5300 x 2400 mm
