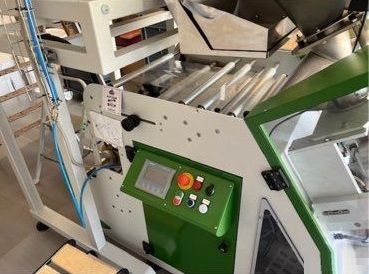

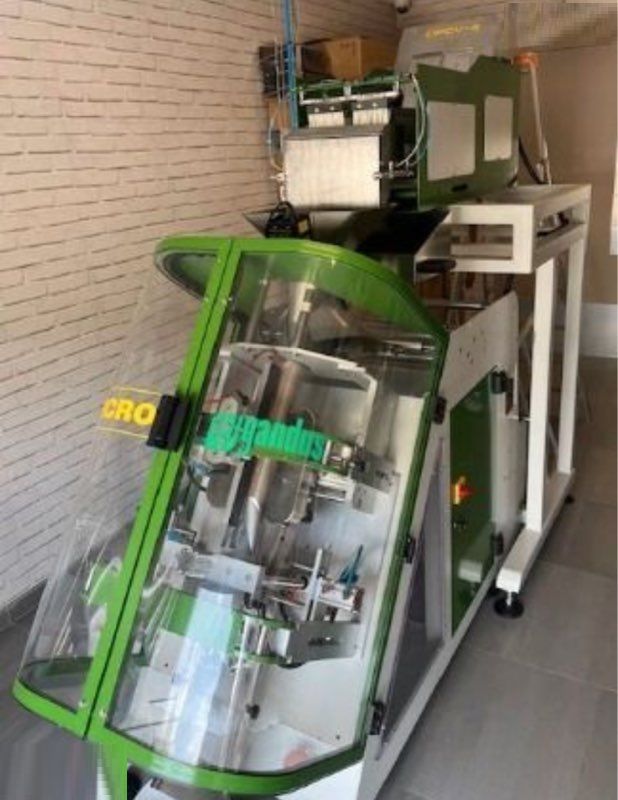

VFFS Micro IC Vertical Packaging Machine + Electric Output Mat Included

+ Stock of transparent bag rolls
+ 50-liter compressor
+ Consumables and spare parts for maintenance
Ideal for: Food processing, fragile products
(confectionery, snacks, biscuits, popcorn, etc.),
pet food, pharmaceuticals, cosmetics, logistics, chemicals.

Machine highlights:
Compact size & high performance:
up to 35 bags/minute depending on the product and film used.
Special for fragile products:
angled design prevents breakage when dropped into the bag.

Advanced control: complete management
via Siemens S7-1500 PLC, intuitive touchscreen. Flexibility: quick format change, programmable
recipes to save your settings.
Precision: integrated encoder for adjusting bag length.
Robustness: three-phase motor with variable frequency drive,
painted steel frame,
AISI 304 stainless steel product areas. Versatility:
Accepts various films (PE, PP, laminates, co-extruded).
Possible configurations: pillow bags or square bottom bags.

Main technical specifications:
Max. film width: 440 mm Max. bag length: 390 mm
Production: up to 35 bags/minute Installed power: 2 kW
Power supply: 400V three-phase + NC
Construction: painted steel + AISI 304 stainless steel areas
Integrated options: Automatic film centering system
Sealing temperature independently controlled by PLC 90°

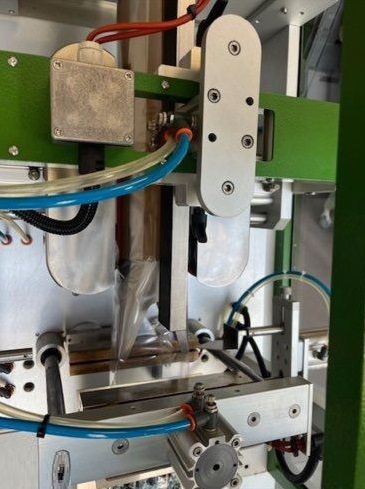

pneumatic opening of the forming tube
for quick change Included with the machine:
Electric outfeed conveyor (standard option,
added value). Advantages for your production:
Space saving thanks to its compact design.
Reduced losses of fragile products.
Simple and intuitive operation. Robust,
professional machine that is immediately operational.
