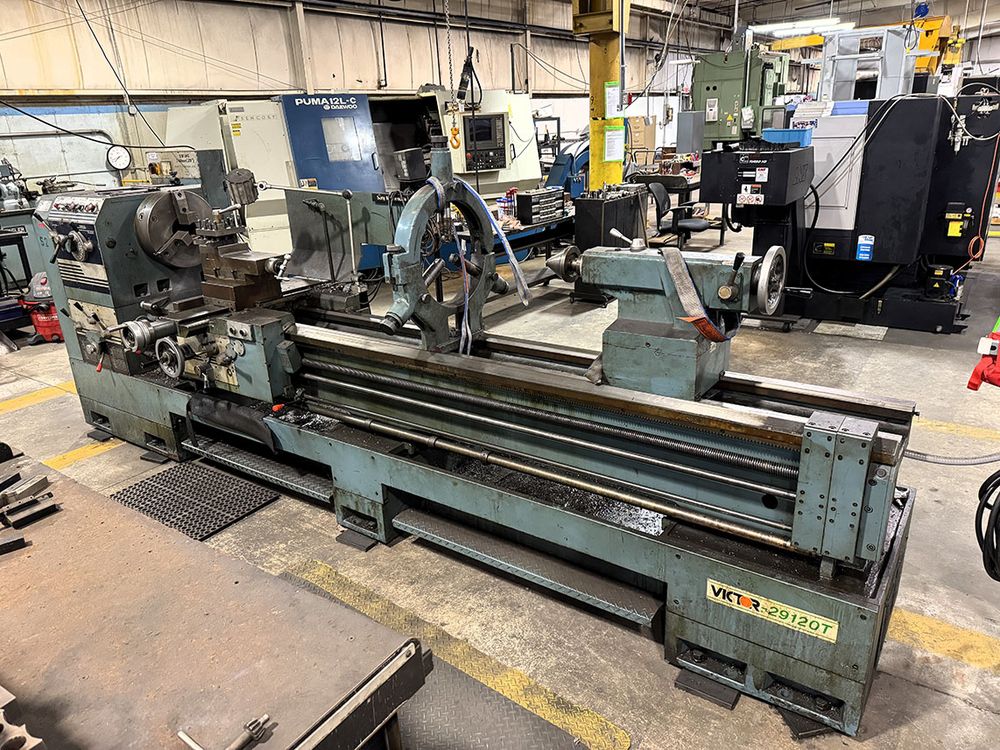

Victor Engine Lathe 1200 rpm 29120T

Swing over bed: 29.125 in
Swing in removable gap: 37.78 in
Swing over cross slide: 14.75 in
Distance between centers: 120 in
Spindle bore: 4.125 in
Spindle nose: D1-11 camlock
Bed width: 16.5 in
Spindle speed range: 25–1200 rpm
Inch threading range: 2–56 TPI
Metric threading range: 0.5–14 mm
Longitudinal feed range: 0.0012–0.0287 IPR
Cross feed range: 0.0004–0.0118 IPR
Tailstock quill travel: 7 in
Tailstock taper: MT5
Main motor power: 15 hp
Machine dimensions: 181 in x 50 in x 74 in
Machine weight: 10500 lb
Inch and metric threading capability
Two-axis digital readout
Thread dial indicator
Four-way turret toolpost
3-jaw chuck
Roller steady rest
Foot brake
Micrometer carriage stop
Hardened and ground bedways
