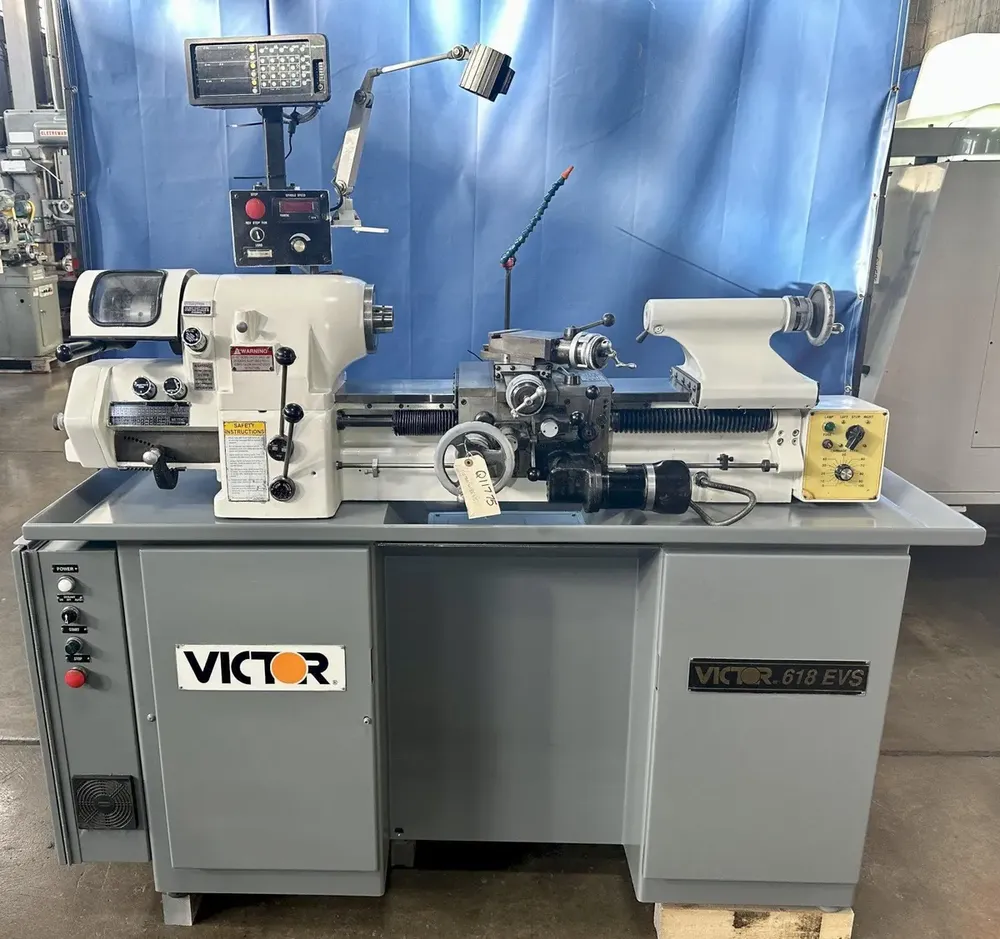

Victor Engine Lathe Variable 618EVS

Swing over bed: 11"
Swing over carriage: 9"
Swing over cross slide: 6"
Distance between centers: 18"
Digital read out
Variable frequency spindle
Compound cross slide
English and metric threading
Coolant pump
Spindle through hole capacity with round collets: 1-1/16"
Spindle through hole capacity with hex collets: 0.875"
Spindle through hole capacity with square 5C collets: 1.25"
Spindle speed range: 1 - 3000 RPM with 6" 3-jaw chuck
Spindle speed range: 1 - 4000 RPM with 5C collet
Maximum spindle speed for chuck: 3000 RPM
Maximum spindle speed for collet: 4000 RPM
Motor power: 3 HP
5C collet chuck
6" 3-jaw chuck
36 inch threads
Inch threads: 11 - 108 TPI
Tailstock spindle travel: 3.75"
Tailstock taper: #2 MT
Dimensions: 73" x 30" x 67"
Weight: 2530 lbs
