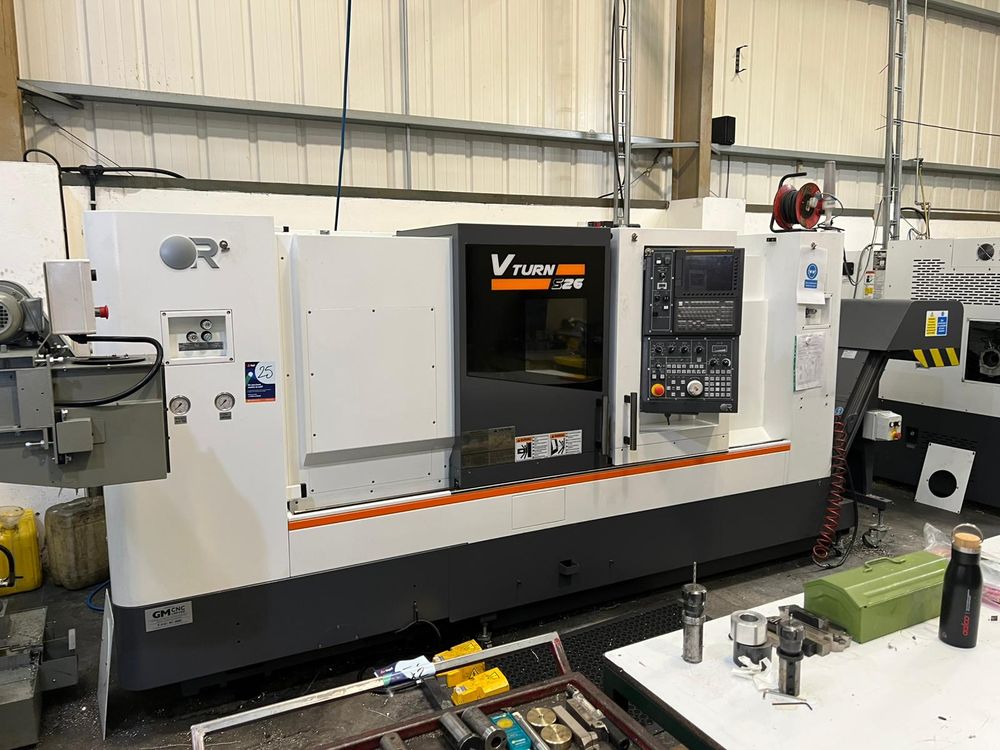

Victor Fanuc Oi-TF 3500 RPM S26/110CM 2 Axis

X-Axis Travel: 210 mm
Z-Axis Travel: 1100 mm
Rapid Feed X-Axis: 18 m/min
Rapid Feed Z-Axis: 24 m/min
Jog Feed X/Z: 0 ~ 1260 mm/min
Bar Capacity: 75 mm
Standard Turning Diameter: 285 mm
Maximum Turning Diameter: 420 mm
Distance Between Centres: 1130 mm
Swing Over Bed: 600 mm
Spindle Speed: 3500 RPM
Spindle Nose: A2-8 (10”)
Spindle Motor Power: 15 / 18.5 / 22 kW
Spindle Bearing Inside Diameter: 130 mm
Spindle Taper: 1/20
Number of Tool Positions (Live): 12
Tool Shank Size: 25 mm
Maximum Boring Bar Diameter: 50 mm (BMT65)
Turret: 12 Station BMT-65
Maximum Milling RPM: 6000
Control: Fanuc Oi-TF
Display: 10.4” Color with QWERTY Keypads
Chuck: 10” Autogrip Hydraulic
Tailstock: Programmable MT4 Live
Equipped With: Chip Conveyor
Equipped With: Chip Cart
Equipped With: AICC (40 Blocks)
Equipped With: Air Conditioner for Electrical Cabinet
Equipped With: Bar Feeder Interface
Equipped With: Manual Tool Presetter (Renishaw)
Machine Dimensions L x W x H: 4673 x 1848 x 1819 mm
Weight: 6830 kg
