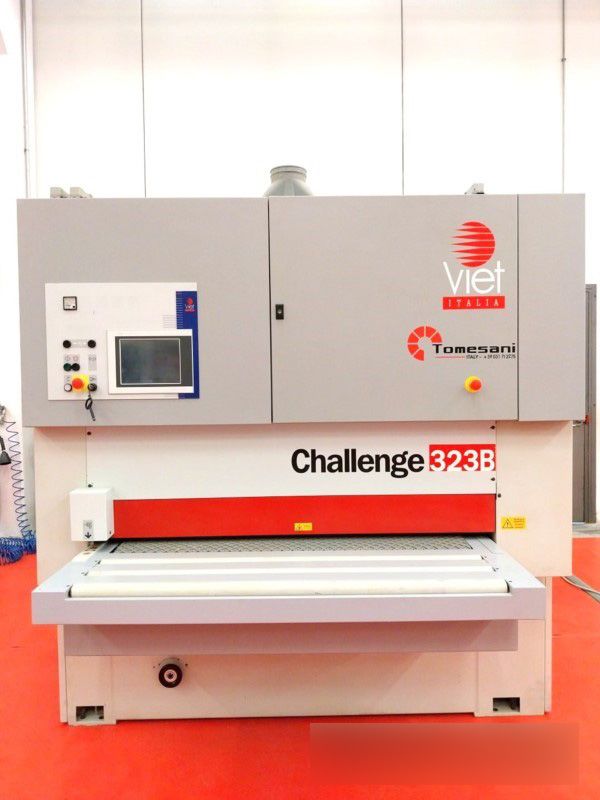

Viet CHALLENGE 323/B
EUROPE (Western and Northern)
Automatic 3-belt wide belt sander for panels, solid wood, veneer, furniture, furnishings,
wooden window frames, doors, painted panels, and various material - CE Standard
Technical data:
Working width mm 1350
Working height min/max mm 3/160
Belt dimensions 2620 x 1380 mm
Variable feed speed 3,7-20,5 mt/min
Automatic table positioning
Minimum piece length 250 mm
Vacuum table - Mortor Kw 2,2
Backlit LCD monitor
Storage and management of working parameters for different processes
Possibility of self-learning of the current work configuration
Histograms for abrasive belt consumption
Automatic speed variation
Display of alarms and automatic management of associated interventions
Composition:
1° Rubber Calibrating Roller Group - Diameter 240 mm - Motor Hp 20
2° Group Rubber Sanding Roller - Diameter 240 mm - Motor Hp 15 - Belt cleaning blowers
3° Group Electronic Pad divided into 48 sectors - Belt cleaning blowers
Scotch Brite satin roller finishes the surface of the panels after sanding - Motor Hp 1,5
Inlet and outlet roller conveyors
Suction ports diameter: n° 4 diameter 150 mm - n° 2 diameter 100 mm
Compressed air 7 atm
Overall dimensions: mm 2350 x 2700 x 2400 h
Weight kg 3800
