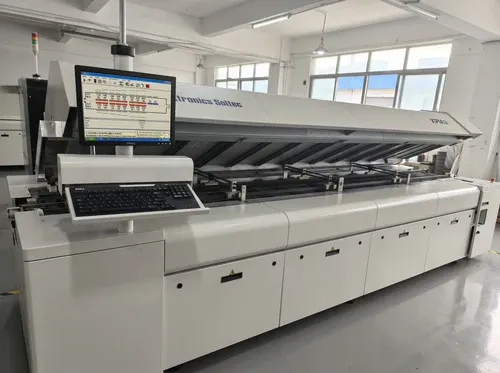

Vitronics Soltec XPM820

The Vitronics Soltec XPM820 is a high-performance lead-free reflow oven designed for stable, precise SMT soldering in high-volume production environments. It features a 10-zone thermal system with advanced convection control for consistent soldering quality and process repeatability. The system supports both mesh belt and rail transport for maximum production flexibility.

Key Highlights
• 10 total zones: 8 heating zones + 2 cooling zones
• Independent top and bottom convection heating per zone
• Forced-air cooling system for controlled thermal profiles
• Lead-free ready for RoHS-compliant solder alloys (SAC305, SAC405, etc.)
• Left-to-right board transport direction
• 208V
• Dual conveyor system: mesh belt + rail (no retrofitting required)
• PC-based control with Vitronics Soltec profiling software

Machine Information
• Manufacturer: Vitronics Soltec
• Model: XPM820
• Windows 7 Operating System
• ~45,000 hours per machine
• Year of Manufacture: 2015

Thermal System
• Heating Zones: 8 independently controlled zones
• Cooling Zones: 2 forced-air cooling zones
• Heating Design: Top and bottom convection nozzle arrays
• Process Control: Multi-zone thermal profiling for stable ramp/soak/reflow/cool stages

Transport System
• Direction: Left to Right
• Conveyor Types: Mesh belt and rail system included
• Flexibility: Supports mixed PCB formats without modification

Process Capability
• Process Type: Lead-free reflow soldering
• Alloy Compatibility: SAC305, SAC405, and other RoHS-compliant materials
• Control System: Dedicated PC workstation with profiling software
