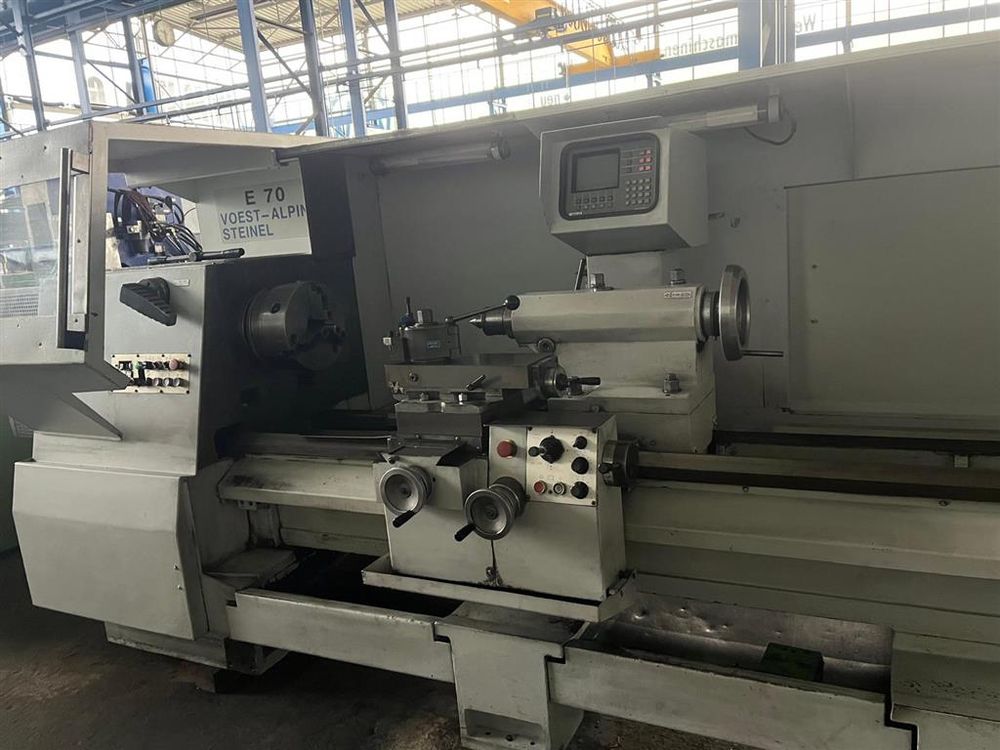

Voest-Alpine Engine Lathe 1800 RPM STEINEL E 70 (Weiler)

Ref : 2757955-3-AW

Condition : Used

Manufacturer : Voest-Alpine

Type : Engine Lathe

Spindle Speed : 1800 RPM

Model : STEINEL E 70 (Weiler)

Year(s) : 1991

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Turning diameter over bed 720 mm
Turning diameter over face-slide 430 mm
Centre distance 2000 mm
Control cycle controlled
Spindle speed 1-1800 RPM
Max. torque on spindle 3200 / 2700 Nm
Feed motor 20000 N
Rapid motion X-axis 3.5 m/min
Spindle passage 106 mm
Tailstock taper ISO MK 6
Tailstock quill stroke 225 mm
Max. workpiece weight between centers 2500 kg
Max. workpiece weight without tailstock 500 kg
Voltage 380/500 V
Control voltage 24 V
Total power requirement 33 KVA
Weight approx. 5.5 t
Machine dimensions approx. LxWxH 4 x 2.0 x 5.2 m
Prepared for automatic chuck (clamping cylinder + pneumatic control)
Constant cutting speed with automatic spindle speed adjustment according to workpiece diameter
