1/1

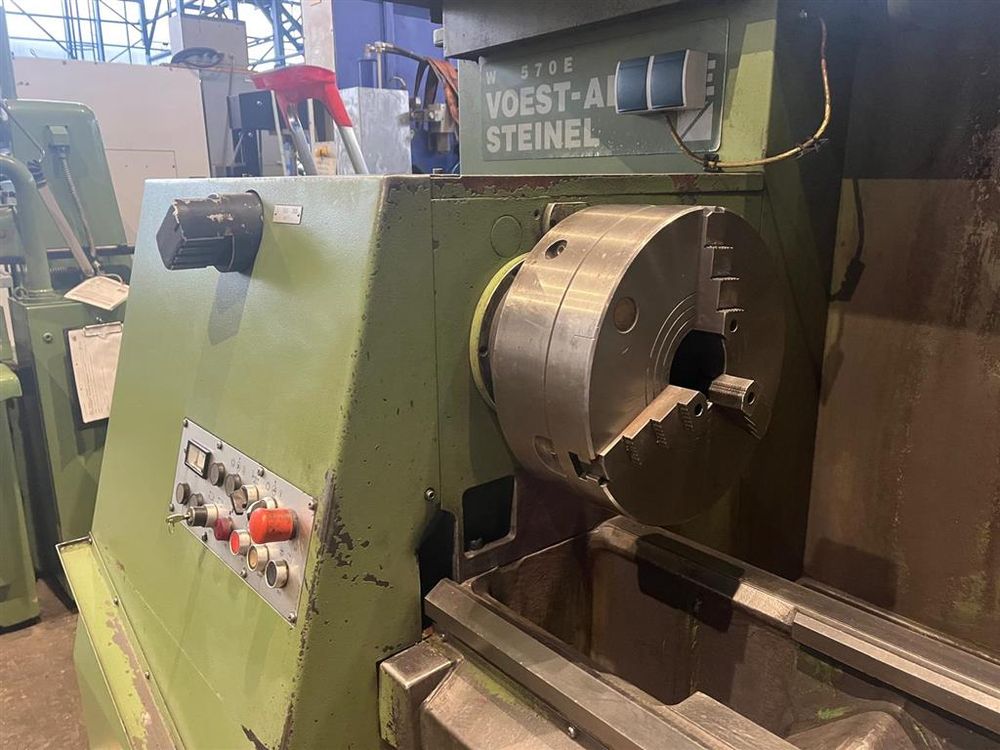

Voest-Alpine Engine Lathe 2500 rpm STEINEL W 570E (WEILER)
Ref :
2766433-3-AW
Condition :
Used
Manufacturer :
Voest-Alpine
Type :
Engine Lathe
Spindle Speed :
2500 rpm
Model :
STEINEL W 570E (WEILER)
Year(s) :
1991
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Rapid traverse X-axis 7 m/min
Rapid traverse Z-axis 3.5 m/min
Control type Cycle controlled
Turning diameter over bed 570 mm
Turning diameter over cross slide 280 mm
Center distance 1000 mm
Spindle speed range 1–2500 rpm
Maximum spindle torque 1800 Nm
Maximum spindle torque (secondary range) 1200 Nm
Spindle bore 63 mm
Tailstock taper MK5
Tailstock quill stroke 160 mm
Bed width 350 mm
Feed force 7000–9000 N
Machine weight approx. 3200 kg
Machine dimensions approx. 3.65 x 1.65 x 1.8 m
