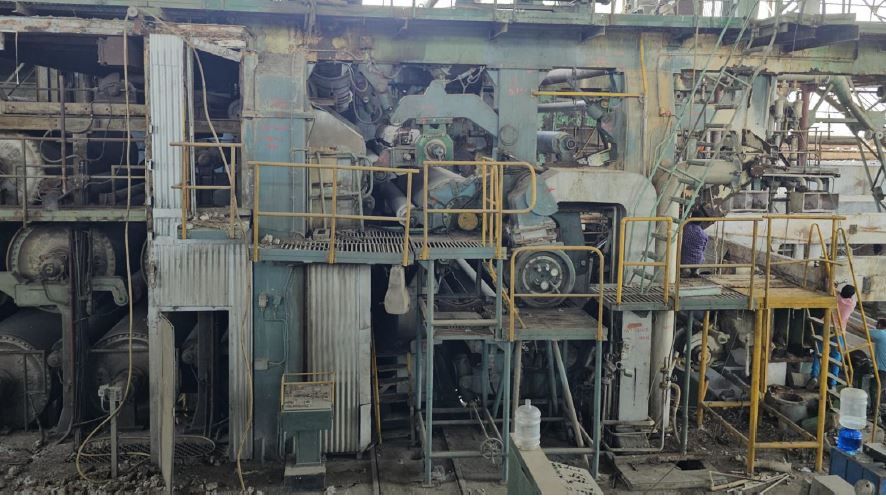

Voith Writing & Printing Paper Machine 530 Cm

5300 mm face width
Comes with Hydraulic Headbox, Bronze Dandy Roll, Bronze Suction Couch, Bronze Suction Pickup, Trinip Press with 2 kusters Swimming Rolls, kusters calander with Caliper Control and auto Spool Pope Reel

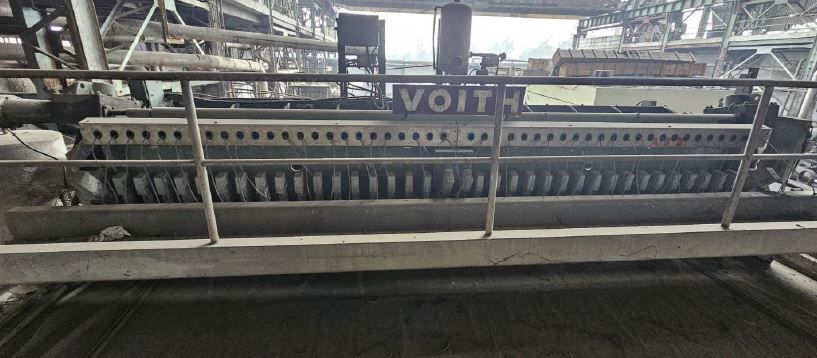

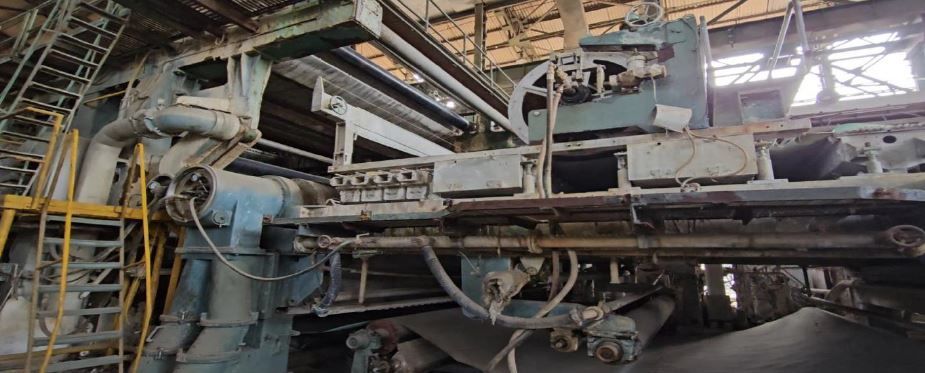

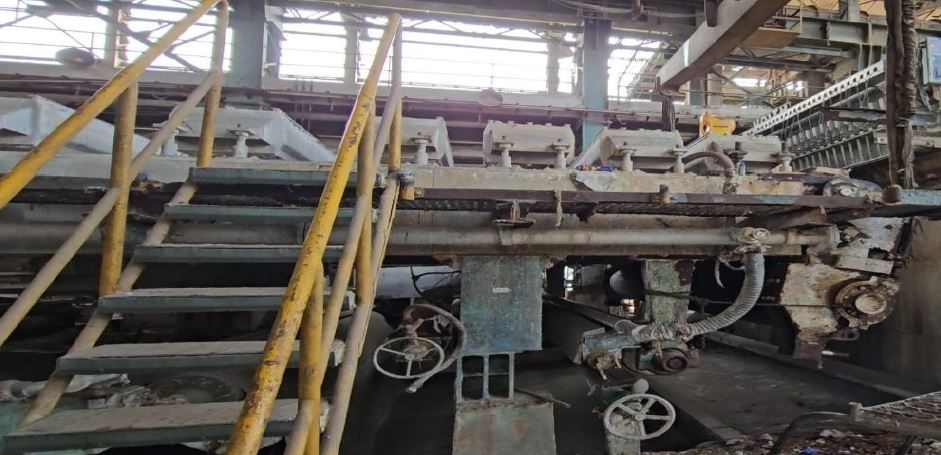

Hydraulic Headbox designed for making highest quality writing and printing papers.
Comes with Deflection control system, auto slice control arrangements and Overflow Chamber.
New Similar Headbox costs around 17 Crores in today’s date.

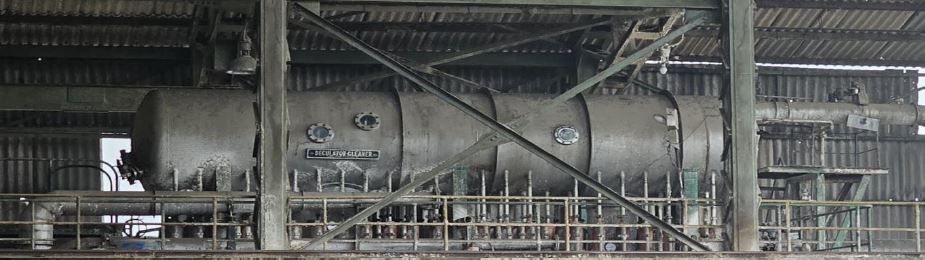

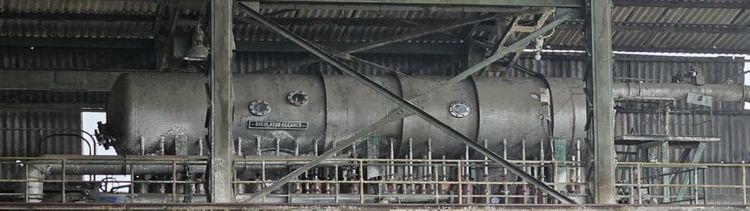

VOITH / Clark & Vicario Deculator Cleaner of 54,000 LPM Capacity.

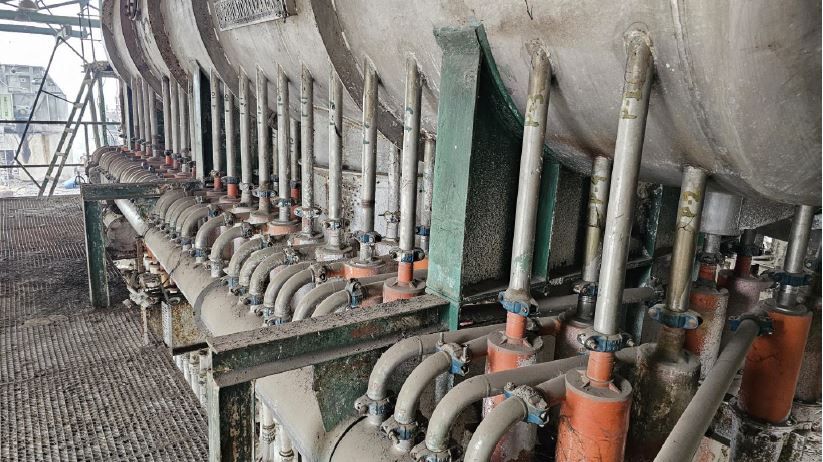

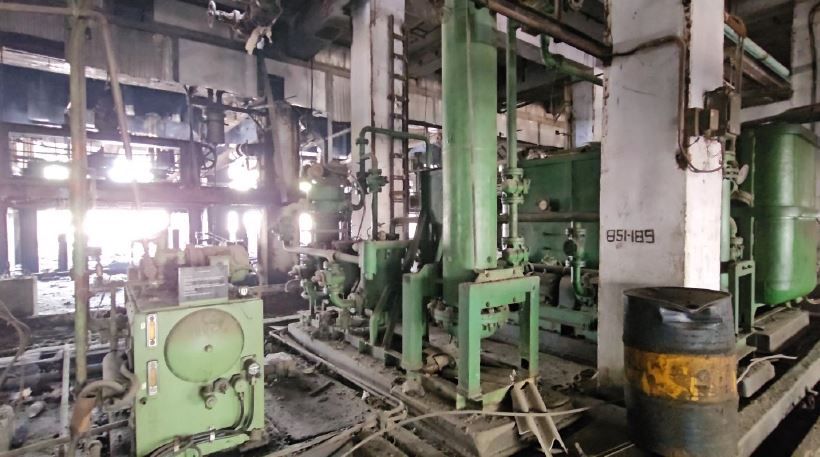

Comes with 3 stage centri cleaner system and 2 stage Vacuum Pumps. New System

1500 mm OD Bronze Dandy Roll designed from Germany for best formation and putting watermarks.

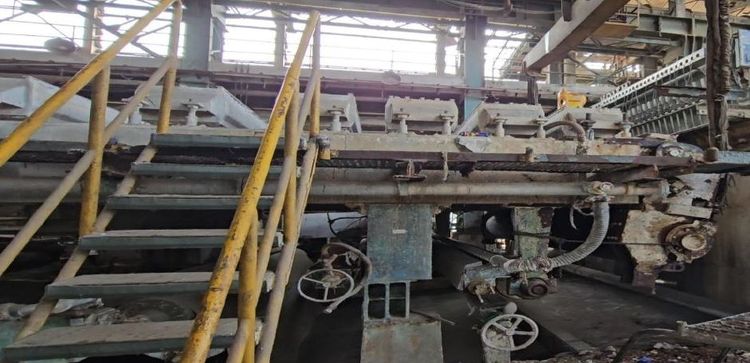

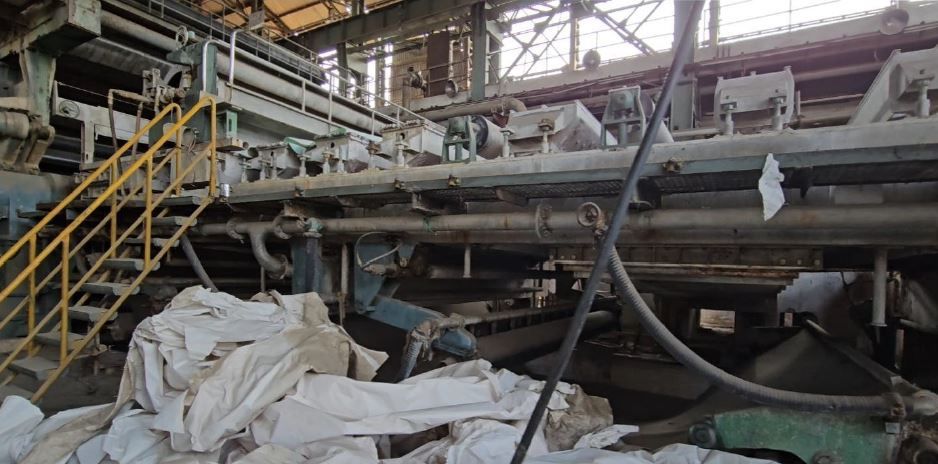

Cantilever wire part of 41 m wire length, 5.4 m wire width and ceramic tops from Leripa / Heimback.

VALMET Bronze Suction Couch Roll of 1000mm OD with 2 Suction zones

750 mm OD Bronze Suction Pick Up Roll roll

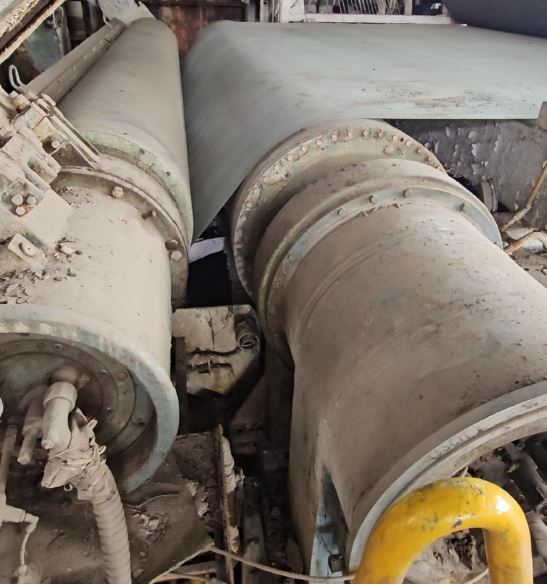

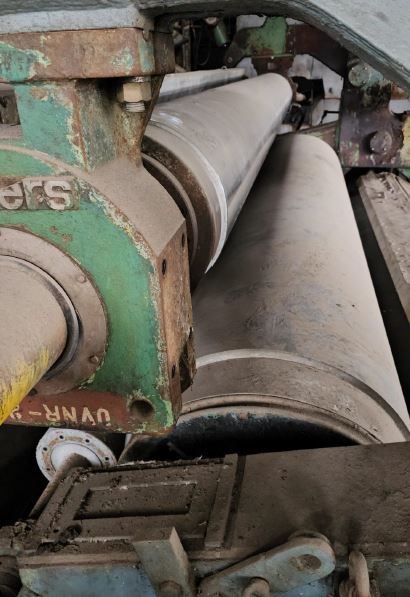

Tri Nip Press with 4 Rolls Arrangement.
1.Bottom Roll: Kuster Swimming Roll of 580 mm OD and 5300 mm face width.
2.Suction Press Roll: Second Roll si Suction Press Roll of 1050 mm OD.
3.Center Roll: Center Roll is 1100 mm OD, 5300 mm face width Granite Roll made out of single piece of granite.
4.Top Roll: Kusters Swimming Roll of 580 mm OD and 5300 mm face width.

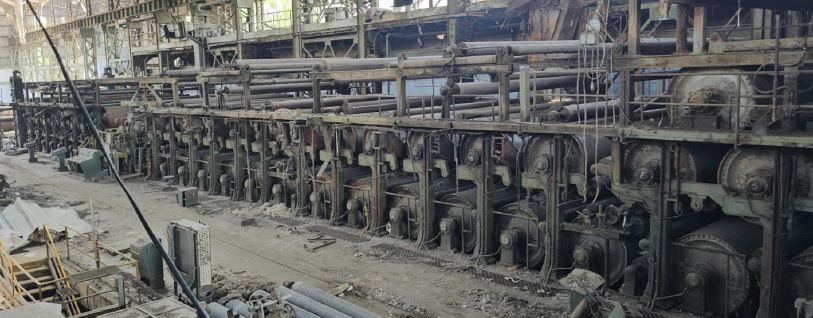

In Total 47 CI Dryers of 5320 mm face width and 1500 mm OD
with Auto Stretchers to reduce steam consumption with all Rotary Joints
and Complete Drive side and Tender side Framings, oscillating doctor holders, dryer screen Rolls and guides from Voith.

SIZE PRESS ROLLS
2 Rolls and 2 more spare Rolls available from size press section. 5200 mm face width and 1050 mm OD with Bearing and Housing and rotary joint.

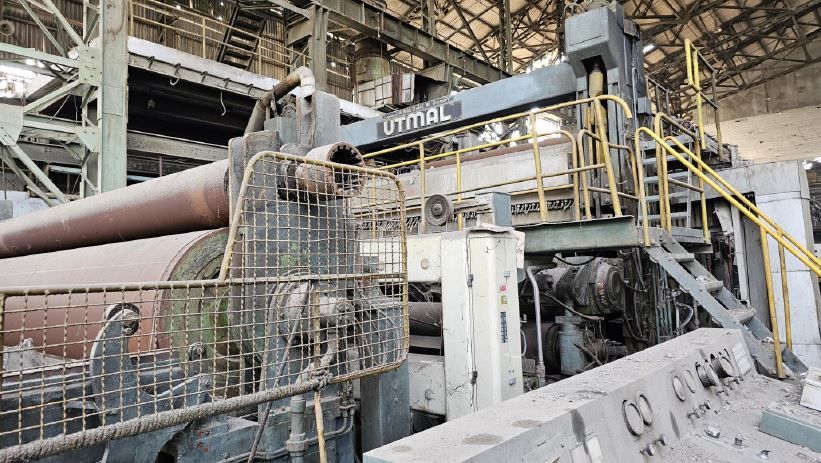

Hard Nip calander consisting of one 710 mm OD Thermo Roll and 600 mm OD swimming roll. The frame is made of Cast Iron and has provision to put 6 calander rolls. (Approx 7 Cr)
QCS Scanner from ABB along with Caliper Control System and slice control

5400 mm Auto Spooler Pope Reel for crease free and self paper feeding on new Rolls.

Complete oil Lubrication System for supplying oil to all the rolls throughout the complete paper machine. Consists of one large capacity tank , filters and supply pumps.

SPARE ROLLS:
Many Spare Rolls are available.
Size Press Roll
Wire Rolls
Breast Roll
Felt Rolls
Dryer screen Rolls
Cast Iron Dryer
Internal shell of Suction Press Roll
Internal shell of Suction Pickup Roll.
Kusters Press Roll (Swimming roll)
