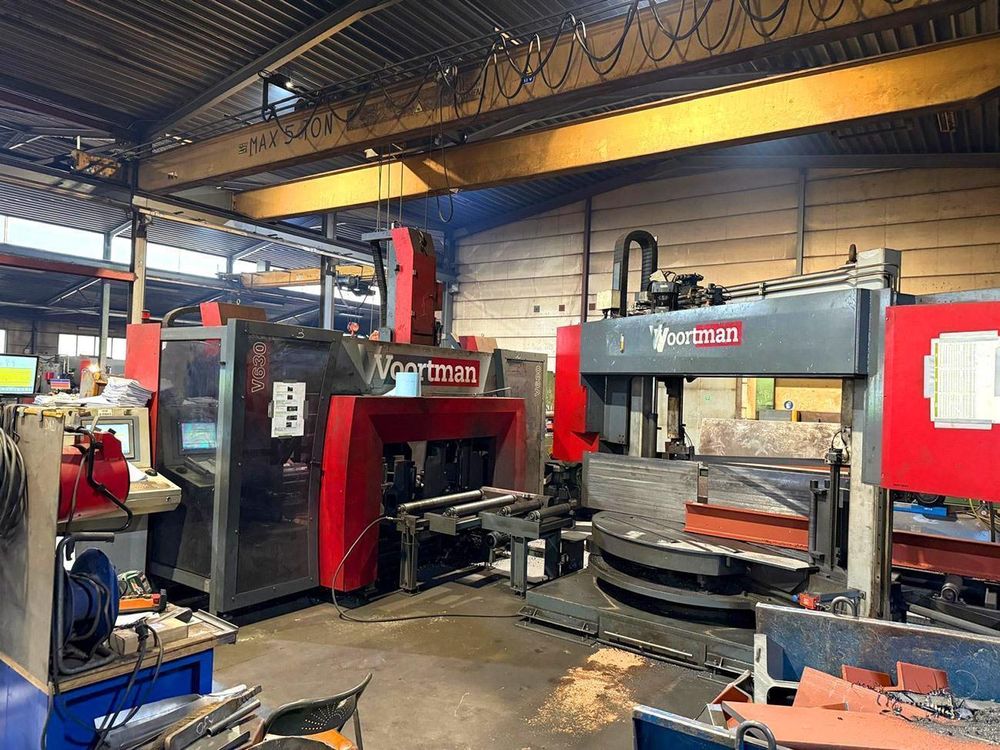

Voortman 1250 x 500 mm drill saw line 2000 rpm

Voortman VB1250 bandsaw capacity: 1250 x 500 mm
Miter cut ±60°: 1000 x 500 mm
Miter cut ±45°: 850 x 500 mm
Miter cut -30°: 500 x 500 mm
Sawing speed: 40–120 m/min
Power: 7.5 kW

Bandsaw dimensions: 11,000 x 54 x 1.6 mm
Voortman V630 triple drilling unit
2 horizontal drilling units
1 vertical drilling unit
Automatic tool changer per unit: 5 positions
Spindle: SK40 (cooling through spindle)
Drill diameter: 8–40 mm
Drilling speed: 0–2000 rpm
Thread tapping: M8–M24
Profile height measuring included
Center point marking included
Infeed roller conveyors: 18 m
Crossfeed conveyors: 6 x 4 m
Max width: 1050 mm
Capacity: 400 kg/m
Max positioning weight: 9 tons
Roller feed measuring system: unlimited measuring length
Vacon 110 CNC control
Hydraulic aggregate: 4 kW – 160 bar
