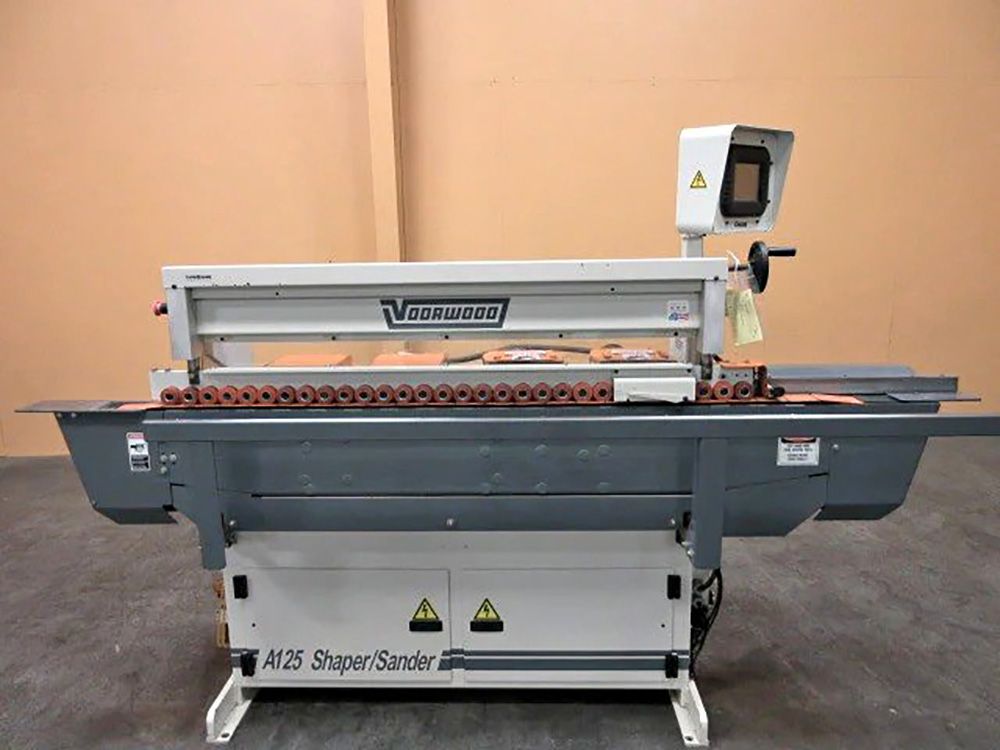

Voorwood A125

Shape and Sand Machine
Technical Specifications:
- (2) 5 HP 6 000 RPM shaping spindles with 1-1/4" spindles
- Micropoint tilt (moves up and down and in and out)
- Jump feature on first shaping spindle
- (2) 3/4 HP variable speed profile sanding heads with 1-1/8" spindles
- Equipped with quick change spindles Infeed guide fence with digital indicator
- Touch screen control
- Digital position indicators
- 3/4 HP variable speed feed
- 8 to 25 FPM
- 2-5/8" wide x 3"
- Rubber feed track pads
- Rubber wheel hold down rollers
- Minimum material size: 3" x 3"
- Minimum thickness: 1/8"
- Maximum thickness: 1-1/2"
- (1) centralized 6" diameter dust outlet
- Dust Collection: Requires 800 CFM minimum
- Air requirements: 90 PSIG @ 3 CFM
- Electrical requirements: 25 amps @ 480 Volt Note: 480 Volt ONLY
- Machine net weight: 1,490 lbs.
- Machine dimensions: 30"W x 97"L x 63"T
