TMP, Voronezh K04.015.848 (KA8548) 6300 ton
Ref :
2506251-3
Condition :
Used
Manufacturer :
TMP, Voronezh
Model :
K04.015.848 (KA8548)
Pressure :
6300 ton
Year(s) :
1978
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
20 Mar. 2023

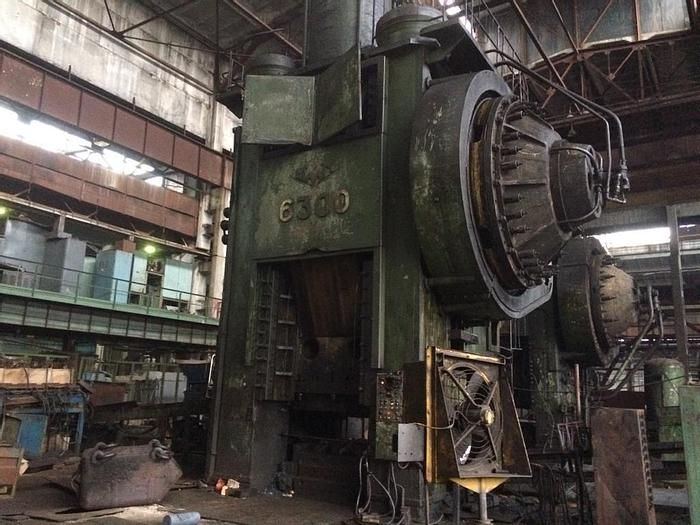

TMP VORONEZH K04.015.848 (KA8548)
Year 1978
Capacity (ton) 6300
Slider stroke, mm 460
Table size, mm 1900x1950
Press weight, kg 561 000
Description
Capacity 6300 tons
Stroke 460 mm
Stroke per minutes 40
Table dimensions
Left-right 1900 mm
Front-back 1950 mm
The size of the ram
Left-right 1900 mm
Front-back 1680 mm
Upper ejector
Stroke 40…65 mm
The effort, t 16
Lower ejector
Stroke 100 mm
The effort, t 30
Press dimensions
Left-right 7635 mm
Front-back 5760 mm
Height above floor level 9400 mm
Weight 561 tons
