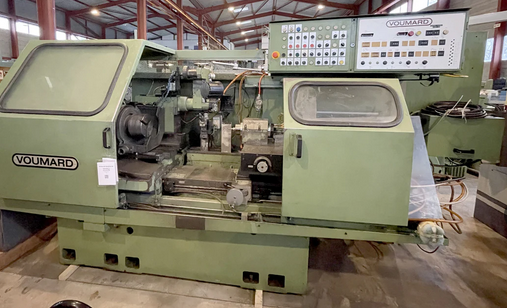

Voumard 203 L6

Min Internal Grinding Diameter: 5 mm
Max Internal Grinding Diameter: 120 mm
Grinding Depth: 160 mm
Centre Height: 130 mm
Table Travel: 2–550 mm
Table Speed: up to 20 m/min
Max Angle: 0–45°
2 Axis
Workpiece Spindle Speeds: 6 steps
Workpiece Spindle Speed Range: 150–1500 RPM
Internal Grinding Spindle Drive: 9 kW
Internal Grinding Spindles: 2
Max Internal Grinding Spindle Speed: 36,000 RPM
Max Internal Grinding Spindle Speed: 60,000 RPM
Coolant System
Paper Filtration System
Face Grinder
Redressing Device
Front Grinding Device Redresser
3-Jaw Chuck
Grinding Arbors Set
Tool Cabinet
Lamp
Lathe Chuck Protection
Swivelling Protection Device
Centre Height: 130 mm
Spindle Bore: 30 mm
Machine Weight: 1,500 kg
Machine Dimensions: 2200 x 1700 x 1800 mm
Voltage: 380V / 3 Phase / 50 Hz
