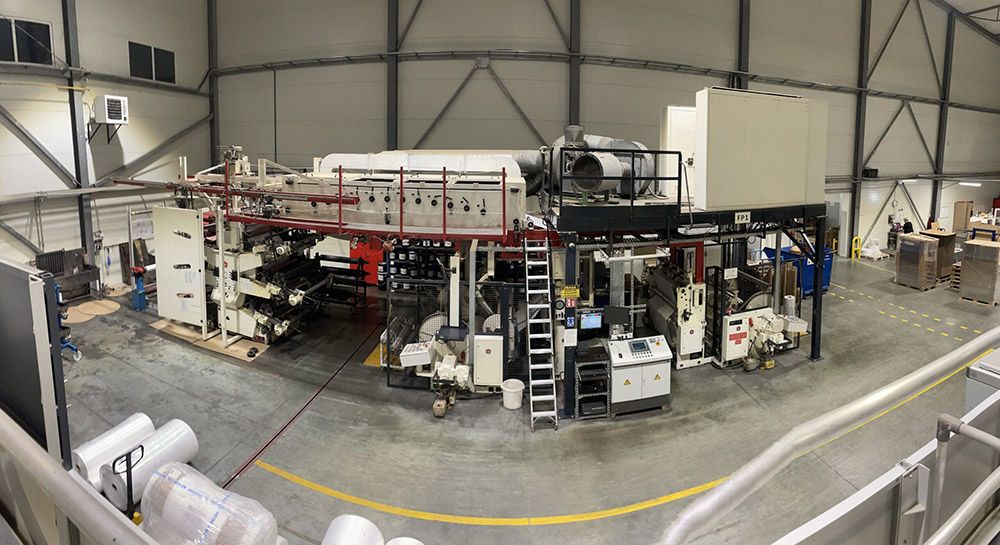

W&H Olympia 736 ST 6 1270 mm

Central drum
6 colors
With gears
Water based inks
Max material width: 1320 mm
Max printing width: 1270 mm
Min – max print repeat: 300 – 910 mm
Gear pitch: 10 mm
Max mechanical printing speed: 250 m/min
Materials:
Paper (50 – 130 gr)
HDPE (0.010-0.040 mm)
Polyethylene/LDPE (0,020 – 0,150 mm)
Laminated films (up to 0.100 mm)
PP, cellophane and similar materials (0,012 – 0.100 mm)

Max reel diameter unwinder: 1000 mm
Max reel diameter rewinder: 1000 mm
Inner core diameter unwinder: 76 mm
Inner core diameter rewinder: 76 mm
Cylinders (16 in total): 5 x 310, 6 x 520, 5 x 580
Anilox (7 in total): 3 x 80, 1 x 120, 1 x 160, 2 x 200
Gears (157 in total): 7 x 31, 8 x 32, 6 x 33, 6 x 34, 6 x 35, 6 x 36, 6 x 37, 6 x 38, 6 x 39, 4 x 40, 5 x 42, 6 x 44, 6 x 46,
6 x 49, 5 x 50, 6 x 52, 5 x 54, 5 x 57, 6 x 58, 5 x 59, 6 x 60, 6 x 61, 8 x 62, 5 x 64, 6 x 66, 1 x 70, 3 x 71, 3 x 75, 3 x 76
Sleeves included – inner/outer diameter (78 in total): 9 x 310/320, 1 x 310/330, 5 x 310/340, 3 x 310/350, 4 x 310/360,
3 x 310/390, 5 x 310/380, 5 x 310/400, 2 x 310/420, 2 x 310/440, 1 x 310/450, 2 x 310/460, 1 x 310/490, 4 x 310/500,
4 x 520/520, 1 x 520/560, 5 x 520/570, 4 x 580/590, 2 x 580/600, 3 x 580/610, 2 x 580/620, 1 x 580/640, 4 x 580/660, 2 x 580/750, 3 x 580/760
Min – max web tension unwinder: 25 – 270 N
Min – max web tension rewinder: 30 – 350 N
Registration accuracy front/back: ± 1 mm
Siemens 5 electronic system
Explosion proof (to be confirmed)
Chiller (not connected)
Gas burner drying system (not connected because the machine is used for paper)
Manuals and electrical schemes are available
Overall dimensions LxWxH: 17 x 8,30 x 5,20 m
Visible in production
Immediately available
