W&H Heliostar Rotogravure Printing Press 8 Color 40"

Ref : 2799093-4-MT
Condition : Used
Manufacturer : W&H
Model : Heliostar Rotogravure Printing Press
Number Of Colors : 8 Color
Size : 40"
Year(s) : 2007
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

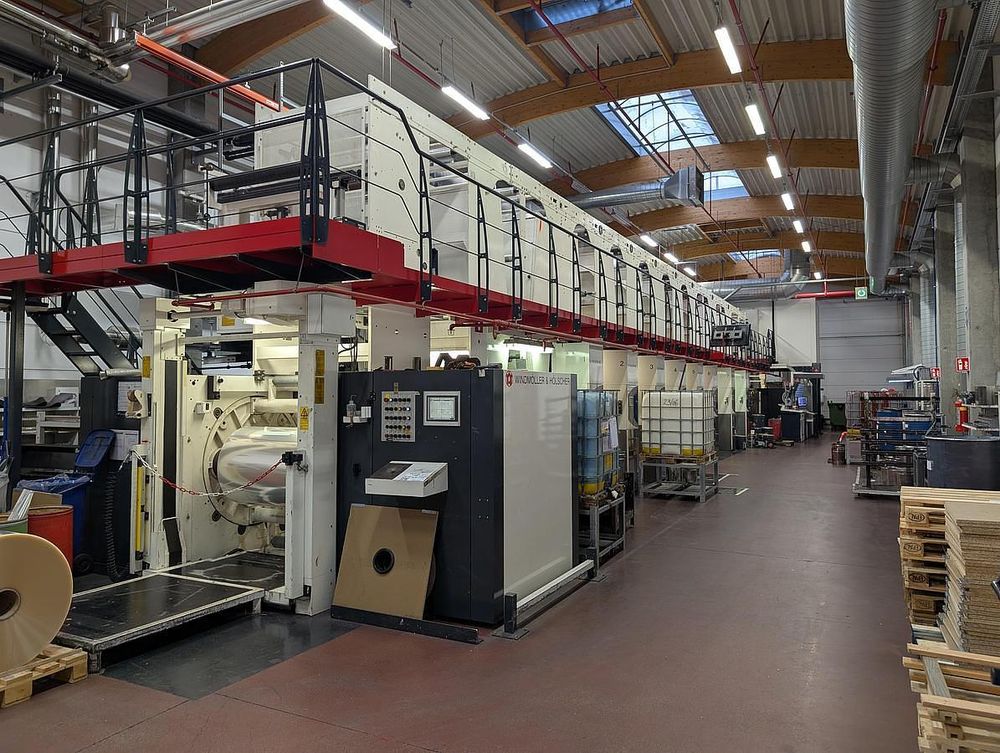

40" Wide W&H Heliostar 8 Color Rotogravure Printing Press
This Heliostar has had massive investment from the owner
since 2016 and the mechanical condition is in full working order,
the cosmetic condition is also very, very good.

Updates includes...
Regi_star 20 update
IPQ Check pro 100% inspection

Retrofit to upgrade the existing couplings and motors for
gravure cylinder drive to the latest version of Heliostar S consisting of:
parts for replacing the drives for inking rollers
chucks with adapter
drives support to the chucks
chuck sensors gravure cylinder bearings
replacing parts for the sidelay register
sidelay register drives -sidelay register guards
motor for gravure cylinder drive
mechanical mounting parts
electrical accessories documentation

TECHNICAL INFORMATION:
Turret unwind with roll lift & flying splice
Unwind diameter: 39.37" - 1000mm
Max web width: 40" - 1020mm
Max print width: 39.37" - 1000mm
Repeat range: 17.8 - 41.3" - 450mm - 1050mm
Gas drying
Corona treater
Viscosity system
Edge guide
BST Inspection system
Turret rewind with roll lift & flying splice, 3" & 6" - 76mm & 152mm
Rewind diameter: 39.37" - 1000mm
