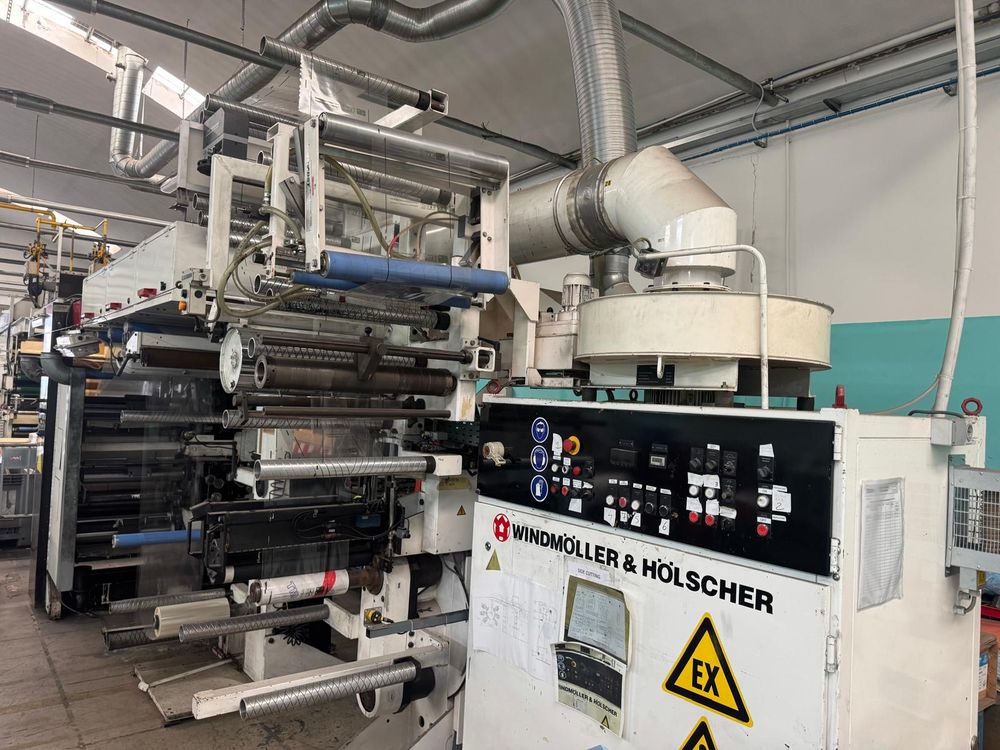

W&H Soloflex 8480 6 600 mm

6 colors
For paper and film
Thickness Range: 20 my for film and 110 gr/m2 for paper
Material passage: 630 mm
Max working width: 600 mm
Max reel unwinder diameter: 760 mm
Max reel rewinder diameter : 600 mm
Min-max print repeat: 250 – 520 mm
Gear module: 1,64 mm
Print Speed: 120 m/min
Belt Guide System: BST
Video System: No
Closed Chamber Doctor Blades
7 Ink Trays
7 Kalve Ink Pumps
Inline Slitting System
Anilox: 1 x 255L Vol. 3.5, 1 x 255L Vol. 3.5, 1 x 220L Vol. 10.5, 1 x 100L Vol. 8.5, 1 x 80L Vol. 10.0
Cylinders + Gears: 6 x 350, 6 x 400, 6 x 500, 6 x 520 mm
Dimensions LxWxH: 7.5 x 4 x 3.5 m
Extra option to be agreed : Cliché mounting plate device Du Pont
Visible in production
Immediately available
