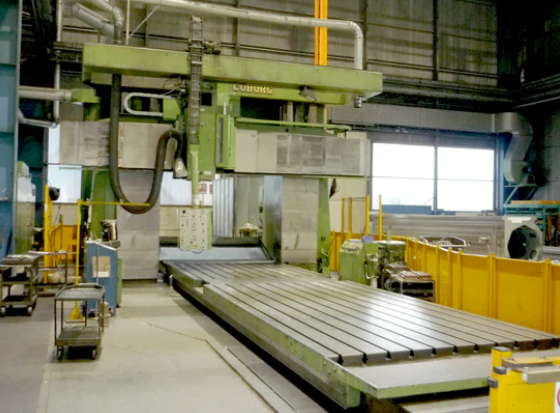

Waldrich Coburg 20-10 FP 280 600 RPM

X-Axis Travel: 9000 mm
Y-Axis Travel: 2950 mm
Z-Axis Travel: 1250 mm
W-Axis Travel: 2200 mm
60 ISO Spindle Taper
Spindle Speed: 20–600 RPM
Spindle Motor: 100 kW
Spindle Torque: 13000 Nm
Feed Rate X-Axis: 5–3000 mm/min
Feed Rate Y-Axis: 5–3000 mm/min
Feed Rate Z-Axis: 5–2000 mm/min
Feed Rate W-Axis: 5–750 mm/min
Table Length: 8000 mm
Table Width: 2800 mm
Maximum Table Load: 64000 kg
11 T-Slots
T-Slot Width: 36H8 mm
T-Slot Pitch: 250 mm
Distance Between Columns: 3200 mm
Maximum Table to Spindle Distance: 2806 mm
90° Attachment
90° Narrow Attachment
Vertical Extension
Tilting Attachment
Electrical: 380 V, 3-Phase, 50 Hz
Machine Dimensions: 21000 × 7800 × 6622 mm
Machine Weight: 120000 kg
