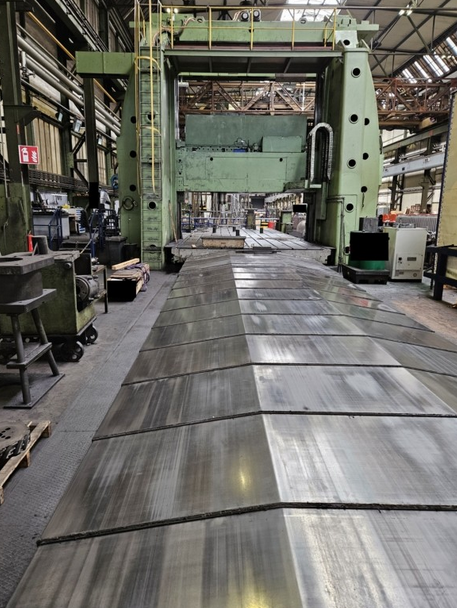

Waldrich Siegen PF-S-150 Variable

Ref : 2798917-3-MT

Condition : Used

Manufacturer : Waldrich Siegen

Model : PF-S-150

Spindle Size :

Spindle Speed : Variable

Year(s) : 1953

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Type: Gantry Portal Milling Machine
Control: SINUMERIK 840D
X-Axis Travel: 14,000 mm
Y-Axis Travel: 4,500 mm
Z-Axis Travel: 4,000 mm
Pinole Travel: 450 mm
CNC Modernization: 2001
NC Table Drive Retrofit: 2015
Crossbeam Drive Retrofit: 2024
Table Size: 14,000 x 4,350 mm
Table Load Capacity: max. 200 t
Column Passage Width: 4,545 mm
Clear Width: 4,200 mm
Distance Table to Spindle: 4,000 mm
Main Spindle Motor Power: 125 kW
Horizontal Milling Capability
Vertical Milling Capability
Horizontal Drilling Capability
Vertical Drilling Capability
Documentation Included
Machine Weight: approx. 350 t
Machine Dimensions: 40 x 10 x 9 m
