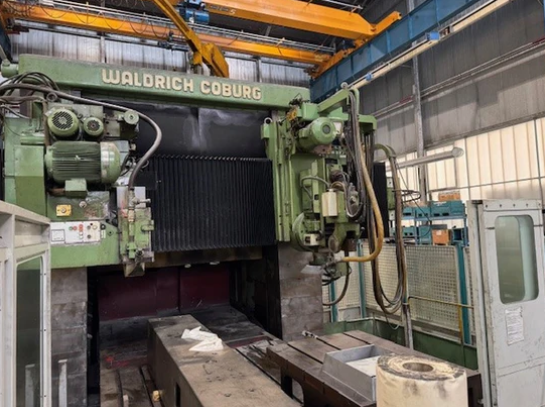

Waldrich Coburg 30-10 S 4035

Table length 8000 mm
Grinding length 7000 mm
Grinding width 2200 mm
Table load max 20000 kg
Distance between columns 2290 mm
Tangential grinding head P30
Diameter of grinding wheel 630 mm
Width of grinding wheel 150 mm
Grinding wheel speed fixed 930 rpm
Universal grinding head U10
Diameter of grinding wheel 500 mm
Width of grinding wheel 60 mm
Grinding wheel speed from 1100 rpm
Grinding wheel speed up to 3500 rpm
Indexing range 110°
Power 10 CV
Grinding spindle motor 30 CV
Machine length 15050 mm
Machine width 5600 mm
Machine height 4500 mm
