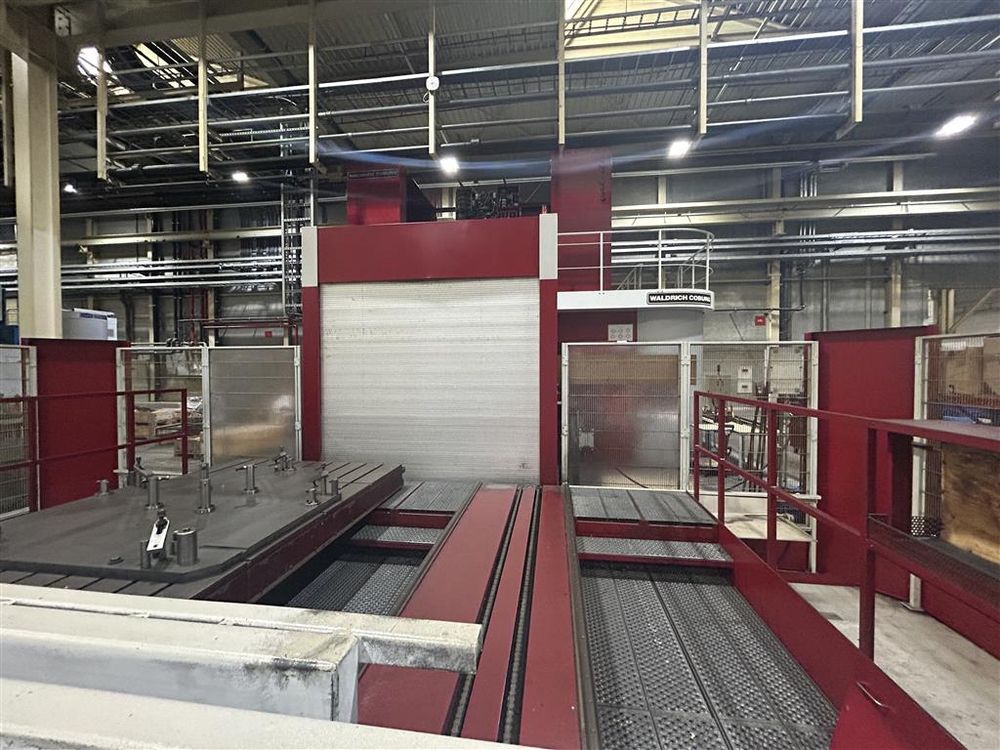

Waldrich Coburg VALUTEC 6000 rpm

Ref : 2735735-3-GO

Condition : Used

Manufacturer : Waldrich Coburg

Model : VALUTEC

Spindle Size : -

Spindle Speed : 6000 rpm

Year(s) : 2003

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 4000 mm
Y-axis travel: 3000 mm
Z-axis travel: 1500 mm

Control: Siemens 840D Powerline
Tool holder: HSK-A100
Spindle speed range: 5–6000 rpm

Max spindle torque: 800 Nm
Max tool weight: 30 kg
Max tool diameter: 250 mm
Max tool length: 500 mm

Table width: 2000 mm
Table length: 3000 mm
Max table load: 12000 kg
Clearance height: 1550 mm
Clearance width: 2500 mm
Power requirement: 30 kW

Machine dimensions (L x W x H): 9500 x 6700 x 6200 mm
Machine weight: not specified
