Walker JACKETED SANITARY PRESSURE VESSEL

Ref : 654203-8-MT
Condition : Used
Manufacturer : Walker
Capacity : -
Short Description : JACKETED SANITARY PRESSURE VESSEL
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Apr. 2020

BRAND : WALKER

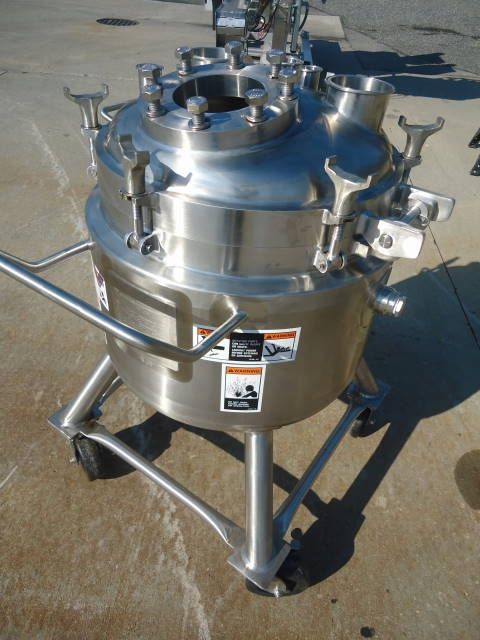

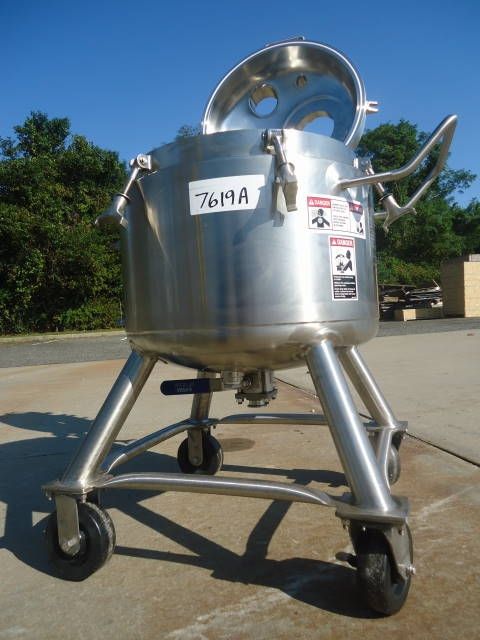

JACKETED SANITARY PRESSURE VESSEL

- 1-USED WALKER 65 LITER (APPROX. 16 GALLON) TYPE 316L STAINLESS STEEL SANITARY JACKETED PRESSURE VESSEL.
- JACKET RATED 50 PSI @300 DEGREES F AND INTERNAL PRESSURE
RATING IS 50/-15 PSI @ 300 DEGREES F, CODE STAMPED.
- VESSEL INTERNAL DIMENSIONS APPROX. 21 IN. DIAMETER X 14 IN. ON THE STRAIGHT SIDE PLUS
DISHED BOTTOM HEAD AND DISHED TOP HEAD WITH QUICK OPENING SWING BOLTS.
- ON LEGS WITH CASTERS, VESSEL HAS APPROX. 1-1/2 I N.
- CENTER BOTTOM DISCHARGE WITH HAND OPERATED VALVE.
- TOP OPENINGS INCLUDE TWO (2) APPROX. 4 IN. DIAMETER
- TWO (2) 1-1/2 IN. DIAMETER AND ONE (1) 2 IN. DIAMETER TRI-CLAMP OPENINGS
- AS WELL AS APPROX. 10 IN. DIAMETER OFF CENTER FLANGED OPENING
FOR MOUNTING TO AGITATOR (AGITATOR NOT INCLUDED).
