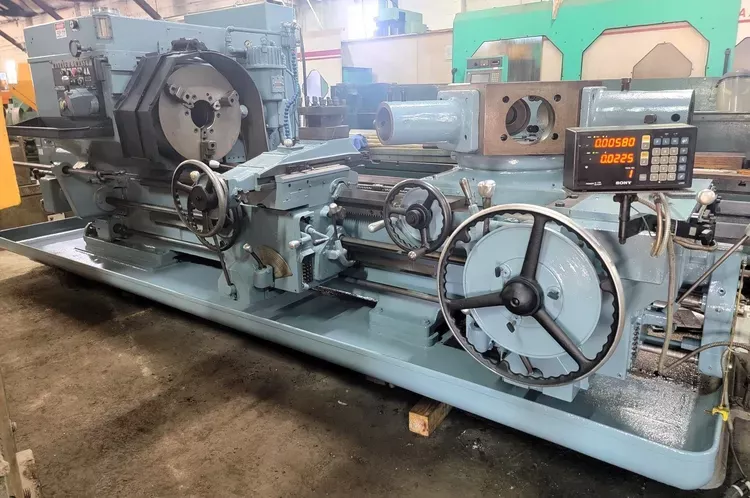

Warner & Swasey Engine Lathe 526 RPM 4A

Hole through spindle: 9-1/4"
Square head with hydraulic preselector
3-jaw chuck diameter: 24"
Chuck bore: 7"
Rapid traverse on both aprons
Maximum swing over ways: 28-1/4"
Maximum swing over carriage: 22-7/16"
Maximum distance spindle to turret face: 80"
Reverse feed on both aprons
Spindle speeds: 32 (10 to 526 RPM)
Flat seat square turret toolpost (open type)
Longitudinal feed dials on both aprons
Coolant pump and piping
Way covers and guards
Weight: 22,000 lbs
Main motor: 30 / 60 HP
Power: 440V, 3-phase
Cross sliding 6-sided turret
Turret feeds: 16 (.005 to .167 IPR)
Cross slide feeds: 16 (.003 to .090 IPR)
Flange holders: 3
Overall dimensions: approx. 7' F-B x 17' L-R x 6.5' H
