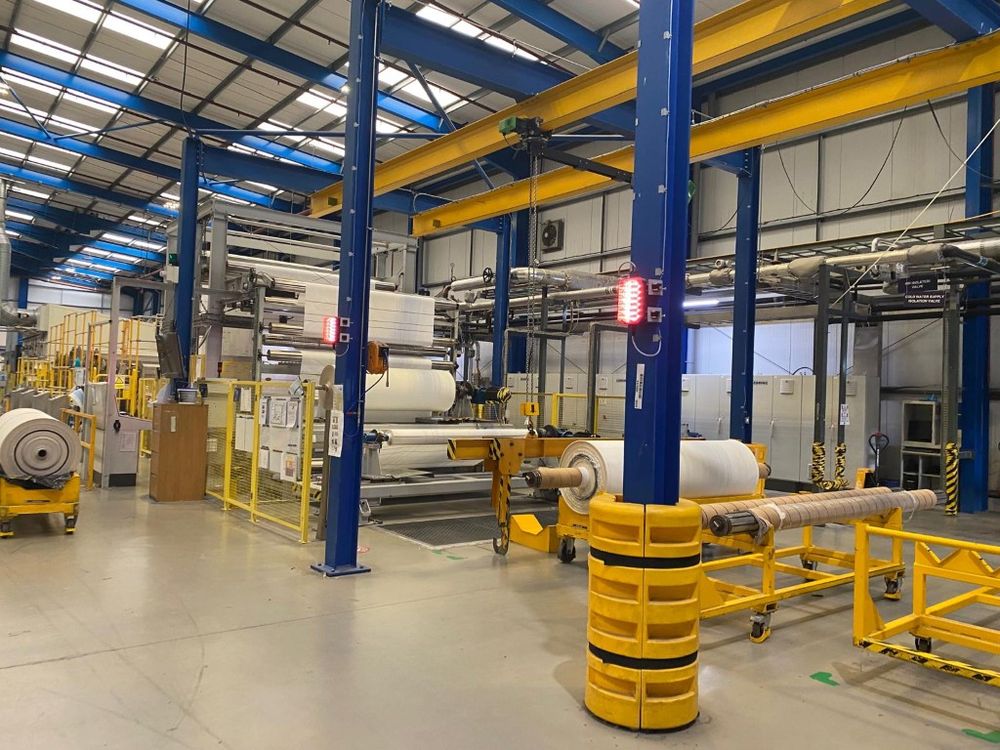

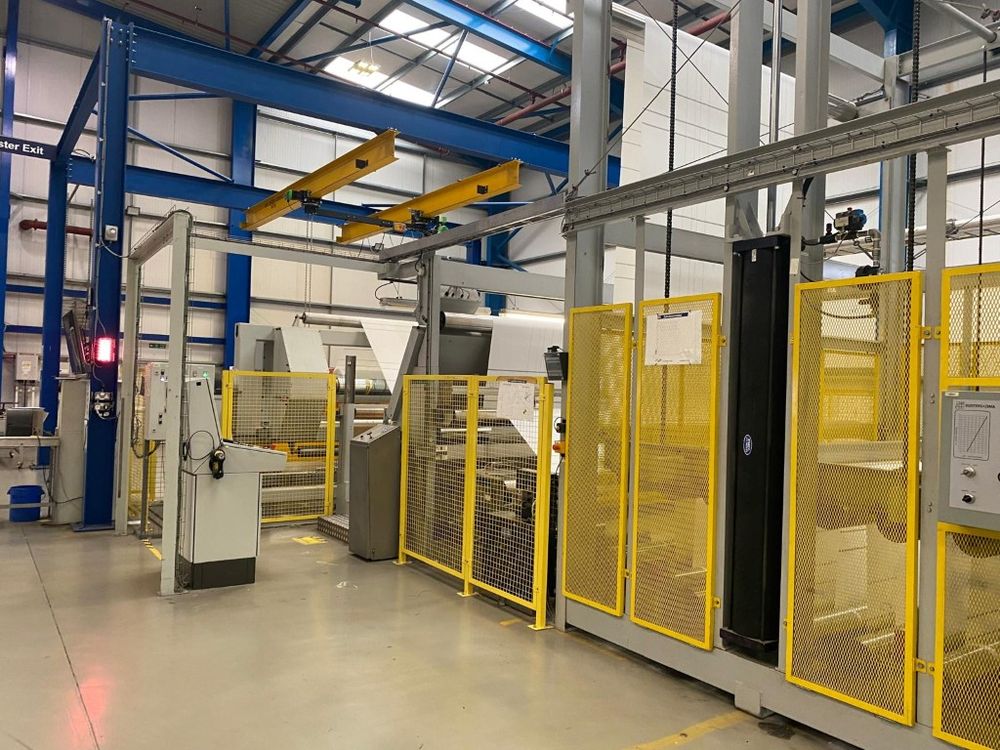

washing range

MAXIMUM MATERIAL WIDTH: 3.3 METER (OPW)
ROLL FACE: 3.5 METER
WEB: 100% NYLON AND POLYESTER,
DOUBLE LAYER WEAVES ( 350 AND 450DTEX OPW)
MAX. ROLL SIZE: 1 METER OD AND 2,800 KG
MATERIAL WEIGHTS: 480-550 GSM
OPW PRODUCTION: 7 DAYS WEEK/24 HR
PRODUCTION SPEEDS: 30 MPM MAX.
WEB TENSION DESIGN: 1000 N (100 KG)
MAX. RANGE GEAR-IN SPEED: 55 MPM
PLANT VOLTAGE: 415/3/50 (TRANSFORM TO 400V FOR DRIVES)
CONTROL VOLTAGE: 24 VDC

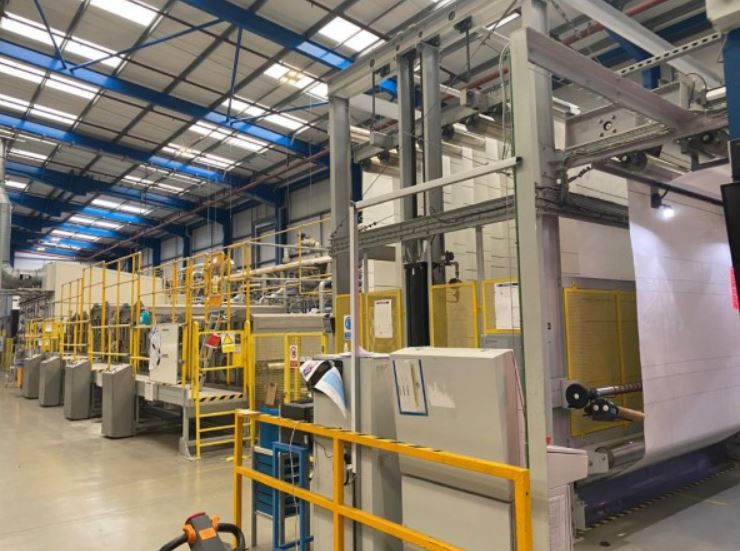

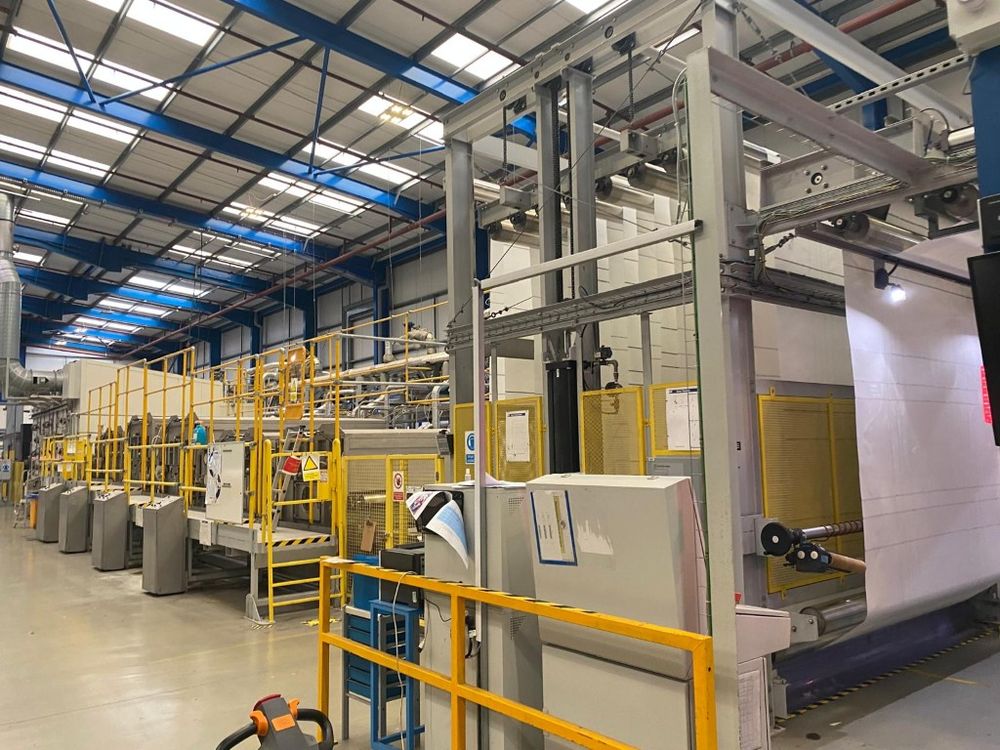

ENTRY WITH DUAL DRIVEN CENTER UNWIND BATCHES SS PATH ROLLERS
WITH LOAD CELL TENSION, CONTROL, MERROW TRAVERSING SEWING MACHINE HIGH ENTRY FRAME
WITH E+L DOGAL CENTRALIZING GUIDER, ACCUMULATOR 60 M CLOTH CONTENT.

WASH BOX NO. 1 INDIRECT STEAM FIVE DRIVEN TOP ROLLERS 30 M CLOTH CONTENT, DOUBLE PASSAGE

WASH BOX NO. 2 INDIRECT STEAM FIVE DRIVEN TOP ROLLERS 30 M CLOTH CONTENT ONE 5 TON TWO BOWL SQUEEZE PADDER

WASH BOX NO. 3 DIRECT STEAM TO VACUUM SLOTS FOR DRIVEN TOP ROLLERS 21 M CLOTH CONTENT ONE 5 TON TWO BOWL SQUEEZE PADDER.

WASH BOX NO. 4 DIRECT STEAM TO VACUUM SLOTS FOR DRIVEN TOP ROLLERS 21 M CLOTH CONTENT
WASH BOX NO ,5 DIRECT STEAM FIVE DRIVEN TOP ROLLERS 30 M CLOTH CONTENT ONE 5 TON TWO BOWL SQUEEZE PADDER.
EXIT FROM WASHING RANGE TO VAC SLOTS FIND TRIM COMPENSATOR 60 M CLOTH ACCUMULATOR.

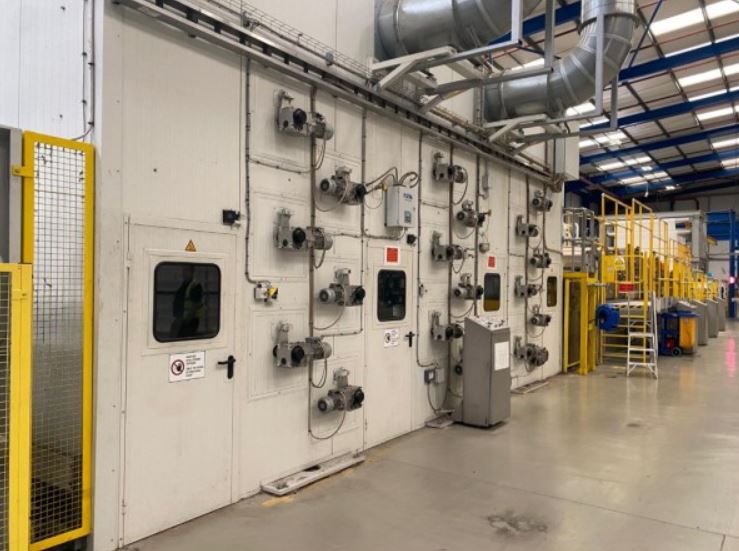

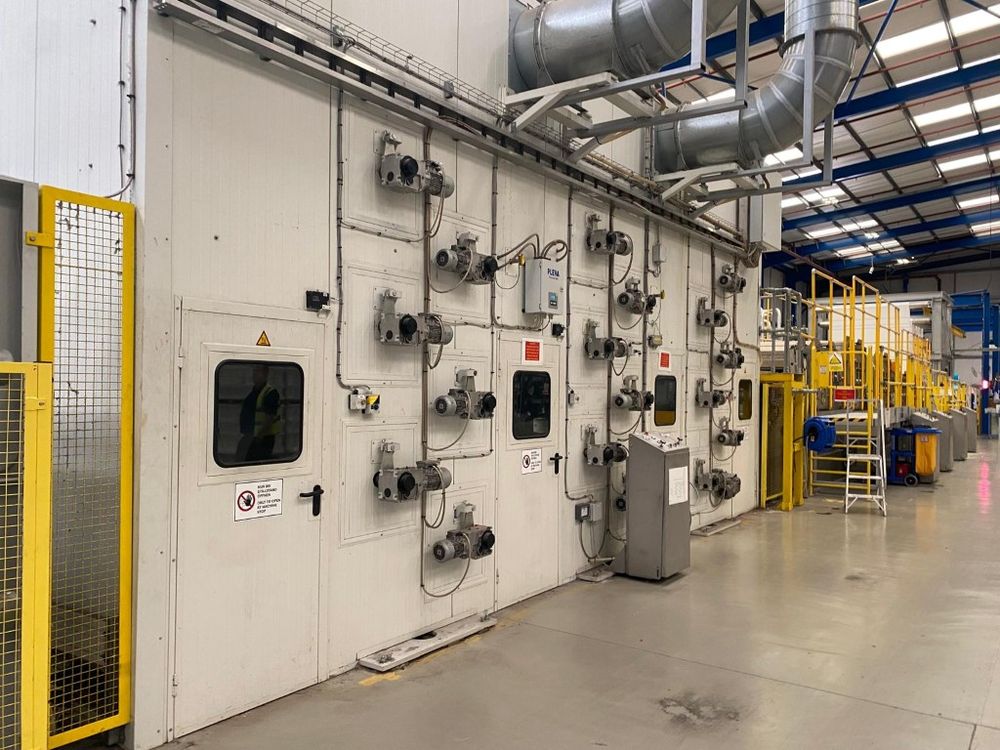

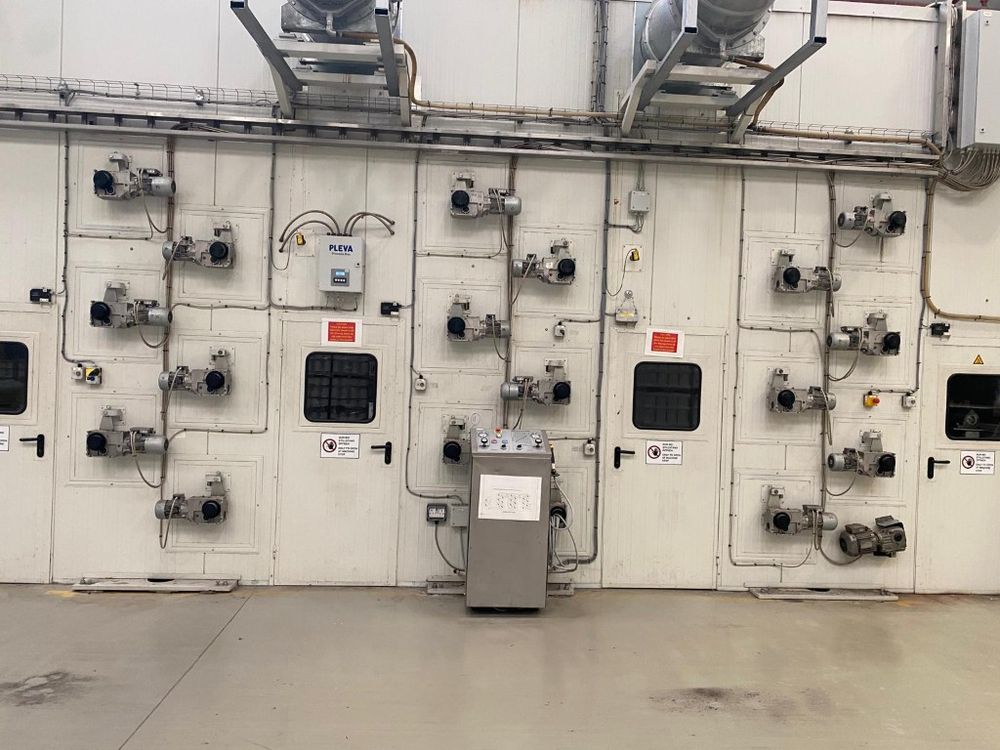

WUMAG CYLINDER DRYING RANGE THREE STACKS OF SIX 800 MM DIAMETER
TOTALLY ENCLOSED WITH TWO EXTRACTION FANS
EXIT WITH TWO COOLING CYLINDERS AND CHILLER . 60 M CLOTH ACCUMULATOR
EXIT WITH LOAD CELL COMPENSATOR AND ENL DAL CENTRALIS GUIDE ONE INSPECTION TABLE
WITH OPERATORS PLATFORM.
EXIT WITH NONSTOP TURRET CENTER WINDER.
COMPLETE WITH CHEMICAL DOSING AND WATER TREATMENT PLANT
