Water bottling line for big bottles

(5 litres and 5 gallons) – 600 bph
600 bottles per hour

2 formats :
• 5 litre PET bottles
• 5 gallon (19 litres) polycarbonate jugs

Preform weight for the 5 litre bottle : 94 gr

The line includes :
• Manual blow moulder for the production of the 5 litre bottles
Built in by Ria Plastix (Hungary) type Petria 1000- 2
•
o Oven
o 2 cavity blow moulder
o Chiller OZON HUTOTECHNIKA type FH-Q-5500 E
• Ventilation system (to have positive pressure in the filling room) Pro KLIMA (Croatia) 5000m3/hour
• Decapper BARDI type DT1 frpm 2002 for the 5 gallons (with control and ejection)
• BARDI bottle washer (dimensions L x l x H: 590 x 220 x 265cm) Type LS12-3R
•
o For 5 litre : Water rinsing + ozone injection (the ozone production machine is not for sale)
o For 5 gallons : Pre-sinsing with hot water + Detergent + clean water + water with ozone

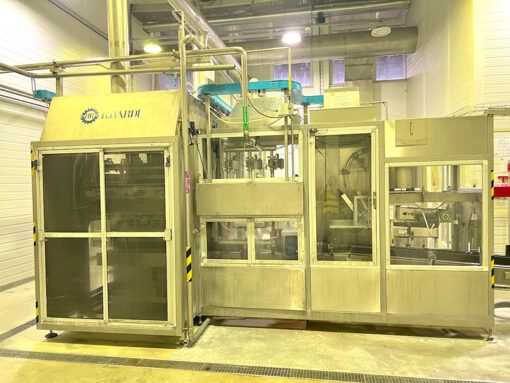

• 3 head filler from BARDI type RL3 TPI
With positive air flow FLUXA FILTRI type LVX
• Mobile cap feeder (feeds both the 5 gallon capper and the 5 litre capper)
• Capper for 5 gallons
• Capper Kompass for 5 litres. Type STAR ONE PF BIG
• Labeler for the 5 litre bottles built by NOVEX Solutions type ALS204-LH
• Pack conveyors built by FMT
• Manual application of the caps (5 litre bottles) or sleeve (5 gallon)
• Electrical retraction oven for the 5 gallon sleeves built by PECON (Croatia)
• Manual palletisation for the 5 litres bottles
• FMT Palletiser for the 5 gallons (palettes 1200×1000 with plastic crates 8 jugs x 4 layers) type PB1000
