Waterbury - Farrel SLITTING LINE Coil width: 18 in

Max material thickness: 2.625 in
Line capacity: 2500 lb
Line direction: right to left

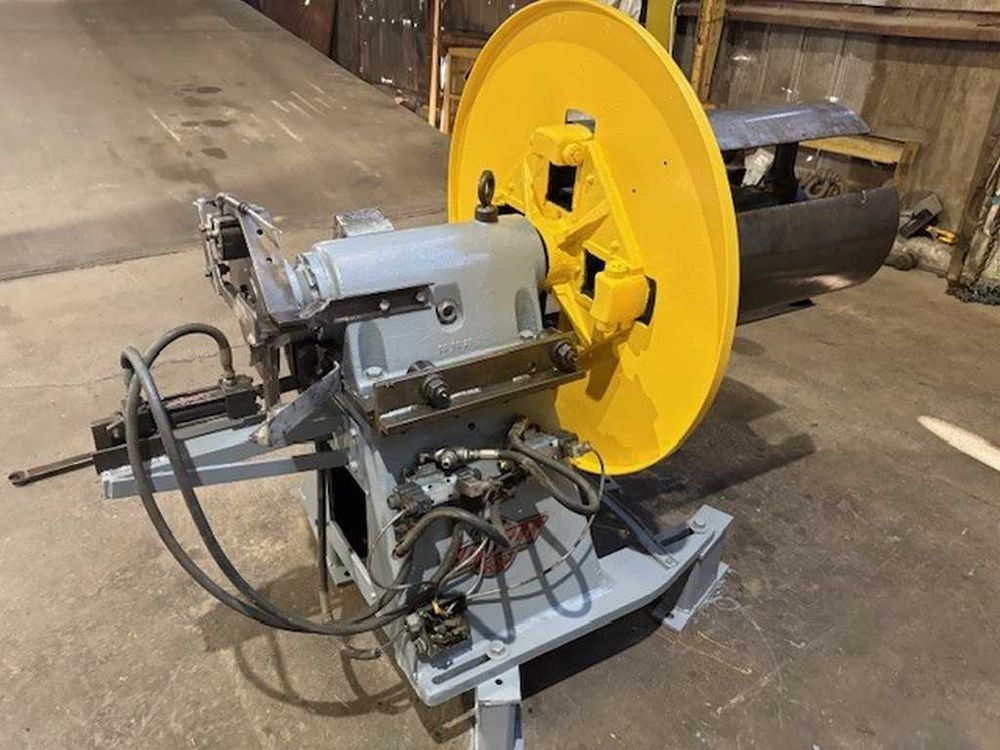

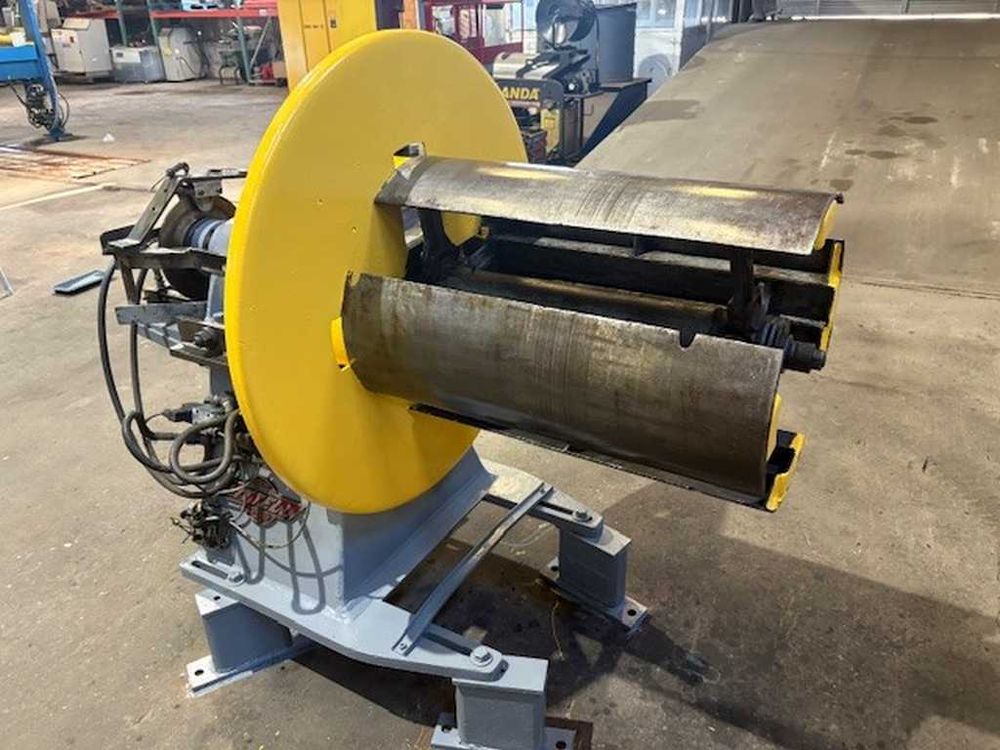

Uncoiler capacity: 2500 lb
Coil ID range: 16–20 in
Manual link type expansion
Mandrel face width: 32.5 in
Air operated disc brake
Sliding base
Hydraulic cylinder actuated
Back plate diameter: 42 in
Uncoiler passline height: 39.5 in
Uncoiler dimensions: 80 x 42 x 60 in

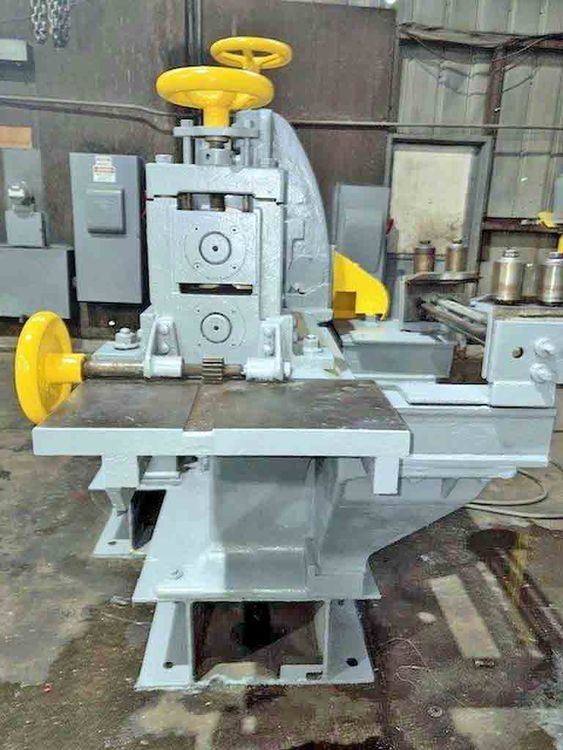

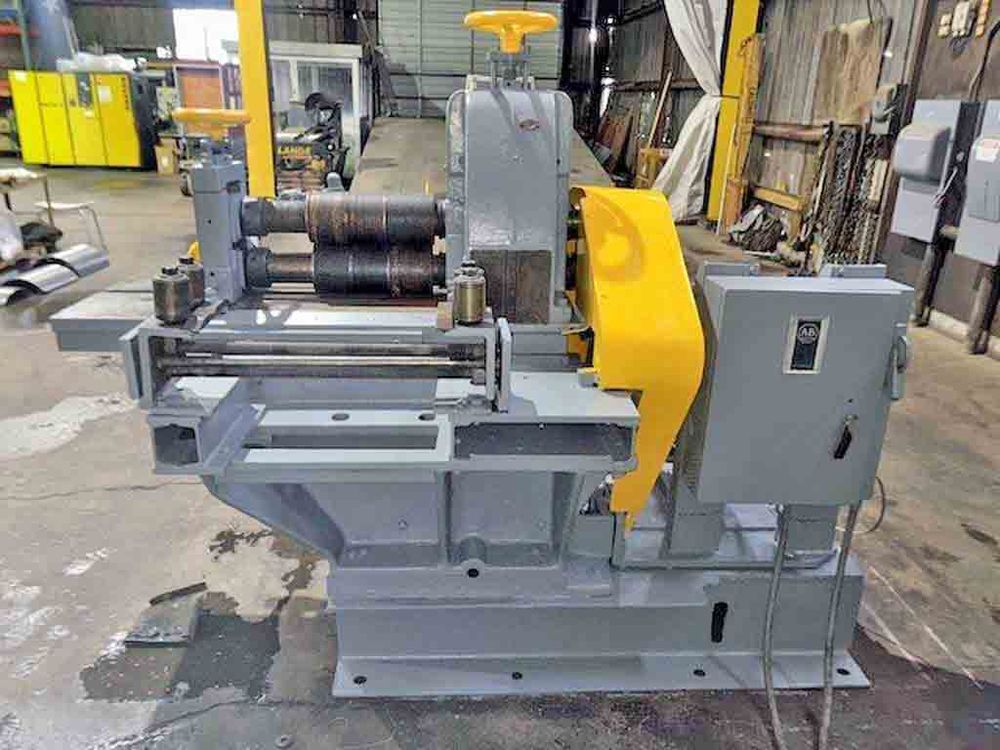

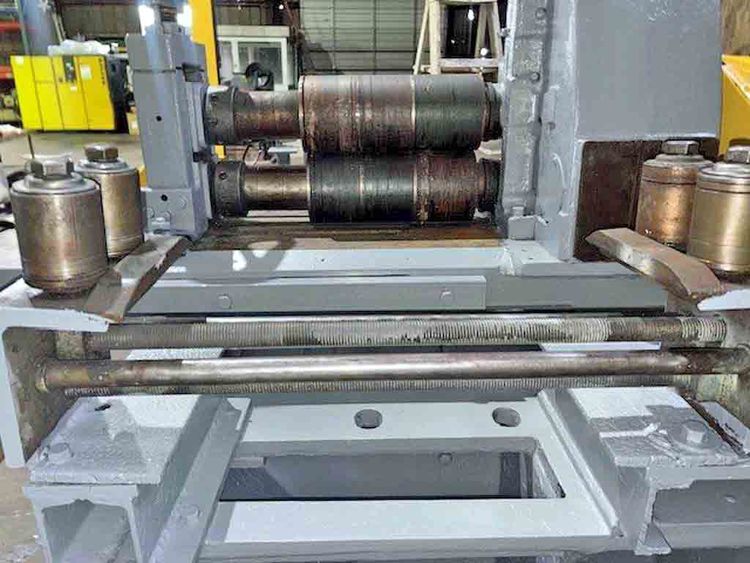

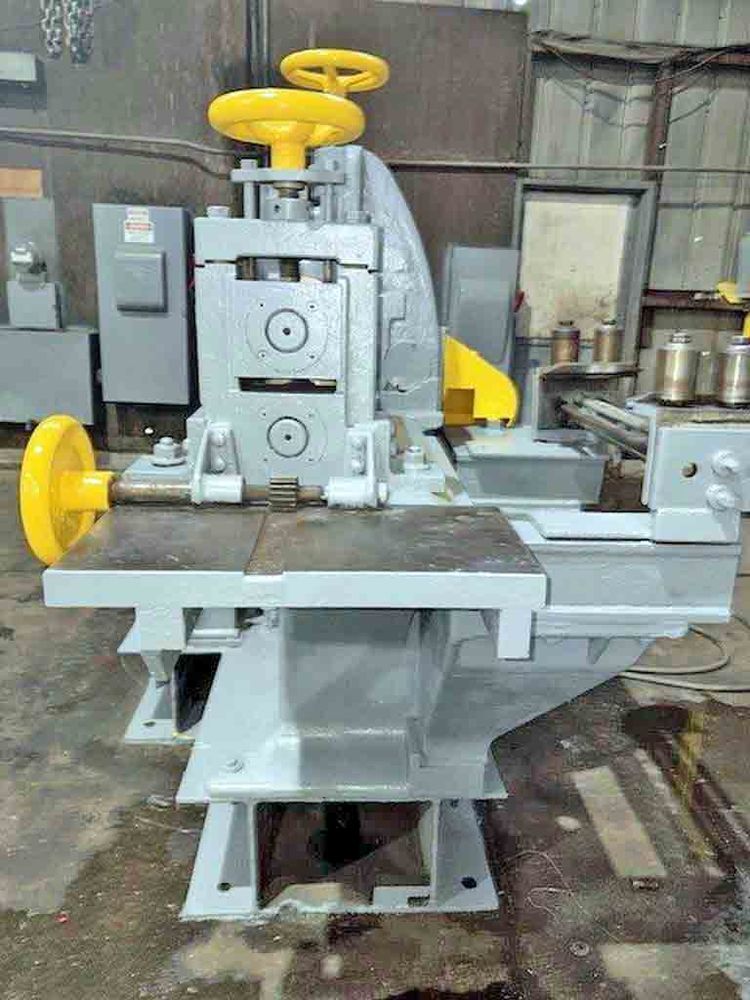

Slitter arbor diameter: 2.625 in
Slitter arbor face: 19 in
Manual parallel arbor adjustment
Bottom arbor driven

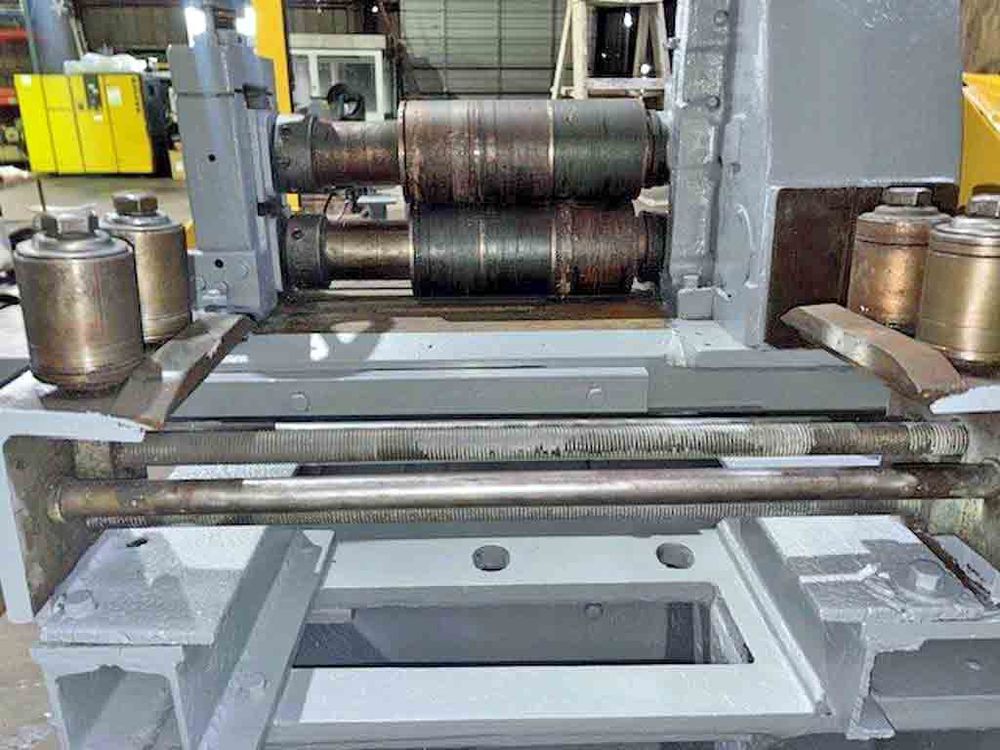

Entry passline rolls
Entry side guides
Manual width adjustment
Slitter passline height: 49 in
Threading drive motor: 0.75 HP
Threading drive speed: 1725 rpm
Threading drive electrical: 115/208–230V
Tooling included

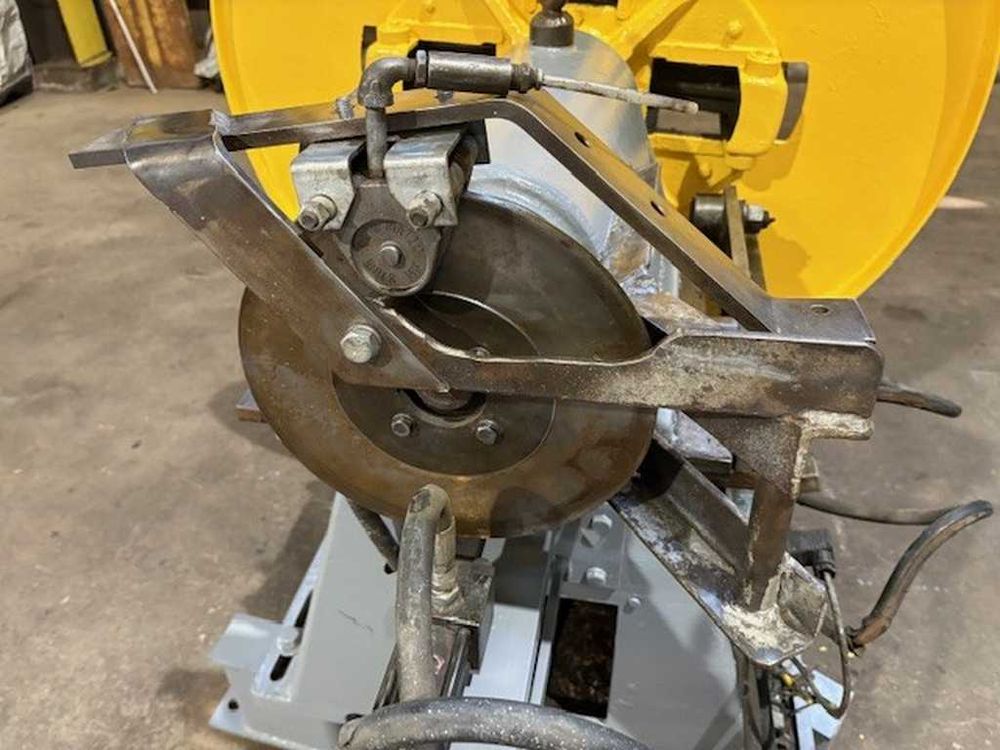

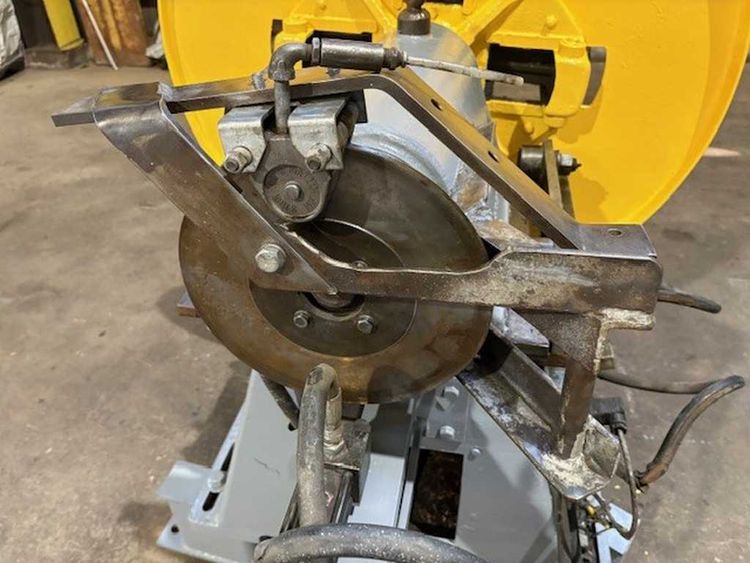

Scrap winder hydraulic motor driven
Scrap ball capacity: 6 in width x 36 in diameter
Manual scrap ball removal
No oscillating wind device
Scrap winder dimensions: 44 x 41 x 47 in

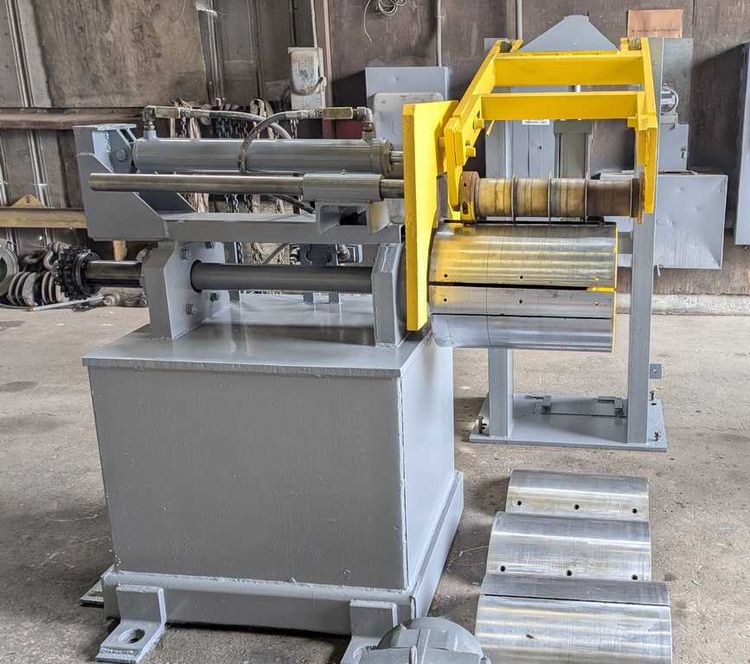

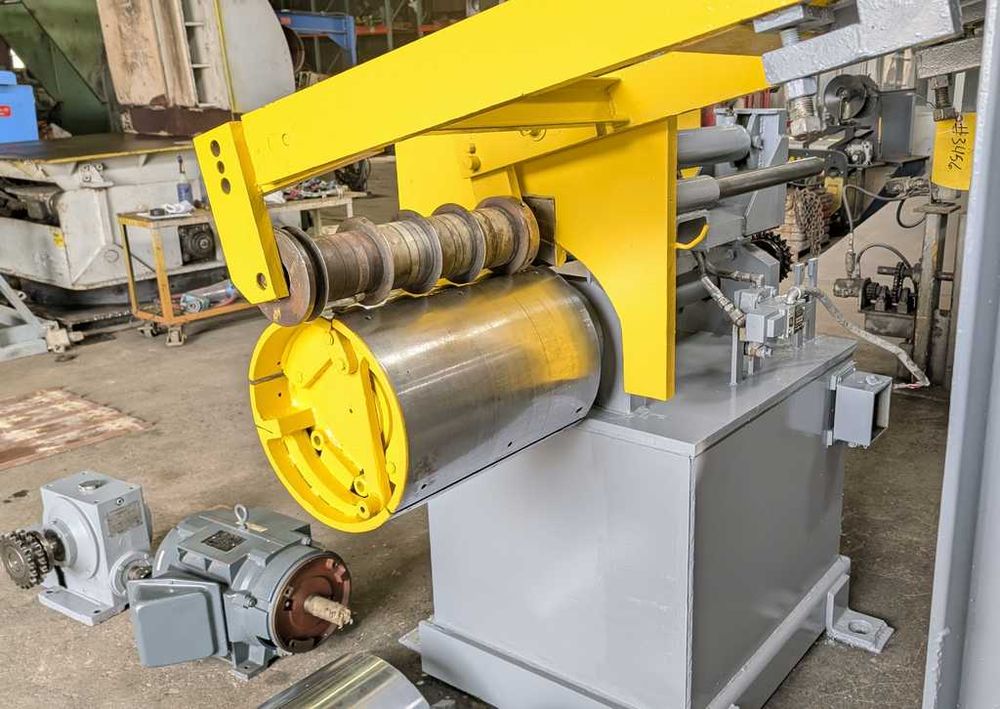

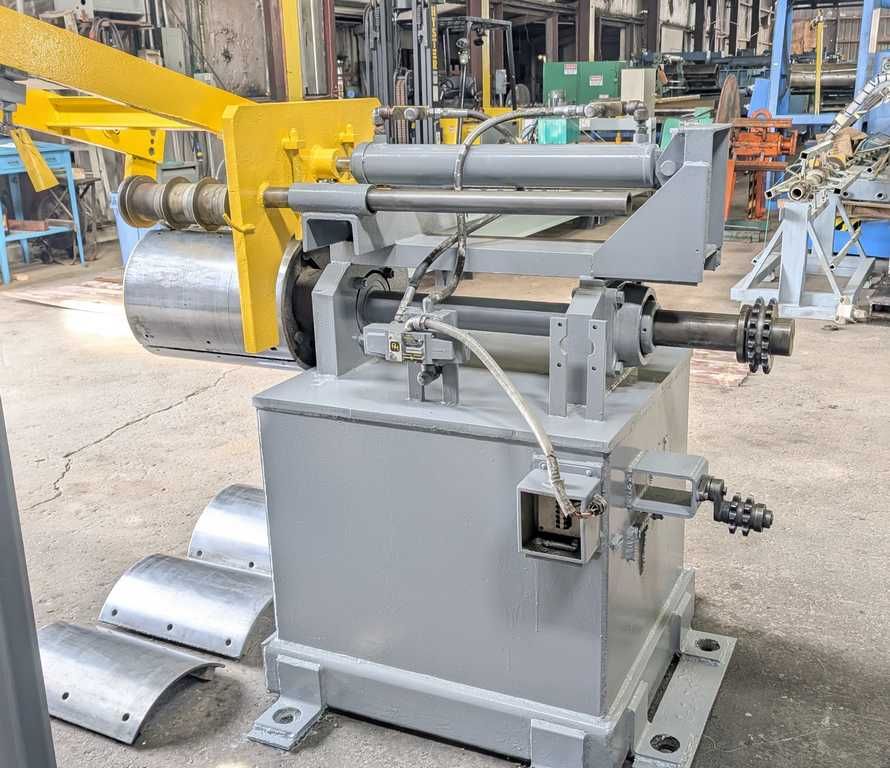

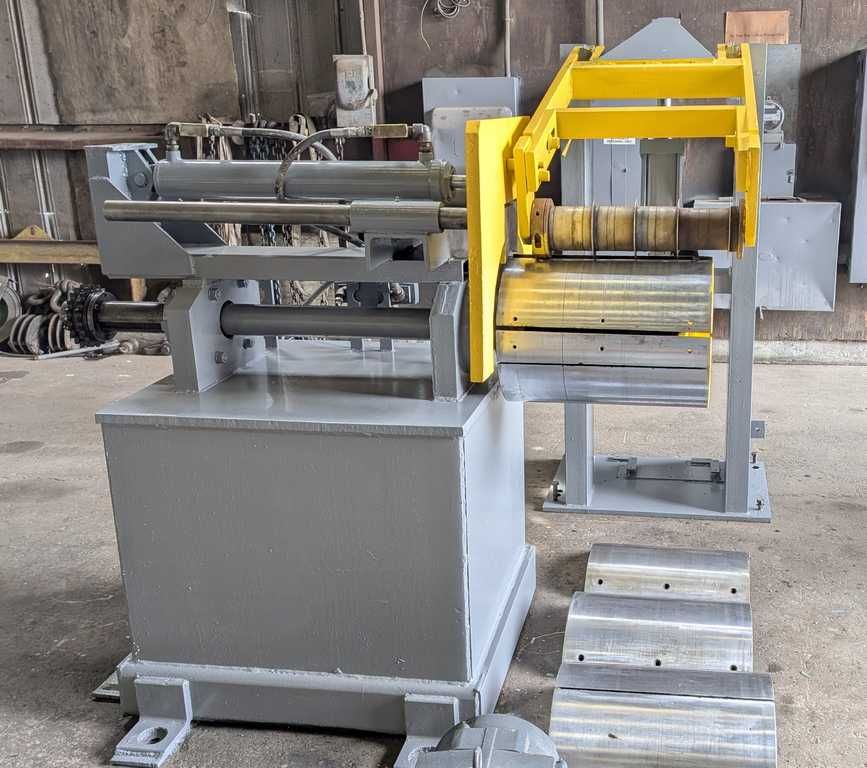

Recoiler drum diameter: 16 in
Recoiler drum face: 21 in
Manual expansion
Bolt on pads diameter: 20 in
Material slot without gripper
Main shaft diameter: 3.5 in
Recoiler passline height: 39 in
Hydraulic pushoff
Recoiler drive motor: 20 HP
Recoiler motor speed: 1165 rpm
Recoiler electrical: 230/460V
Right angle reducer ratio: 17.28:1
Recoiler dimensions: 70 x 48 x 61 in

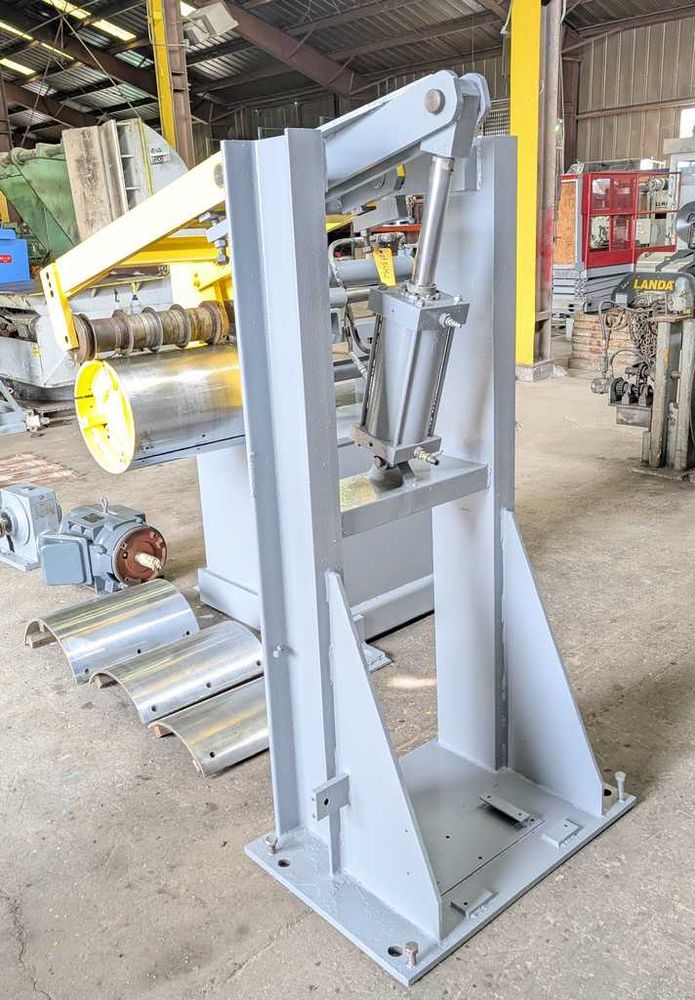

Overarm separator free standing
Tooling shaft length: 19.5 in
Hydraulic cylinder operated
Overarm separator dimensions: 70 x 35 x 73 in
