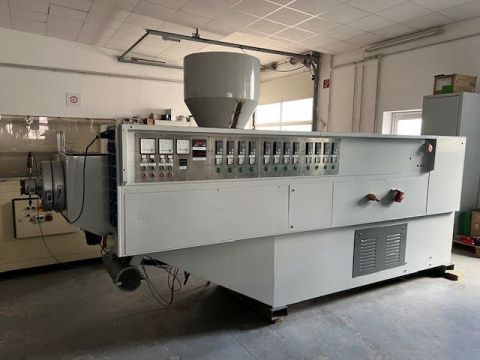

Weber DS-85

Twin-screw extruder, parallel
Screw geometry: for PVC-hard profiles
crew diameter: 2 x 85 mm
Screw length: 17 x D
Screw speed: max. approx.30 rpm
Screw torque: 10000 Nm
Motor power: 3.8 – 23.0 kW
Drive motor: commutator motor Elektra Faurndau
Cylinder heating/cooling zones: 4/2 (air cooling with fan)
Tool heating zones: 8
Temperature control: 12 x digital temperature controllers PMA KS40
Accessories: Mass pressure sensor and mass temperature sensor
Connected load: approx. 60 kW (without tool)
Extrusion height: 1100 mm
Output capacity: approx. 150 – 180 kg/h for PVC-hard profiles
Accessories: Material hopper and connection flange
Accessories: Vacuum pump (1.1 kW) incl. material separator
Dimensions: 4500 x 1200 x 2100 mm (LxWxH), incl. material hopper
Total weight: approx. 4000 kg
Note: The electrical control cabinet was completely renewed
approx. 3 years ago. Since then, the extruder has only been in
operation for 216 hours.
Condition: The extruder was repainted (light gray, RAL 7035)
and checked for function.
