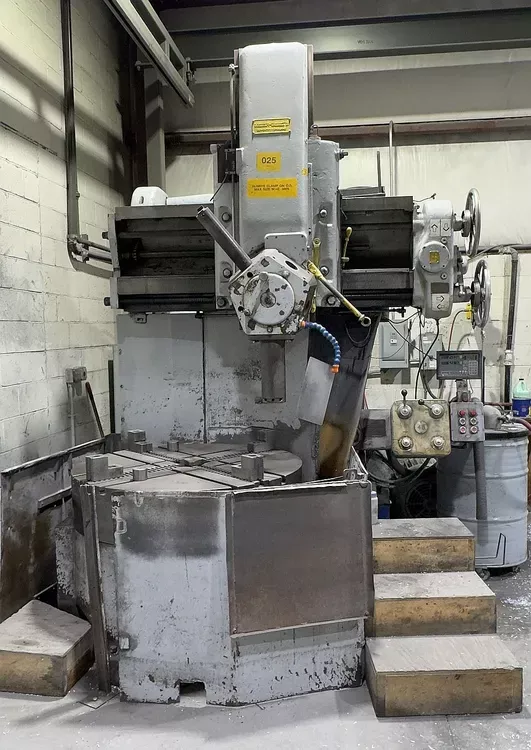

Webster & Bennett 48" DH Diameter of Chuck: 48"

Webster & Bennett 48" DH

Admits Diameter: 53"
Type "U" Tool Holder Length: 45"
Type "B2X" Tool Holder Length: 53"
Height Under Turret: 35"
Height Under Cross-Slide: 24"
Vertical Feed of Turret: 26"
Max Length of Hole Bored (Bore > 28"): 24"
Max Length of Hole Bored (Bore ≤ 28"): 16"
Diameter of Spindle Bore: 3.25"
Horizontal Feed of Turret, Chuck Center Outwards: 32"
Diameter of Turret Holes: 3"
Total Height Required: 119"
Floor Space Required - Front: 89"
Floor Space Required - Side: 115"
Distance from Chuck Center to Junction Face: 24.5"
Distance from Chuck Center to Front or Cross Slide: 15.125"
Number of Speeds: 12
Number of Feeds: 12
Driving Pulley Speed (RPM): 1000
Horsepower of Main Motor: 20 HP
Horsepower of Rapid Power Traverse Motor: 3 HP
Minimum Overall Height for Transit: 97"
Approximate Weight (Excluding Electrical): 19,025 lbs
