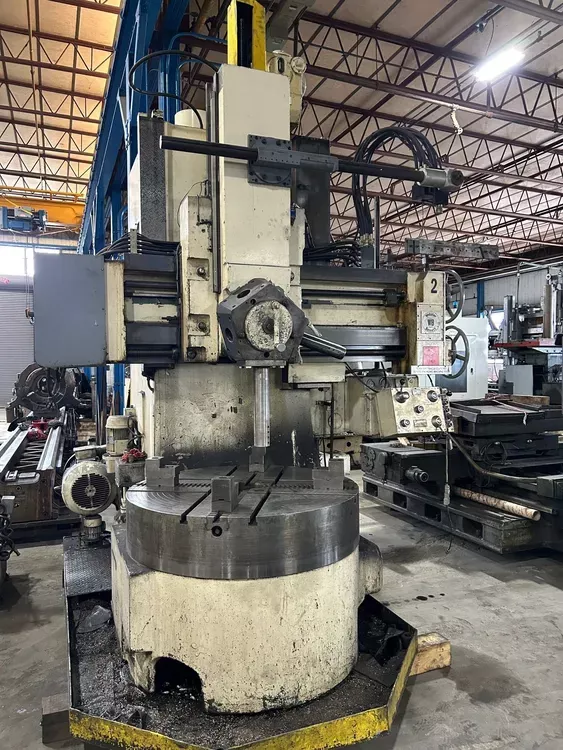

Webster & Bennett 48EV Swing: 60 in

Table diameter: 48 in
Maximum work height: 61 in
Admits in diameter: 59 in
Maximum diameter turned for turret travel: 52.5 in
Maximum diameter turned for toolholder length: 56 in
Minimum height under cross slide: 26 in
Maximum height under cross slide: 48 in
Vertical adjustment of cross slide: 22 in
Maximum height under turret: 59 in
Vertical travel of turret slide: 38 in
Maximum boring length: 28 in
Spindle bore diameter: 3.75 in
Horizontal feed of turret: 35 in
Number of speeds: 12
Speed range: 4.5–100 rpm
Main motor power: 40 hp

Sony 2-axis digital readout
Tracer attachment
Coolant pan
4-jaw chuck with extensions
1 boring bar

Floor space required front: 95 in
Floor space required side: 132 in
Machine weight: 24,640 lb
