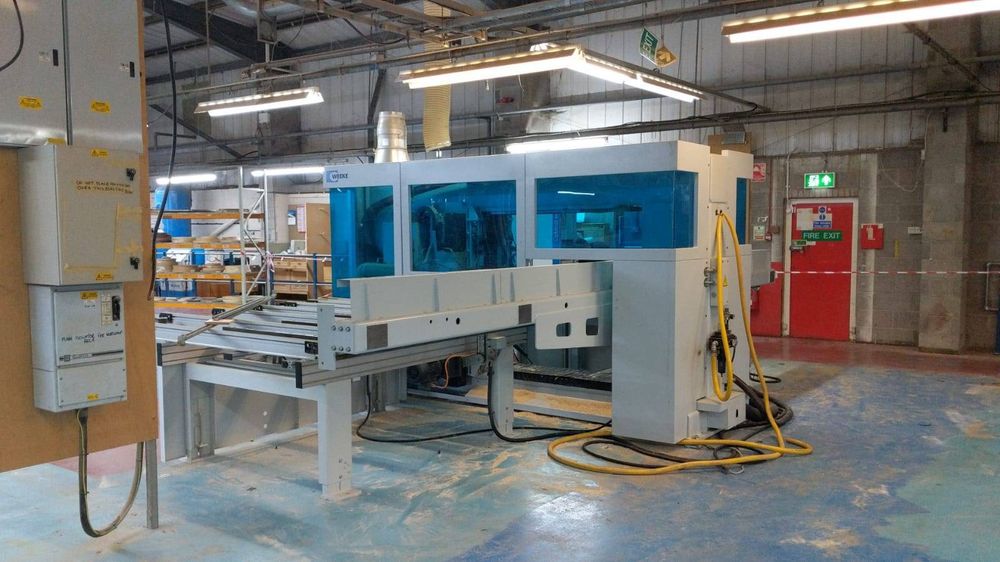

Weeke BHX 500

Vertical drilling unit with drilling spindles (individually callable, with a variable speed range), 32 spindles each arranged in the upper and lower processing slide.
Mechanical spindle lock for reliably maintaining the drilling depth.
Travel range: see enclosed tooling plan
• Lift in Z-axis direction: 60 mm
• Drilling depth: max. 38 mm
• Direction of rotation: right/left
• Speed: 1,500 rpm to 7,500 rpm, frequency-controlled
• Drive: 2 x 2.7 kW
• Bore for drill mounting: d = 10 mm
• Total length of drill: 70 mm
• Drill diameter: max. 35 mm
• Distance between spindles: 32 mm
• Spindle type: individually controllable

Horizontal drilling unit with drilling spindles (individually called up by the program), 10 spindles each arranged in the upper and lower machining carriage.
Travel range: see enclosed tooling plan
• 8 spindles each in X-direction
• 2 spindles each in Y-direction
• Drilling depth: max. 38 mm
• Drilling height in Z-direction: 38 mm from workpiece edge
• Direction of rotation: right/left
• Speed: 1,500 rpm to 7,500 rpm with frequency control
• Drill mounting bore: 10 mm
• Total length of drill: 70 mm
• Drill diameter: max. 20 mm
• Spindle type: individually callable

The groove saw is located in the upper and lower work support for machining in the X and Y axes with a rotation of 0-90 degrees.
Travel range: see enclosed tooling plan
• Sawing depth 30 mm
• Max. chipping area 70 mm2
• Speed ​​1,500 - 7,500 rpm with frequency regulation
• Tool diameter 125 mm
• Saw blade thickness max. 5 mm

The milling spindle is located in the upper and lower work support respectively, suitable for clamping tools with a shank.
Travel range: see enclosed tooling plan
• Tool clamping for a shank diameter of 25 mm.
• Tool diameter max. 60 mm
• Tool shank length min. 65 mm / max. 95 mm
• Tool weight max. 2.5 kg
• Manual tool clamping, ETP 25 hydraulic quick-release system
• Direction of rotation: right / left
• Speed: 6,000 rpm to 18,000 rpm, infinitely variable
• Drive: AC motor with frequency control
• Power at the tool: up to 5/6 kW (S1 / S6-50%) when working with constant / variable load

Number of spindles
A total of 84 independent spindles, 42 on the upper head and 42 on the lower.
Each working head contains:
– 32 independent vertical spindles
– 8 independent horizontal spindles in the X axis
– 2 independent horizontal spindles in the Y axis

Automatic central lubrication
On all moving axes with NC control and brushless motor
