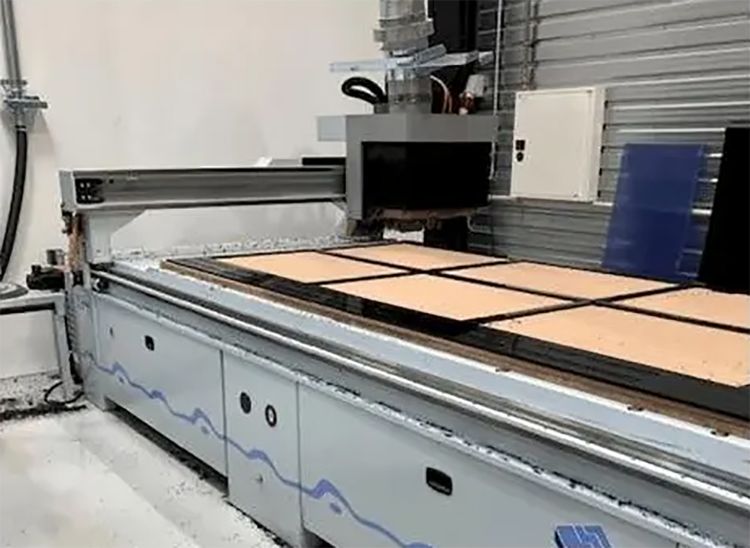

Weeke Optimat BHP Vantage 34M 3-Axis

Number of spindles: 2
Number of axis: 3
X-Axis Movement: 3780 mm
X-Axis Rapid Traverse: 96 m/min
Y-Axis Movement: 1951 mm
Y-Axis Rapid Traverse: 96 m/min
Z-Axis Movement: 155 mm
Z-Axis Rapid Traverse: 25 m/min

Work table dimensions: 3100 x 1550 mm
Max workpiece thickness: 80 mm
Design: stable gantry design with dust-protected linear guide system
Drive technology: maintenance-free motors and automatic central lubricationTools
Drilling Unit Specs:
Spindle Speed: 1500 - 7500 rpm
Drive Power: 2.7 kW
Max Drill Diameter: 35 mm
Milling Spindle Specs:
High Spindle Speed: 1250 - 24000 rpm
Max Power: up to 7.5 / 9 kW in continuous/intermittent operation (S1/S6-50%)


Control Unit
Control System: Modern PC-based control
Hardware:
Operating System: Windows XP Embedded
TFT Flat Screen: 17 inches
Connectivity: USB, EtherNet 10/100 MBIT RJ45


Table
Matrix Table: 10'/5', with grooves for templates and vacuum suction cups
Vacuum System: 500/600 m³/h, 50/60 Hz

Finally, the machine offers a comprehensive software suite for CNC programming and operation, including woodWOP and 3D NC simulation capabilities.
