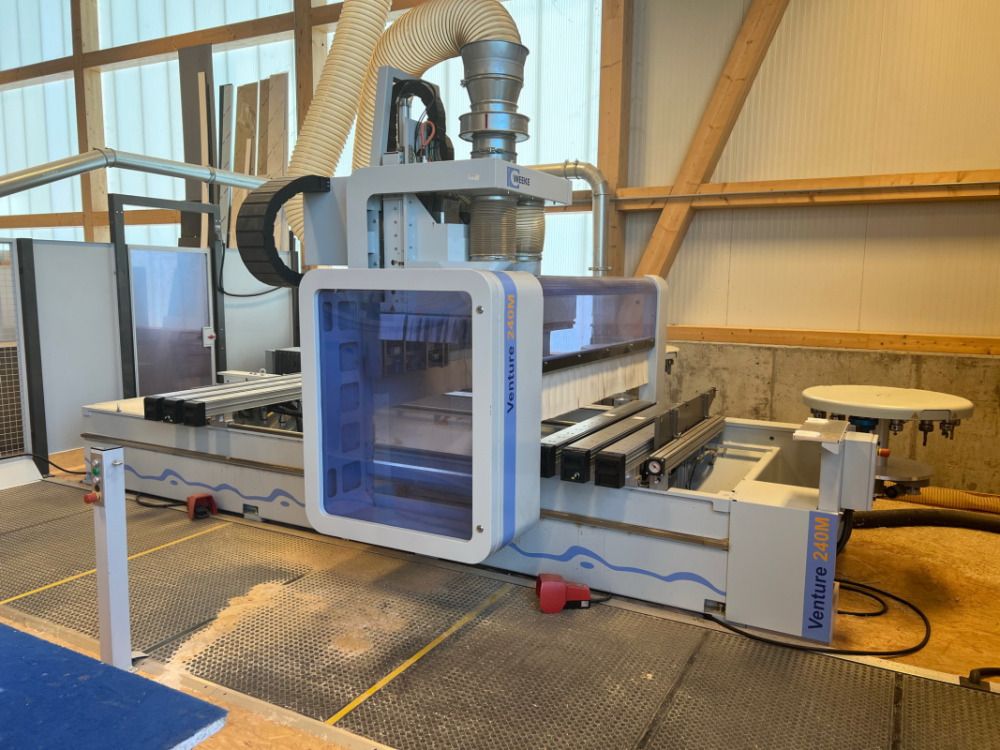

Weeke BMG 211 VENTURE 240 M

Working range in the X axis: 3250 mm
Working range in the Y axis: 1500 mm
Working range in the Z axis: 125 mm (225 mm without vacuum cups)
Electric spindle: 1 pc.
C axis – rotary axis: yes
Tool magazine: 28 positions: 14 positions rear // 14 positions side
Vertical drills: 21 pcs.
Horizontal drills: 10 pcs.
Horizontal drills in the X axis: 6 pcs.
Horizontal drills in the Y axis: 4 pcs.
Software: WoodWop 6.1
Control: POWERCONTROL PC 85 T
Maximum speed: 24,000 rpm. Mat securing device at the front of the machine // protective grid on the side of the machine // wall mount at the rear of the machine
Supports CAD formats - DXF. Yes
Vacuum pump 100 m3/h
CE mark Yes

TECHNICAL DATA:
LED display showing suction cup position
Grooving saw in X/Y direction, 90° rotatable
12 kW milling spindle: new in 01/2025 with 360° interpolated C-axis, liquid cooling: C-axis designed for Flex 5+
