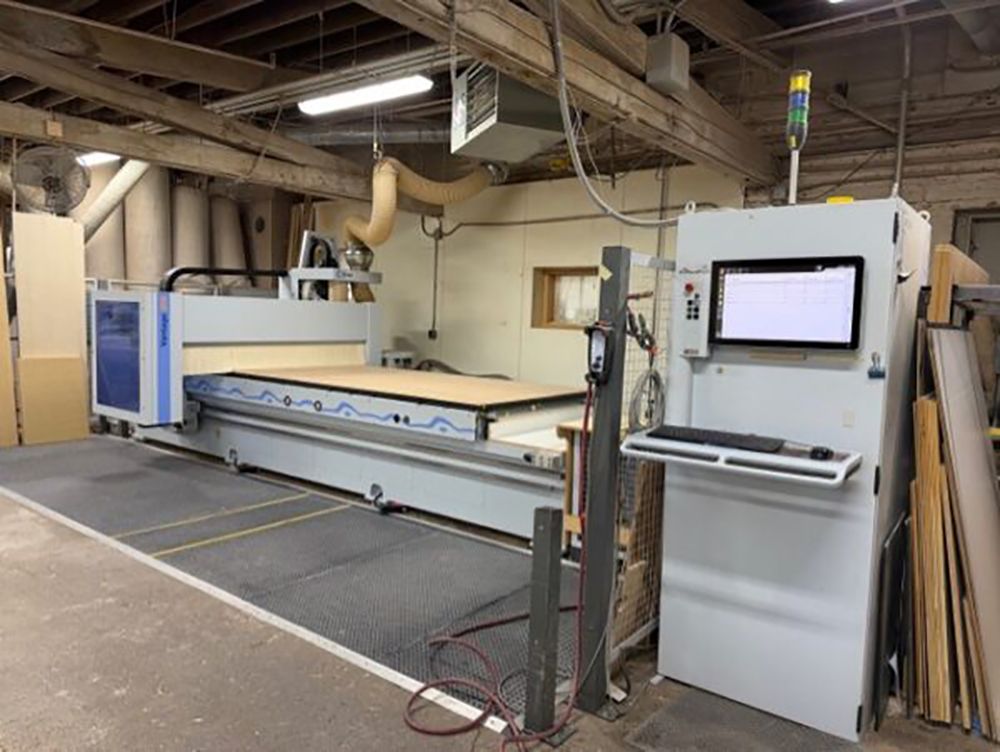

Weeke Vantedge 512

Flat Table Router
Router spindle; 13.4/16 hp
Spindle speed; 1,250 – 24,000 rpm (programmable)
Tool magazine capacity; 14 position carousel
Auto tool-length touch-off
Drill block; 12 position individually controlled
Vacuum pumps; 2 Busch Vacuum Pumps
Working length; 145.7″
Working width; 61″
Matrix phenolic table with grooves for vacuum pods
Vacuum system with 3 pumps mounted under machine table
Reference Pins; (10)
Max workpiece thickness; 100mm
Woodwop Programming
Operating voltage; 480v, 3ph without voltage transformer
AMP service at 480 volts; 57 amps
Duct extraction; 8″
