Weeke OPTIMAT BHX 500
EUROPE (Western and Northern)

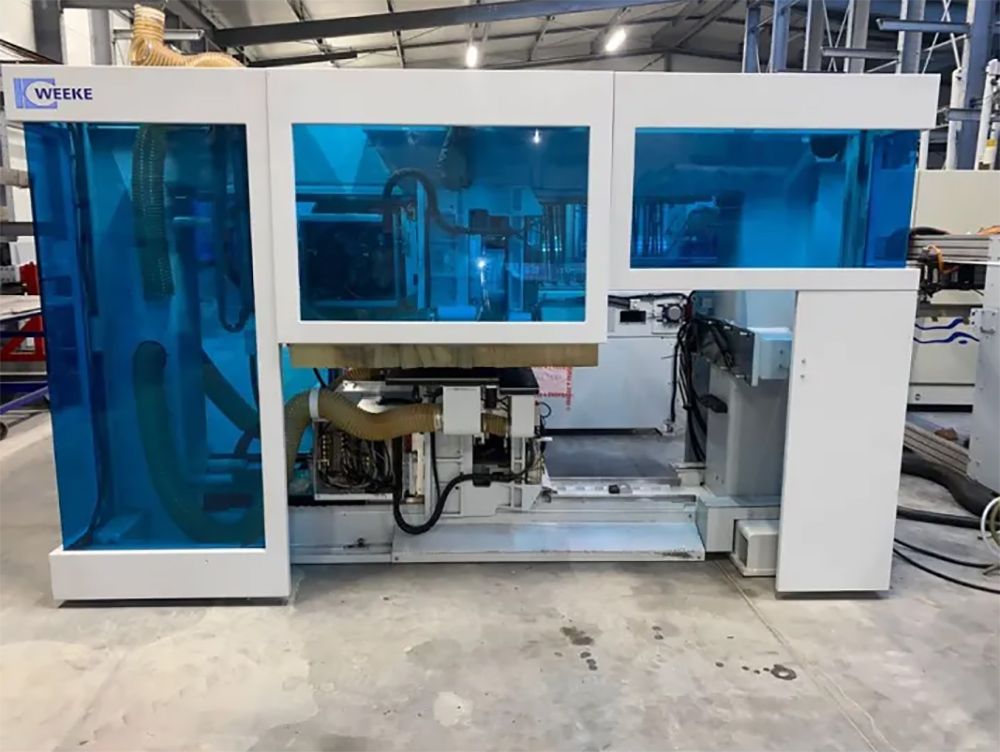

This machine is a fully functional CNC machining center suitable for furniture parts and wood processing, including the material loading “IGeL-ROBOT”.
Technical Specifications:
Material Loading: IGeL-ROBOT
Processing support: Upper and lower
Workpiece dimensions:
Length: 250 – 2,500 mm
Width: 70 – 1,000 mm
Thickness: 4 – 80 mm
Workpiece stacking: max. 2 pieces
Vector speeds:
X-axis (clamps): 138 m/min
Y-axis: 80 m/min
Z-axis: 50 m/min
Processing Units / Aggregates:
Vertical drilling: 2 V 21 HIGH SPEED 7,500 rpm
Horizontal drilling: 2H4X / 2Y
Grooving / Saw unit: N2 X-Y 90°
Milling unit: F2-ETP 6 kW
Barcode reader: Datalogic
Machine is fully operational and ready for production.
