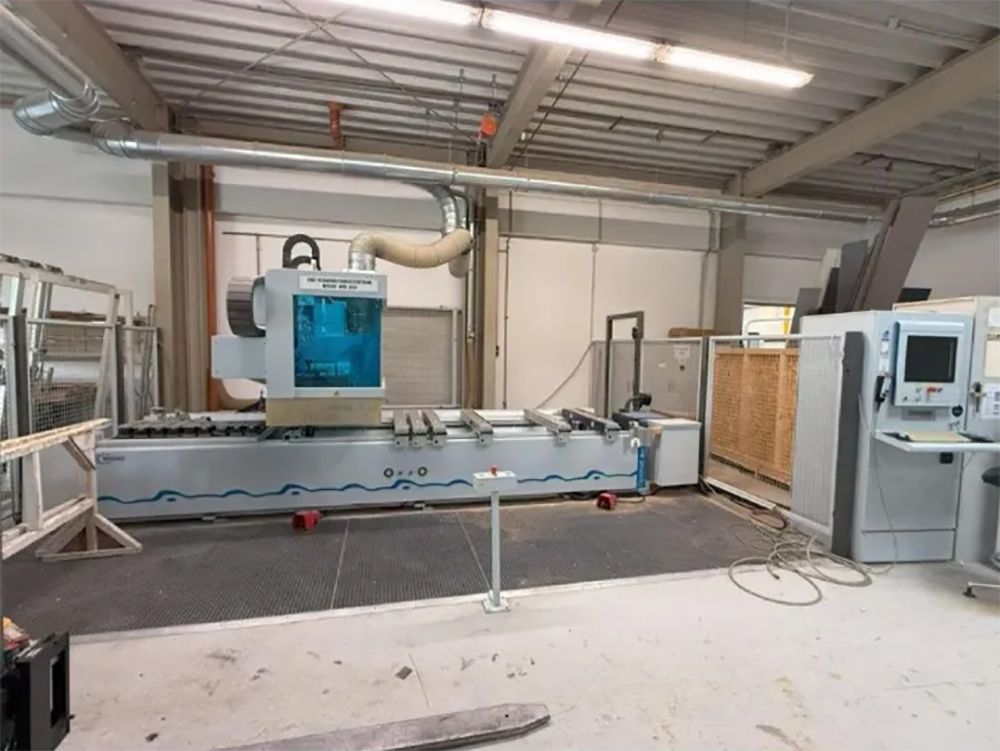

Weeke Venture 5 Optimat BHC 550

CNC Machining Center
The machine is fully functional and overhauled.
Comprehensive maintenance and modernization were carried out in 2024:
Main spindle renewed
New UPS and vacuum pump installed
Frequency converter replaced
The offer includes a Flex 5 unit (not required for standard operations).
The unit is non-functional but a repair offer is available.

Technical Specifications:
Dimensions & Weight:
Length: ~6,350 mm
Width: ~2,550 mm
Height: ~2,450 mm
Weight: ~6,500 kg

Working Area (X / Y / Z):
X ≈ 3,250 mm
Y ≈ 1,300 mm
Z ≈ 150 mm

Main Spindle:
Power: 12 kW, liquid-cooled
Tool holder: HSK-F63
Speed: 1,250 – 24,000 rpm, programmable

Drilling & Milling:
Vertical: 25 spindles, 32 mm pitch, depth 38/55 mm, max drill Ø 35 mm
Horizontal: X-direction 4 spindles, Y-direction 2 spindles, depth 38 mm, max drill Ø 20 mm
Grooving / Saw Unit: rotates 90° in XY, cut depth 30 mm, max 7,500 rpm, max tool Ø 1 mm

Workpiece Clamping & Table:
Pod-and-Rail or console table, 6 adjustable supports in X
LED position display
Vacuum pump ~100 m³/h, 12 vacuum suction cups or various tubeless systems

Tool Changer & Control:
14-position (X) and 8-position (Y)
Control: POWERCONTROL PC 85T, 17″ TFT
Software: WOODWOP 5.0, including MDE and production lists

Additional Features & Safety:
FLEX-5 interface (saw / mill / drill)
Tool picking function
Safety mats, safety fence/doors
Barcode scanner, UPS, CE certified
