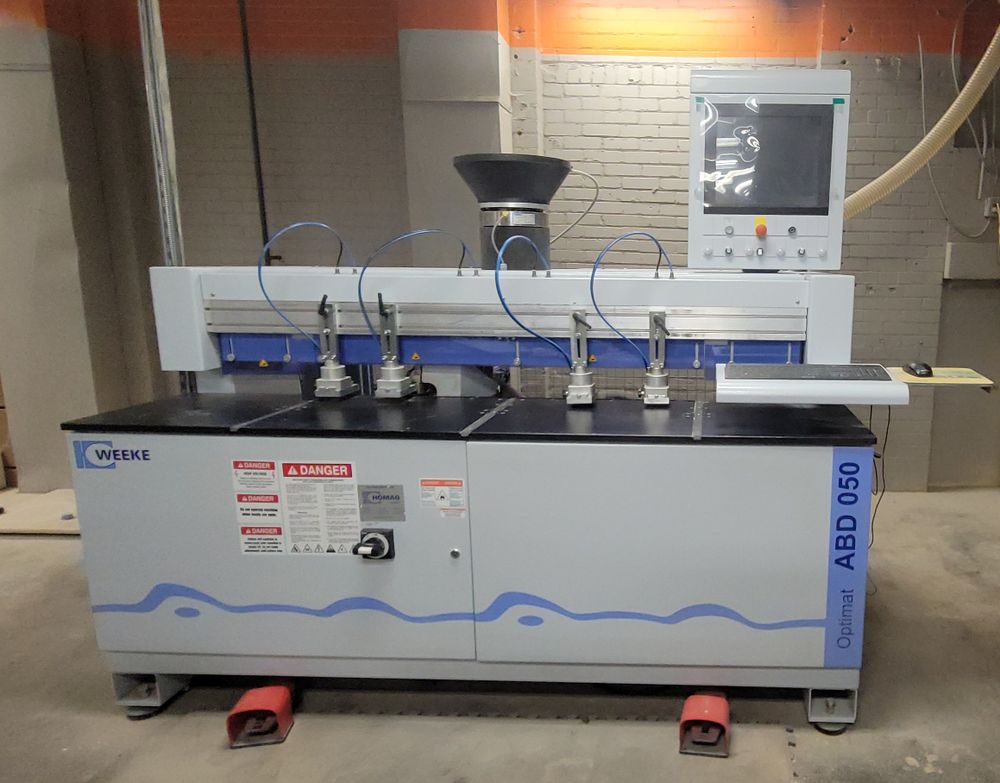

Homag, Weeke Optimat ABD050/12/NA

Condition: Used – Very Good Operating Condition
Machine Type: CNC Drill, Glue & Dowel Insertion Machine

Key Features:
CNC-controlled drill and dowel insertion machine
Horizontal drilling, glue injection, and dowel insertion in one operation
High-speed 7,500 RPM drilling spindle
Automatic glue application system
Automatic dowel insertion system
Industrial production design
Open-ended table configuration
Ideal for cabinet, furniture, and component manufacturing
HOMAG / Weeke industrial construction
Production-ready platform

Working Capacity:
Part Dimensions :
Maximum Part Length: 1,250 mm (49.22")
Minimum Part Length: 20 mm (0.79")
Maximum Part Width: 800 mm (31.50")
Minimum Part Width: 50 mm (1.97")
Maximum Part Thickness: 60 mm (2.36")
Minimum Part Thickness: 10 mm (0.39")
Maximum Part Length Using Center Stop: 600 mm (23.62")

Drilling & Dowel Insertion System
Horizontal Drilling Aggregate
Single horizontal drilling spindle
Spindle speed: 7,500 RPM
Drill shank diameter: 10 mm
Total drill length: 70 mm

Dowel Insertion System:
Automatic dowel insertion
Automatic dowel feeding system
Standard dowel sizes:
8 mm × 30 mm
8 mm × 35 mm

The machine performs drilling, glue application, and dowel insertion in a single automated cycle,
making it ideal for cabinet, furniture, and component production.

Glue Application System:
Integrated glue application system
Automated glue delivery during insertion cycle
Designed to improve assembly consistency
Clean and repeatable operation

Material Handling:
Open-ended work table design
Left and right referencing system
Center stop positioning system
Suitable for individual components and batch processing
Fast setup and repeatability for production environments

Machine Construction :
Heavy-duty industrial frame
Precision-guided machining system
Production-grade components
Designed for continuous manufacturing environments
HOMAG / Weeke quality construction

Electrical Specifications:
Verified from Nameplate
Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
Maximum Full Load Current: 7 Amps
Fuse Size: 16 Amps
Control Voltage: 24V
Largest Motor Current: 1.5 Amps
