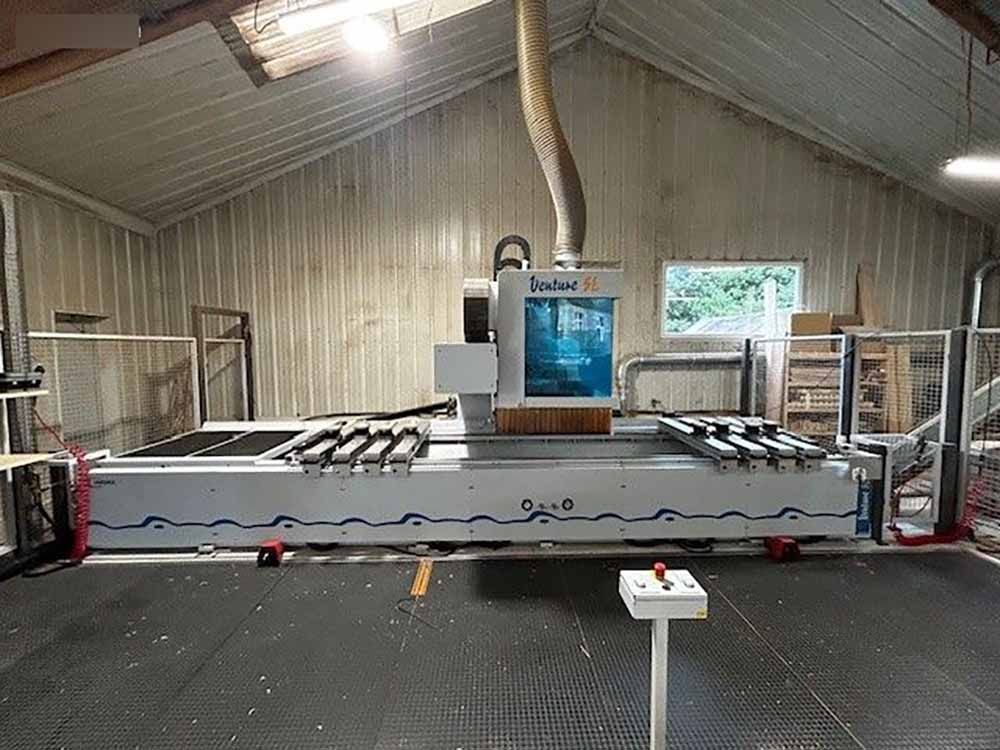

Homag, Weeke VENTURE 5L 4 Axis

4-AXIS MACHINING CENTER (CNC)
Commissioned June 2006
- Working table dimensions X = 4250mm * Y = 1300mm * Z = 150mm
- Pendulum work possible, working dimensions X = 1850mm x 2
- Number of bridges: 4 left and 4 right

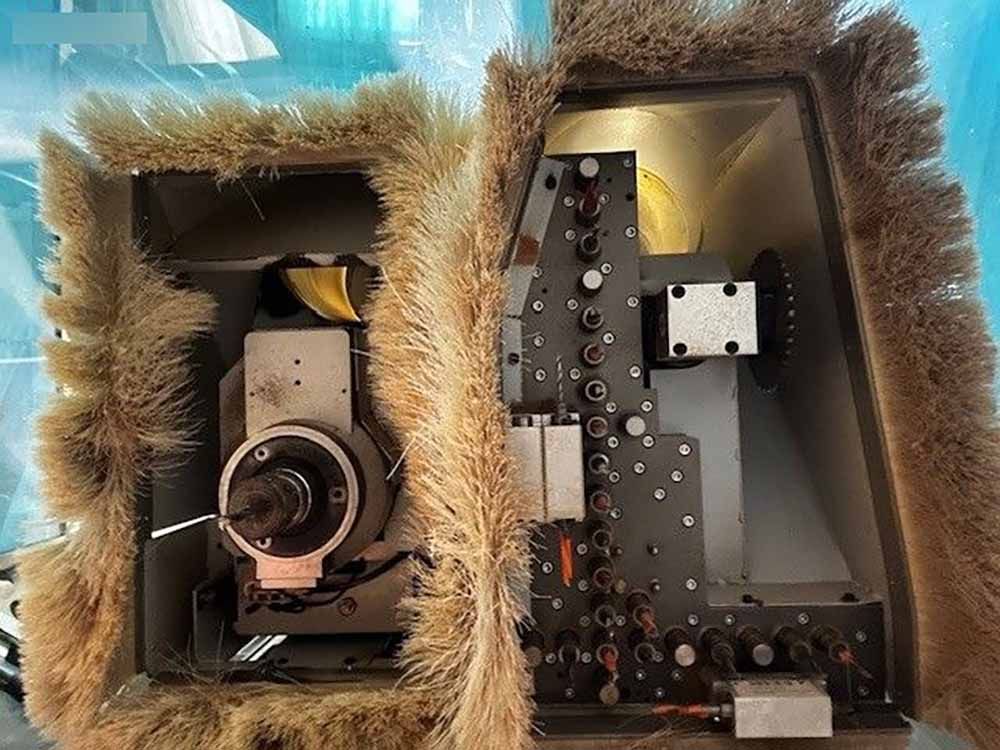

- Drilling unit: 32 spindles, including 4 spindles in X, 2 spindles in Y
- Machining spindle power: 12 kW

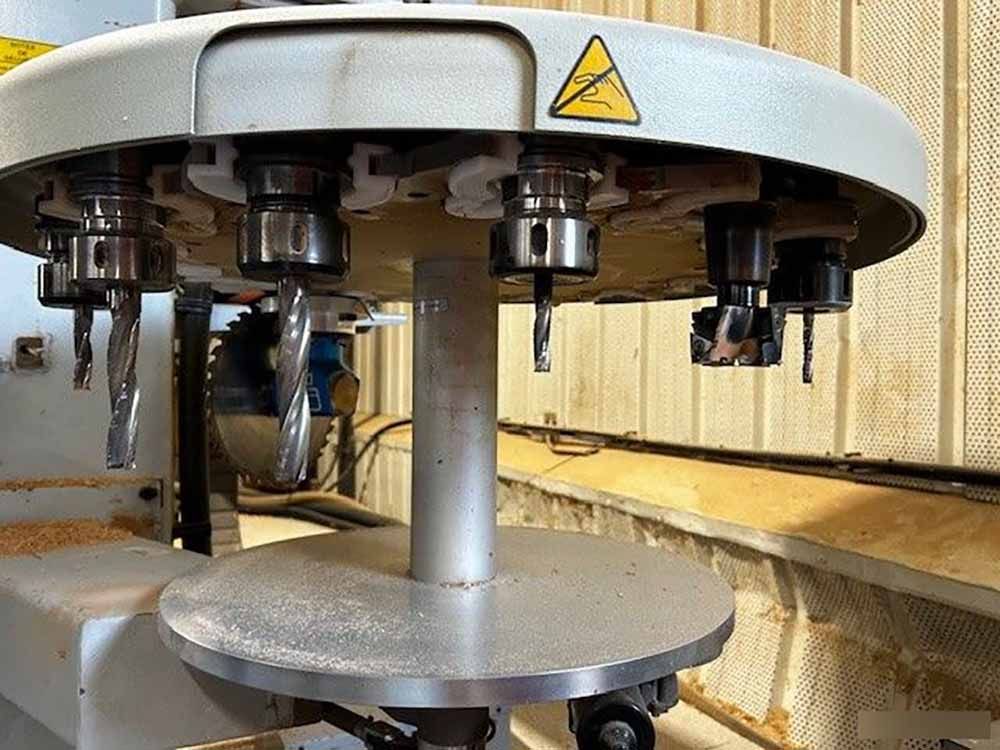

- Front tool changer (next to the machining spindle) with 8 positions
- Tool changers at the rear of the machine with 14 positions

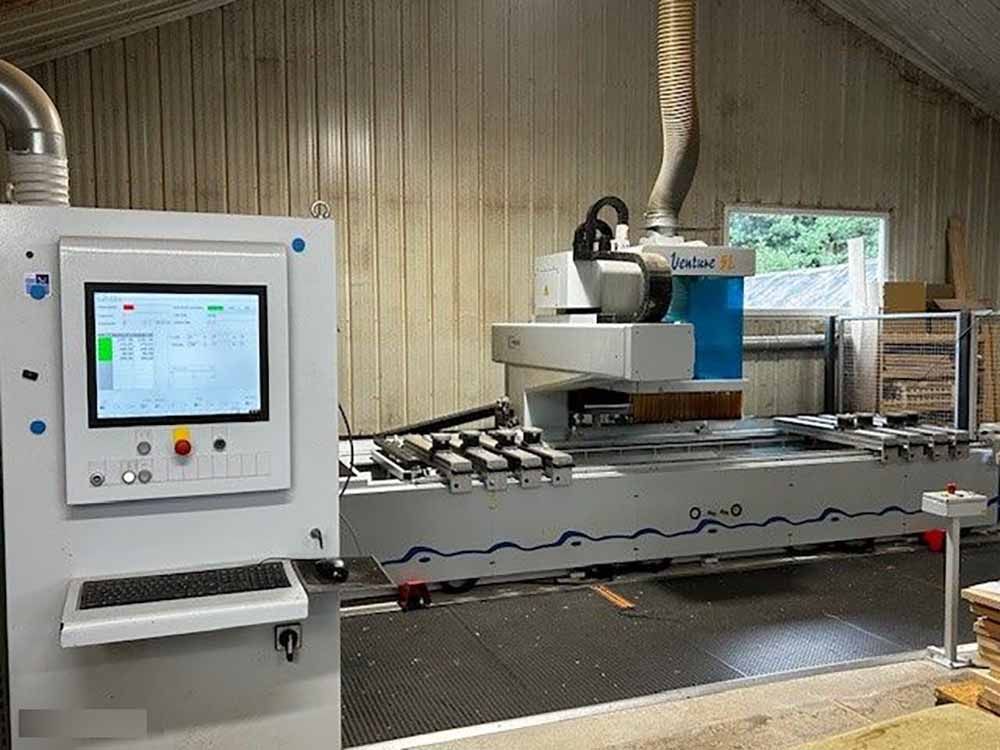

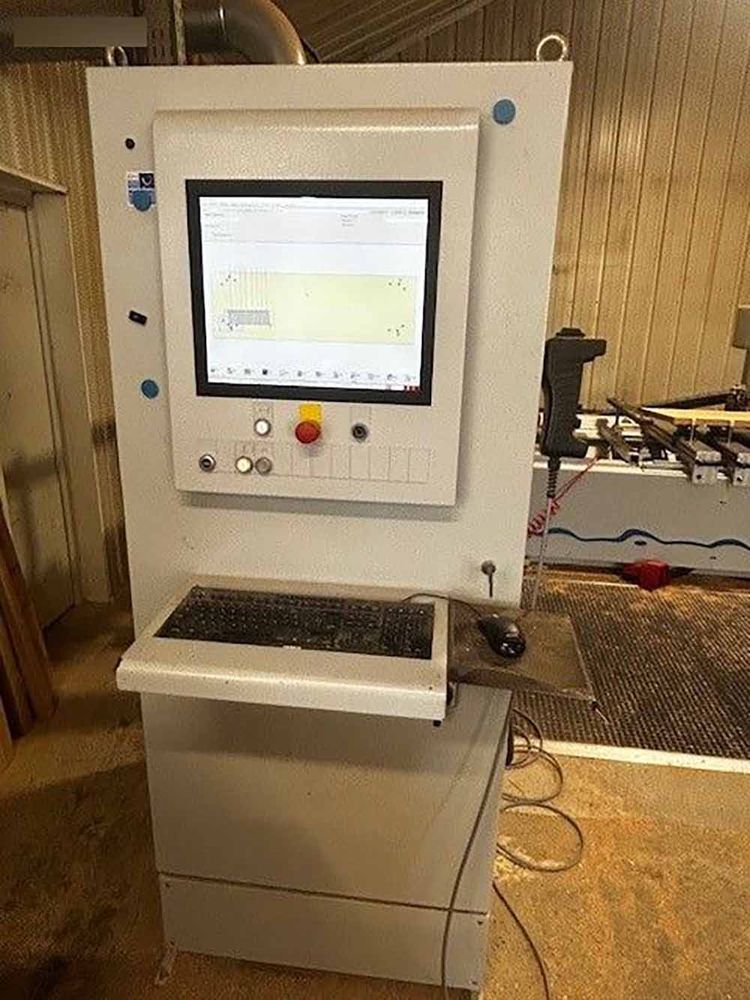

- WoodWop software: Version 8 / color screen / USB / internet connection
(The PC/software part was replaced in 2023, cost €8,250 excluding VAT)

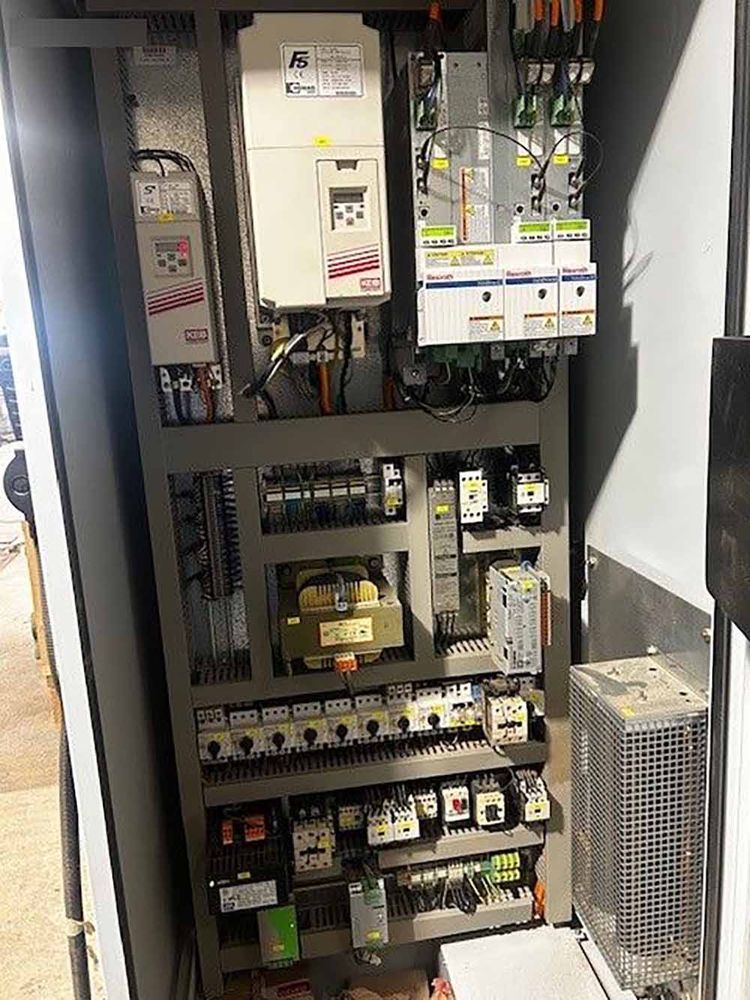

- Separate electrical cabinet

- Accessories included:

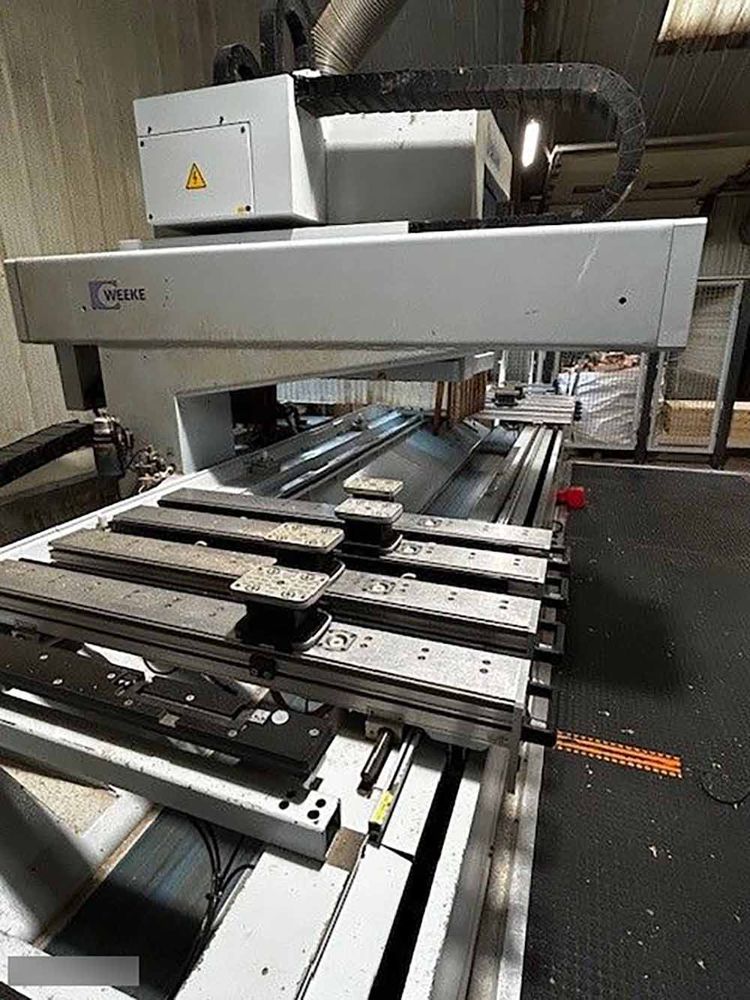

- 160x115 suction cups (8)
- 125x75 suction cups (6)
- 120x50 suction cups (2)
- Clamps (8)
- 3 aggregates (sawing/angle gear/planing tool holders)
- Machine in perfect working order except for two safety mats that need replacing.
