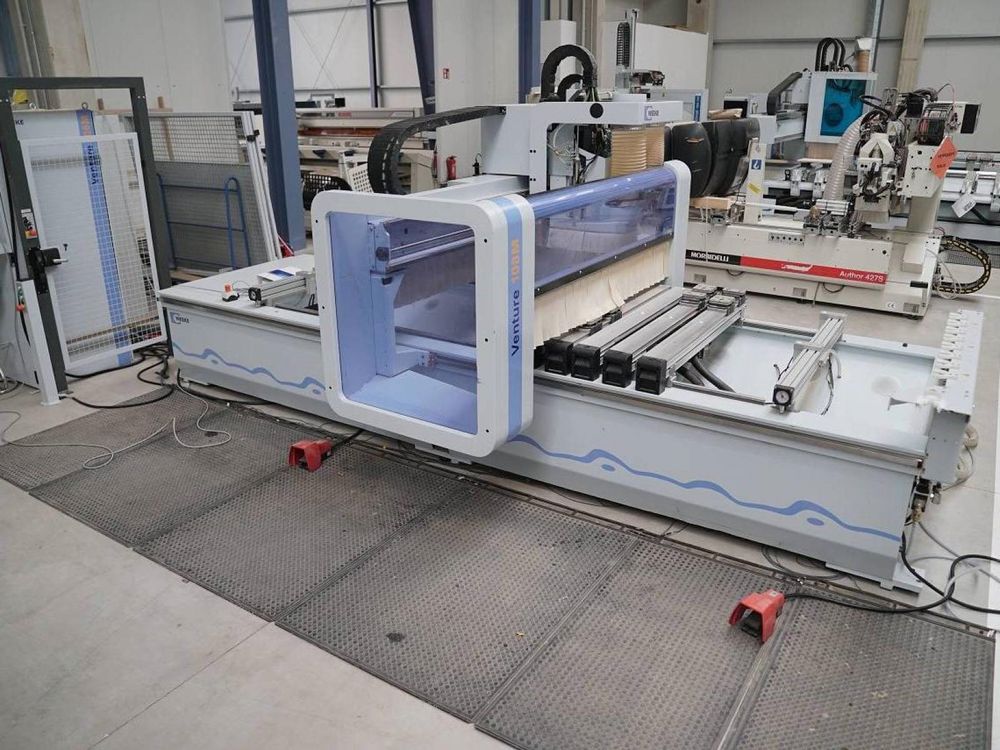

Homag, Weeke ВMG 111/VЕNТURE 108 M 5-axis
Ref :
2730422-15-MT
Condition :
Used
Manufacturer :
Homag, Weeke
Model :
ВMG 111/VЕNТURE 108 M
Nb Of Axis :
5-axis
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
RUSSIA and Central Asia
RUSSIA and Central Asia
Technical specifications:
Gantry type center
Working range along X axis 3130 mm
Working range along Y axis 1550 mm
Working range along Z axis 150 mm
5-axis electric spindle 9 kW
Max. rotation speed 24000 rpm
Electric spindle chuck HSK F63
Tool magazine 16 pos.
Drilling unit:
Vertical spindles 12 pcs.
Horizontal spindles 4 pcs. along X axis, 4 pcs. along Y axis
Rotary groove saw 0-90⁰
Traverse work table 6 pcs.
Vacuum pump 70 m3/hour
Lifting supports for loading large parts
Laser positioning device
HOMAG POWER CONTROL PC 85 control
Reads dxf format
HOMAG Flash interface
Automatic central lubrication
Electronic end position control
Safety device with sensor mats
CE safety standards
Full connection 17.5 kW
