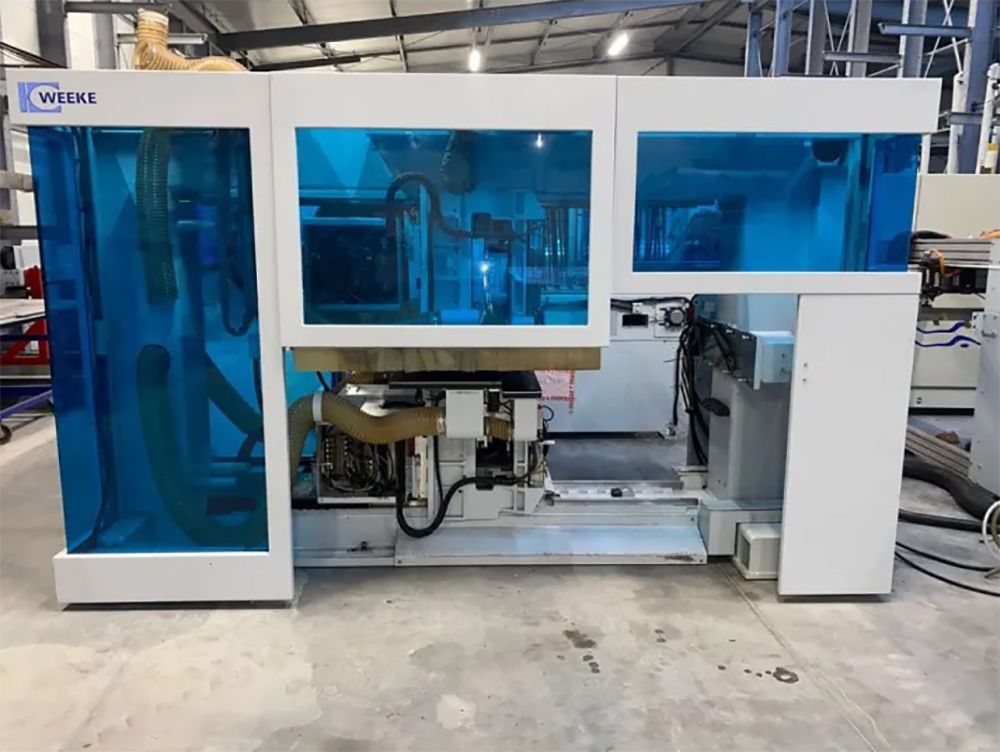

Weeke OPTIMAT BHX 500

The WEEKE OPTIMAT BHX 500 is a high-performance CNC machining center designed for wood and panel processing applications.
The machine is supplied including the IGEL-ROBOT automatic material loading system.
Upper and lower machining supports ensure flexible and efficient production.

Workpiece Dimensions:
Workpiece length: min. 250 – max. 2,500 mm
Workpiece width: min. 70 – max. 1,000 mm
Workpiece thickness: min. 4 – max. 80 mm
Workpiece stacking: max. 2 pieces

Speed & Axis Performance:
Vector speed:
X-axis (clamps): 138 m/min
Y-axis: 80 m/min
Z-axis: 50 m/min

Machine Configuration / Units :
Vertical Drilling Unit: 2V21 HIGH SPEED – 7,500 rpm
Horizontal Drilling Unit: 2H4X / 2Y
Grooving Saw Unit: N2 X-Y 90
Milling Unit: F2-ETP – 6 kW
Barcode Reader: Datalogic
Automatic Material Loading System: IGEL-ROBOT

Key Features :
High productivity with automatic loading
Upper and lower machining supports
High axis speeds for efficient processing
Reliable WEEKE technology for industrial production
Ideal for furniture and panel manufacturing
