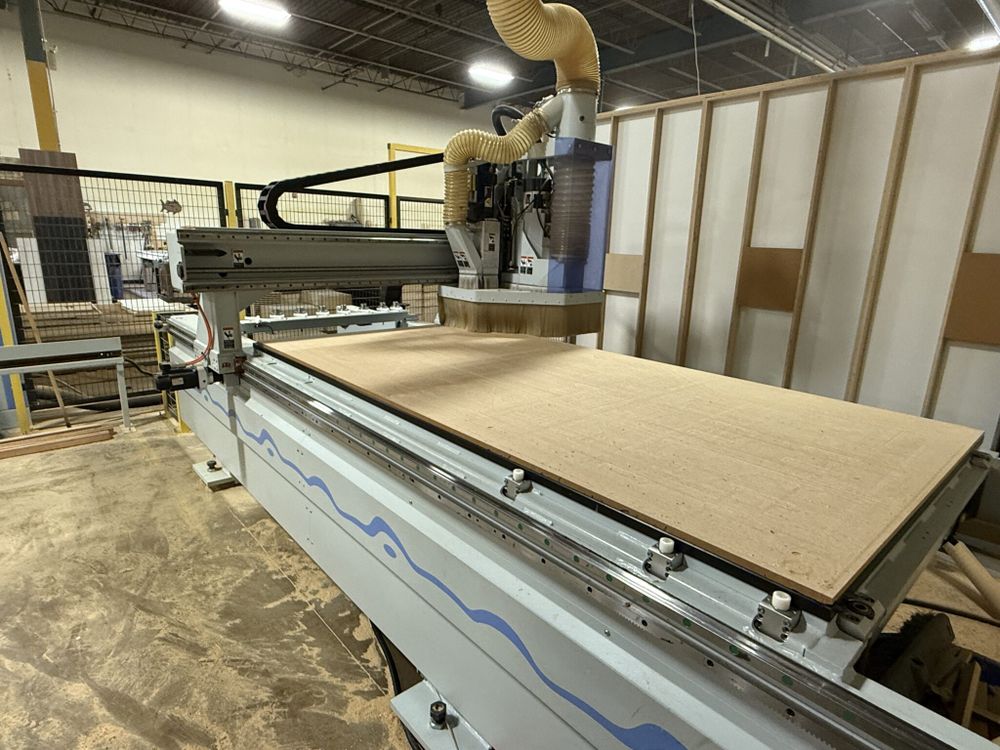

Weeke Vantech 480 DB

CNC Router
Router spindle; 12.0 hp
Spindle speed; 1,250 – 24,000 rpm’s
Tool magazine capacity; 7 position
Auto tool-length touch-off
Drill block; 7 position individually controlled
Vacuum pumps; 3 Becker Vacuum Pumps
Working length; 99″
Working width; 49″
Matrix phenolic table with grooves for vacuum pods
Vacuum system with 3 pumps mounted under machine table
Reference Pins (7) = 2@ table end and 3+2 @ the table sides
Max workpiece thickness; 100mm
Woodwop Programming
Operating voltage; 480v, 3ph without voltage transformer
AMP service at 480 volts; 50 amps
Duct extraction; 8″
