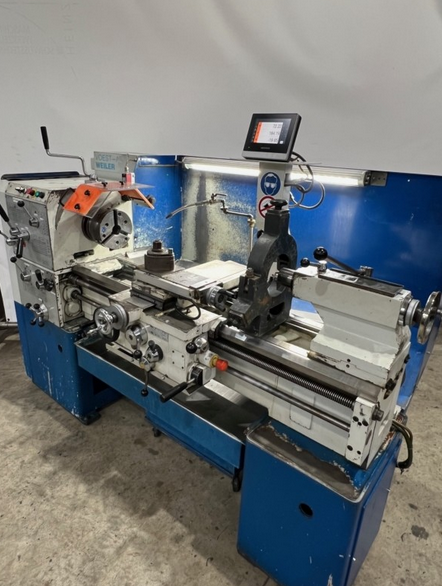

Weiler Engine Lathe 2000 RPM DA 210 /1000

WEILER DA 210 /1000

Turning Diameter 210 mm
Turning Length 1000 mm
Swing Diameter Over Bed Slide 435 mm
Centre Height 210 mm
Greatest Pass Round Over Bed 435 mm
Spindle Head DIN 55027 / DIN ISO 702-3
Spindle Bore 52 mm
Turning Speeds 44 - 2000 RPM
Transmission Ratio 12
Feed per Revolution 0.036 - 2 mm
Diameter of Quill 65 mm
Quill Stroke 120 mm
Taper Bore DIN 228 MT4
Total Power Requirement 5.5 kW
Lead Screw and Feed Screw Cover
Brake for Main Spindle
Toolmaker Precision According to DIN 8605
High Drive Power and High Torque on the Main Spindle
Large Thread Cutting Range
Convenient Operation
Digital Position Display HEIDENHAIN ND 7013
3-Axis Display for Bed, Cross Slide, and Top Slide
Tool Memory for 16 Tools with One Reference Point per Axis
Sum Button for Z and Zo
Inch/Metric Switchable
Plane Path X as Radius or Diameter Display
Display Resolution Up to 1 µ
Taper Calculator
LED Machine Light
Coolant Device
