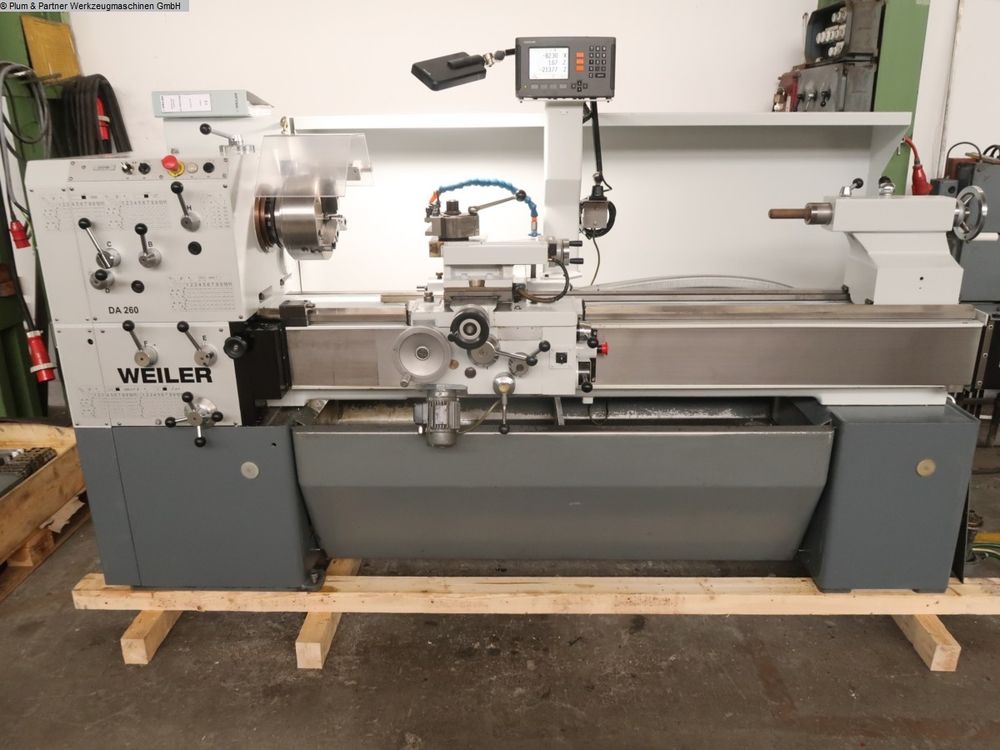

Weiler Engine Lathe 2000 rpm DA 260 x 1500 / Digi,

WEILER DA 260 x 1500 / Digi,
2007

turning diameter over bed: 535 mm
turning diameter over slide rest: 345 mm
turning length: 1500 mm
centre height: 260 mm
turning diameter in the slot: 560 mm
bed width: 330 mm
face slide travel: 330 mm
travel of upper support: 120 mm
spindle bore: 71 mm
spindle head: DIN 55027, size 6
speeds: 12 steps, 44–2000 rpm
longitudinal feeds: 0.072–4 mm/rev
face feeds: 0.036–2 mm/rev
tailstock quill taper: MT5
tailstock quill stroke: 120 mm
metric threads: 0.5–28 mm
inch threads: 56–1 TPI
max workpiece weight without tailstock: 200 kg
max workpiece weight between centers: 800 kg
connected load: 11.5 kW
total power requirement: 7.5 kW
machine weight: approx. 1.5 t
machine dimensions: approx. 2.25 × 1.25 × 1.45 m
declaration of conformity: CE
condition: ready for operation
electrical system: 400 Volt
chuck: Röhm Duro 250
set of jaws for chuck: 6 pcs
Multifix steel holder: size B
quick-change holders: 4 pcs
spindle brake
chuck guard with switch
3-axis digital readout: Heidenhain ND 780
rear chip guard
machine light
separate coolant system
bed stop
roller cover for leadscrew and feedshaft
carriage rapid traverse
