1/1

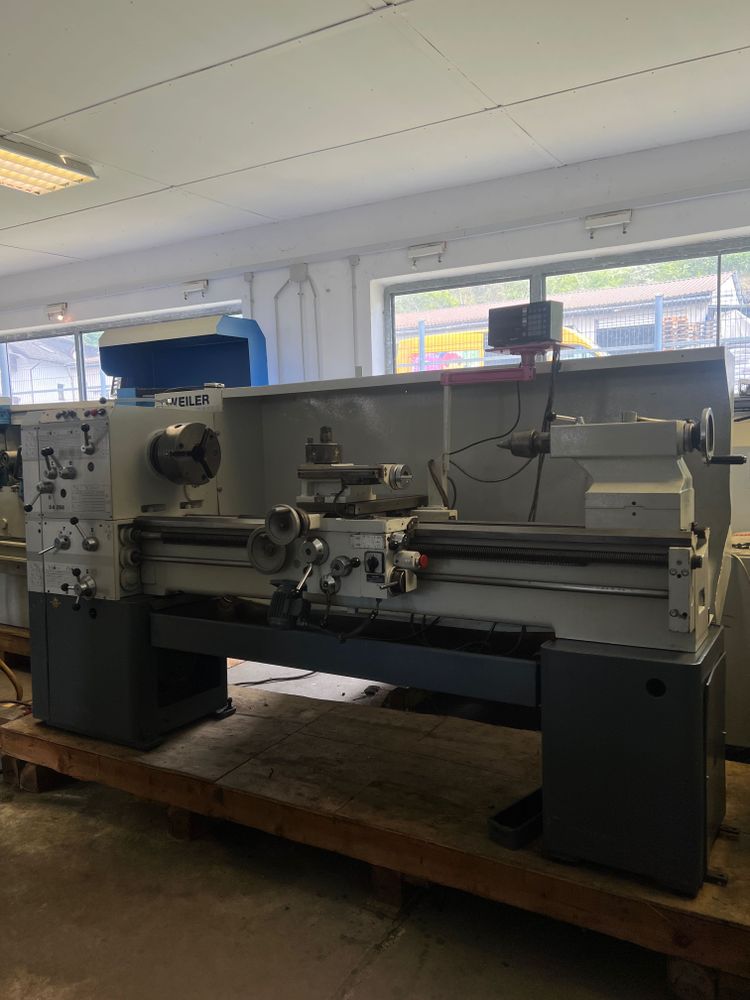

Weiler Engine Lathe 2000 rpm DA 260
Ref :
2746054-3-MT
Condition :
Used
Manufacturer :
Weiler
Type :
Engine Lathe
Spindle Speed :
2000 rpm
Model :
DA 260
Year(s) :
1988
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control Conventional
Condition Very good condition
Weight 1800 kg
Turning diameter over bed 535 mm
Turning diameter over support 345 mm
Spindle bore 71 mm
Workpiece length 1500 mm
Center height 260 mm
Spindle speed range 44 - 2000 rpm
Longitudinal feeds 0.072 - 4 mm/rev
Cross feeds 0.036 - 2 mm/rev
Bed width 330 mm
Cross slide travel 330 mm
Top slide travel 120 mm
Tailstock taper MK 5
Metric threads 0.5 - 28 mm
Inch threads 56 - 1 TPI
Max workpiece weight free turning 200 kg
Max workpiece weight between centers 800 kg
Power requirement 11.5 kW
Machine weight approx. 1500 kg
