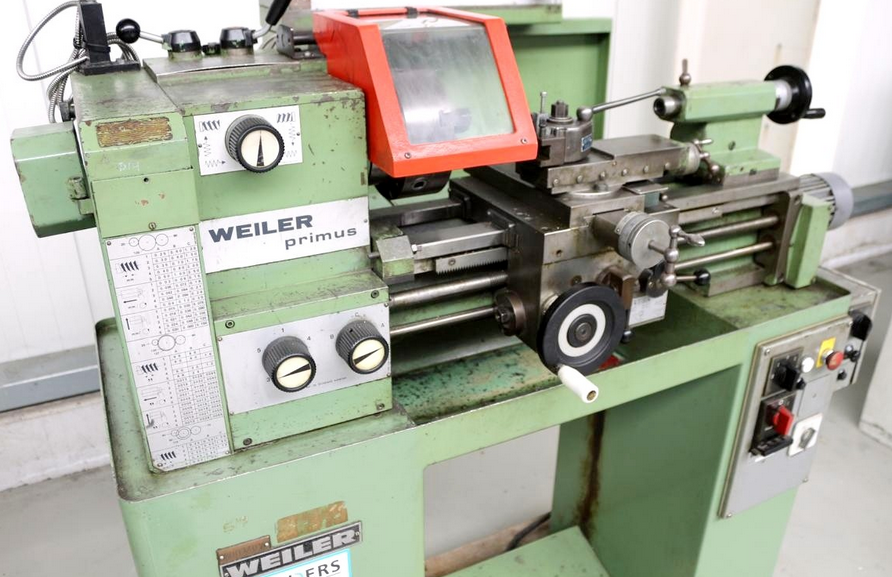

Weiler Engine Lathe 3,000 RPM PRIMUS LZ

Ref : 2801373-3-AW

Condition : Used

Manufacturer : Weiler

Type : Engine Lathe

Spindle Speed : 3,000 RPM

Model : PRIMUS LZ

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Turning length: 450 mm
Turning diameter over bed: 245 mm
Turning diameter over slide: 135 mm
Spindle bore: 23 mm
Tool adapter: DIN 55021-4
Tailstock taper: MK 2
Tailstock quill travel: 80 mm
Spindle speed range: 60 - 3,000 RPM
Bed width: 155 mm
Motor power: 1.2 / 1.5 kW
Voltage: 380 V
2-axis digital readout D60-2V
Three-jaw chuck
Folding chuck guard
Chuck key
Multifix tool holder with 3 inserts
Sliding tailstock
Front-mounted control panel
Infinitely variable feeds for cross and compound slide
Pole-changing drive motor
Machine base frame
Rear chip guard
Collet holder and collets
Emergency stop button
Hardened and ground bed
Weight: 340 kg
Dimensions: 1200 x 650 x 1330 mm
